Electrical Connections continued
8. Motor rotation was set at the factory.
9. The conveyor drive motor rotation is indicated by a red arrow located on the side of
the motor.
10. The single phase drive motor (208-240V only) rotation must be changed at the
drive motor junction box.
11. Three phase drive motor (480-575V) rotation must be reversed in the control
cabinet.
12. Reverse the L1 and L2 wires on the output side of the dishwasher Main Terminal
Block (MTB) located inside the top-mounted control cabinet.

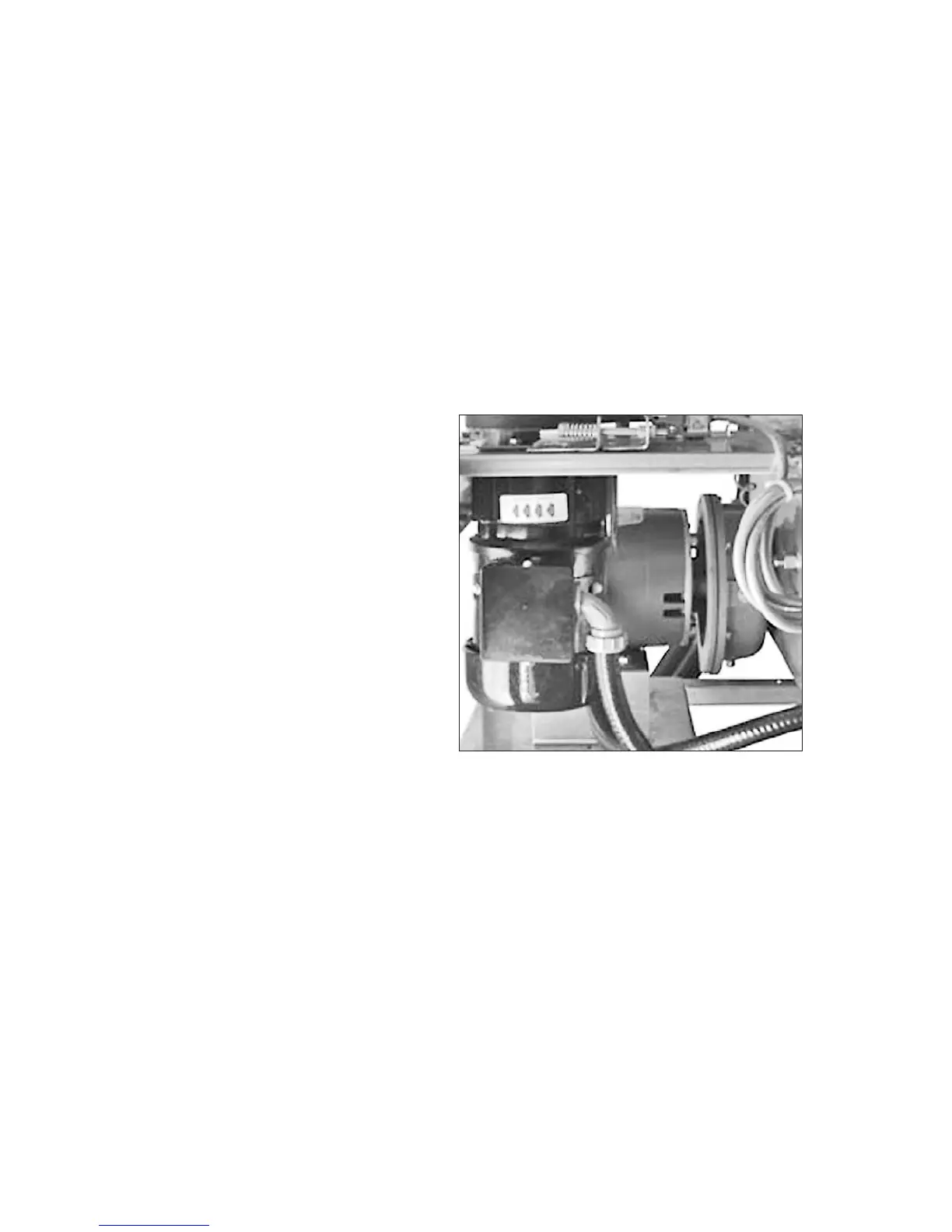

The photograph to the right shows
the conveyor drive motor with its
direction arrow.
A wash pump/motor assembly can be
seen in the background.
