Controls and Features
Rev 41152-20100413 E 5
Controls and Features
Read this owner’s manual before operating your generator. Familiarize yourself with the location
and function of the controls and features. Save this manual for future reference.

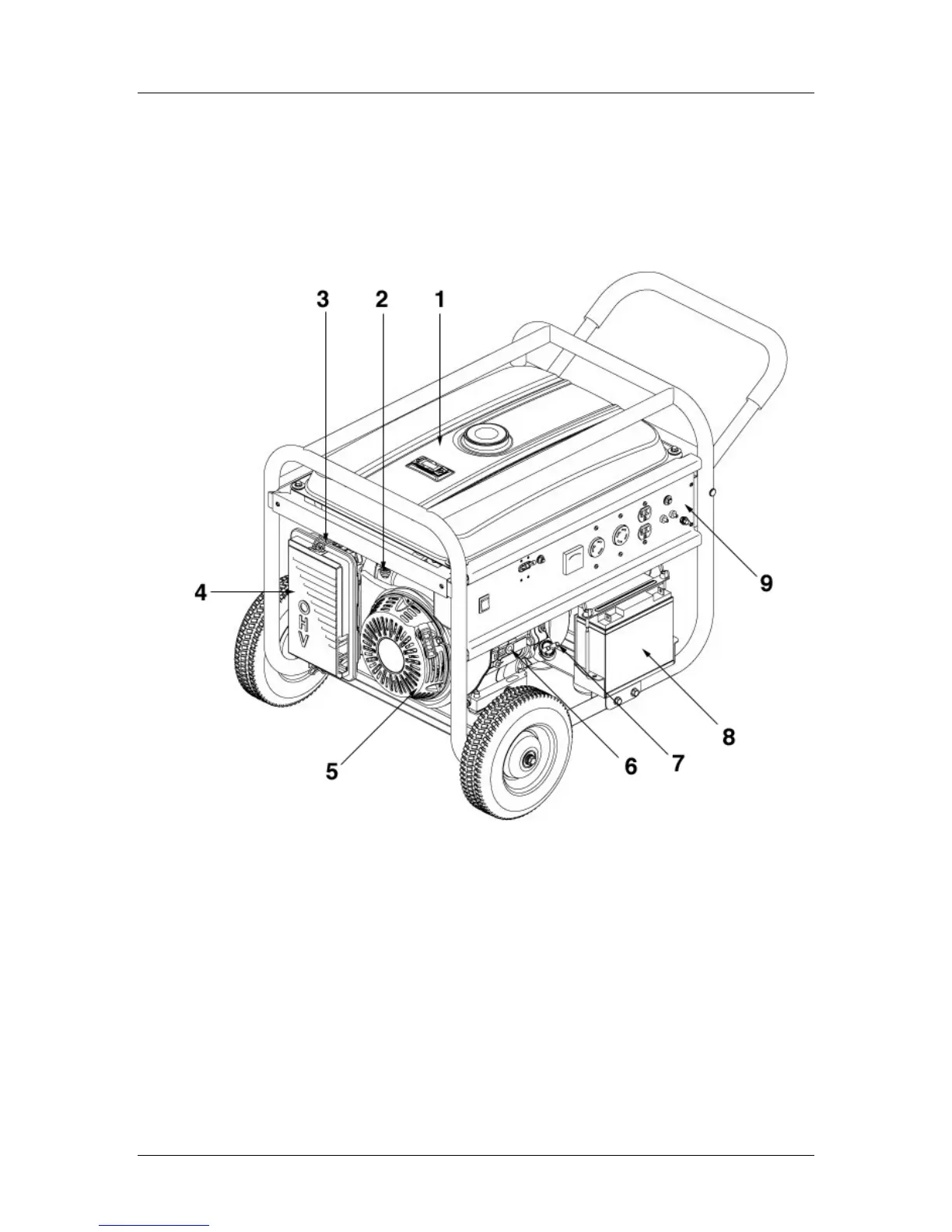

Generator
(1) Fuel Tank – 6.5 gallon (25 L) capacity
fuel tank.
(2) Fuel Valve – Turn this valve to the
“On” position to supply fuel to the engine.
(3) Choke Lever – Used to start the engine
(4) Air Cleaner – Protects the engine by
filtering dust and debris from the intake air.
(5) Recoil Starter – Used to start the
engine
(6) Low Oil Sensor – Senses the level of
oil in the crankcase and shuts the engine
down if the level falls too low.
(7) Oil Filler Cap – Check and fill engine
oil level.
(8) Battery – Used to start the engine.
(9) Power Panel – See “Power Panel”
