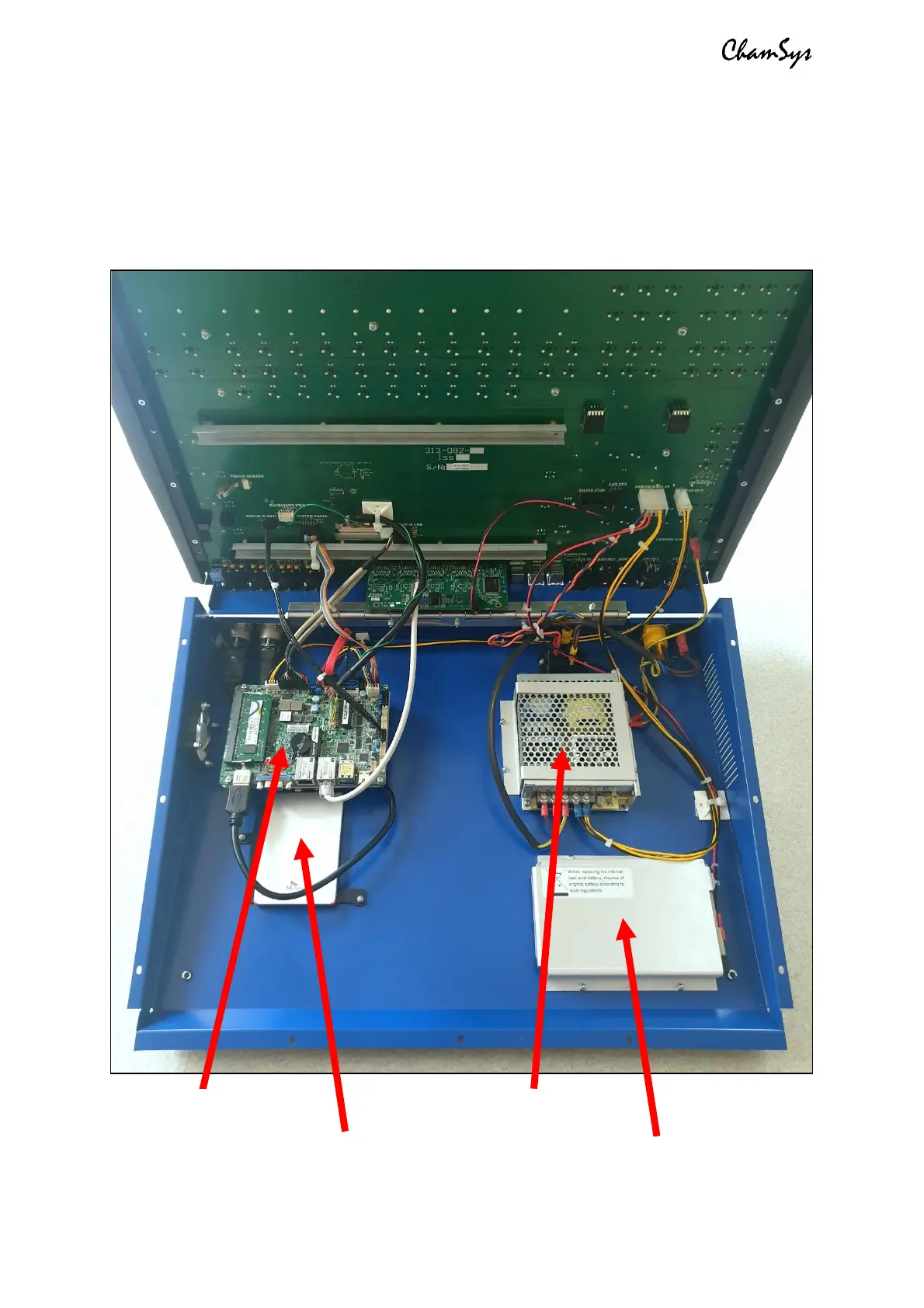

MQ80 base components:
Once screws are removed, hold the base of the console and extrusions together and turn
the console back over. The front of the console can now be lifted from the front to give
access to the inside of the console. Most of the user serviceable parts are in the base of
the console, as pictured below.
