3.3 Brief introduction of power supply
Chapter4 The chassis frame diagram, mainboard power supply systems,
mainboard interface definition
This chapter mainly introduce the chassis frame diagram, power supply system, interface definition

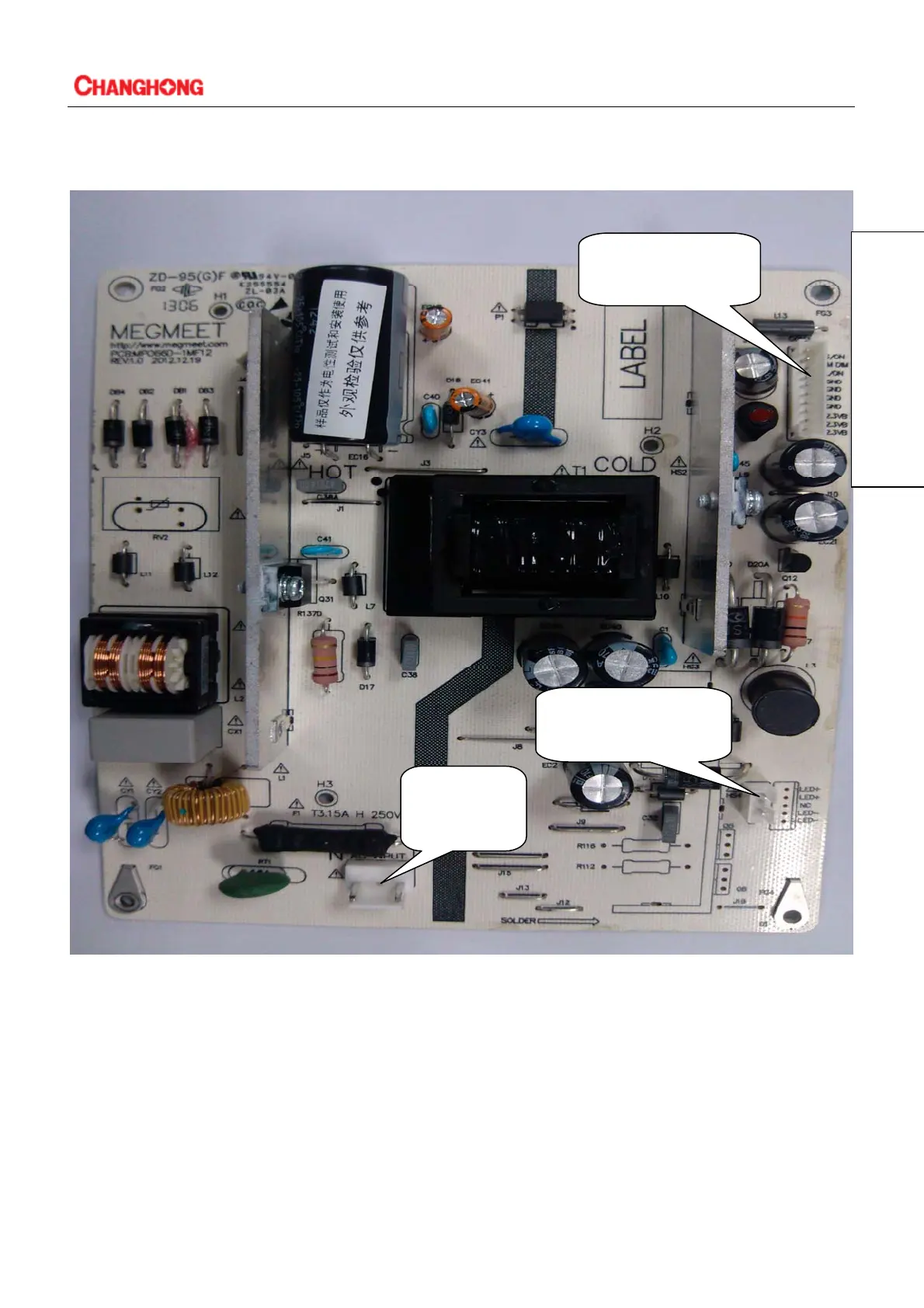

Use for mainbord
power supply.
PS-ON
DIM
BL-ON
GND
GND
GND
GND
12V
12V
12V
Use for LED backlight
power supply.
AC input
AC100-240V
50/60HZ
