Changhong Electric LED32HTC2000E - Power Supply System; The Composition and Distribution of the TV Power Supply

2.5V

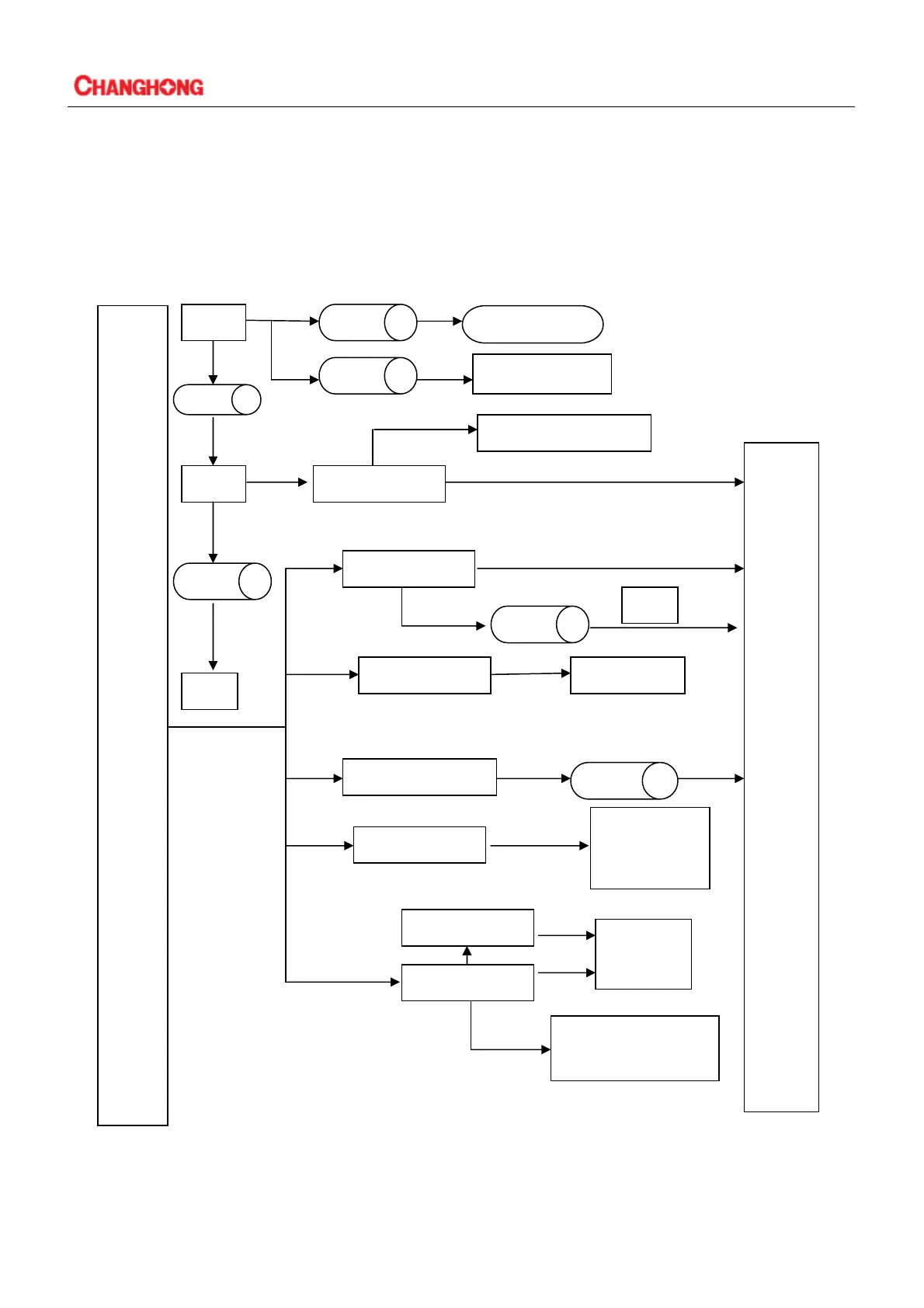

4-1 Power supply system
Power board has two kinds of output voltage: +12V
4-1-1 The composition and distribution of the TV power supply
U200 MST308BT
CON801
Q810 12VU
LVDS
POWER
U700 TPA3110D
L713
U001 LDO-3.3V
A002
SI-TUNER
DT21WN-2A-E
U804 LDO-3.3V
U205 FLASH
Memory
5VA
U805 LDO-3.3V
U808 LDO-1.5V
U809 DC-DC 1.15V
L805A
U201 DDR3
D802
U806
5VU
UT002 LDO-3.3V
UT003 LDO-1.2V
UT001
MSB101A
UT006
FLASH Memory
Q812
