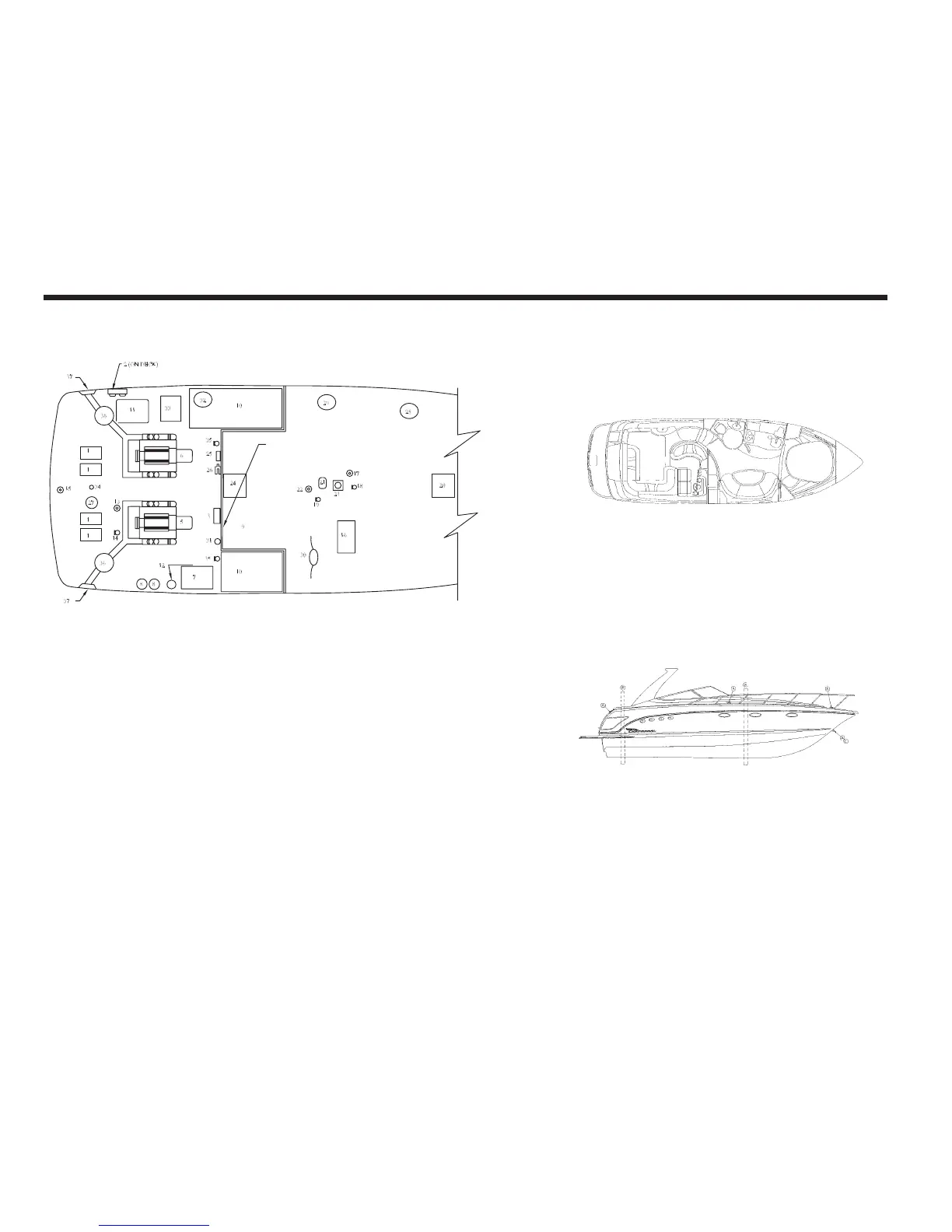

TYPICAL SIGNATURE 350 V-DRIVE ENGINE COMPARTMENT
1. Batteries (4) 20. Fresh Water Tank
2. Battery Selector Switches 21. Water Pump and Filter
3. Battery Charger 22. Forward Bilge Pump
5. Starboard Engine 23. Sump Pump
6. Port Engine 24. Holding Tank
7. Generator 25. Macerator (optional)
8. Blowers 26. Y-Valve (optional)
9. Bulkhead 27. Fire Extinguishing System
10. Fuel Tank 28. Galley Sink
11. Water Heater with Heat Exchanger 29. Head Sink
12. Generator Muffler 30. Steering Helm
13. Generator Sea Strainer 31. Euro Manual Pump
14. Generator Seacock 32. Cockpit Galley Sink
15. Aft Bilge Pump 33. Vacuum Flush Tank
16. Air Conditioner 34. High Water Bilge Alarm
17. Air Conditioner Sea Pump 35. Engine Seacock & Strainer
18. Air Conditioner Sea Strainer (V-Drive)
19. Air Conditioner Seacock 36. Engine Muffler
37. Exhaust Tip
SIGNATURE 350 DECK PLAN
SIGNATURE 350 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
Figure 3.8 Signature 350 V-Drive
