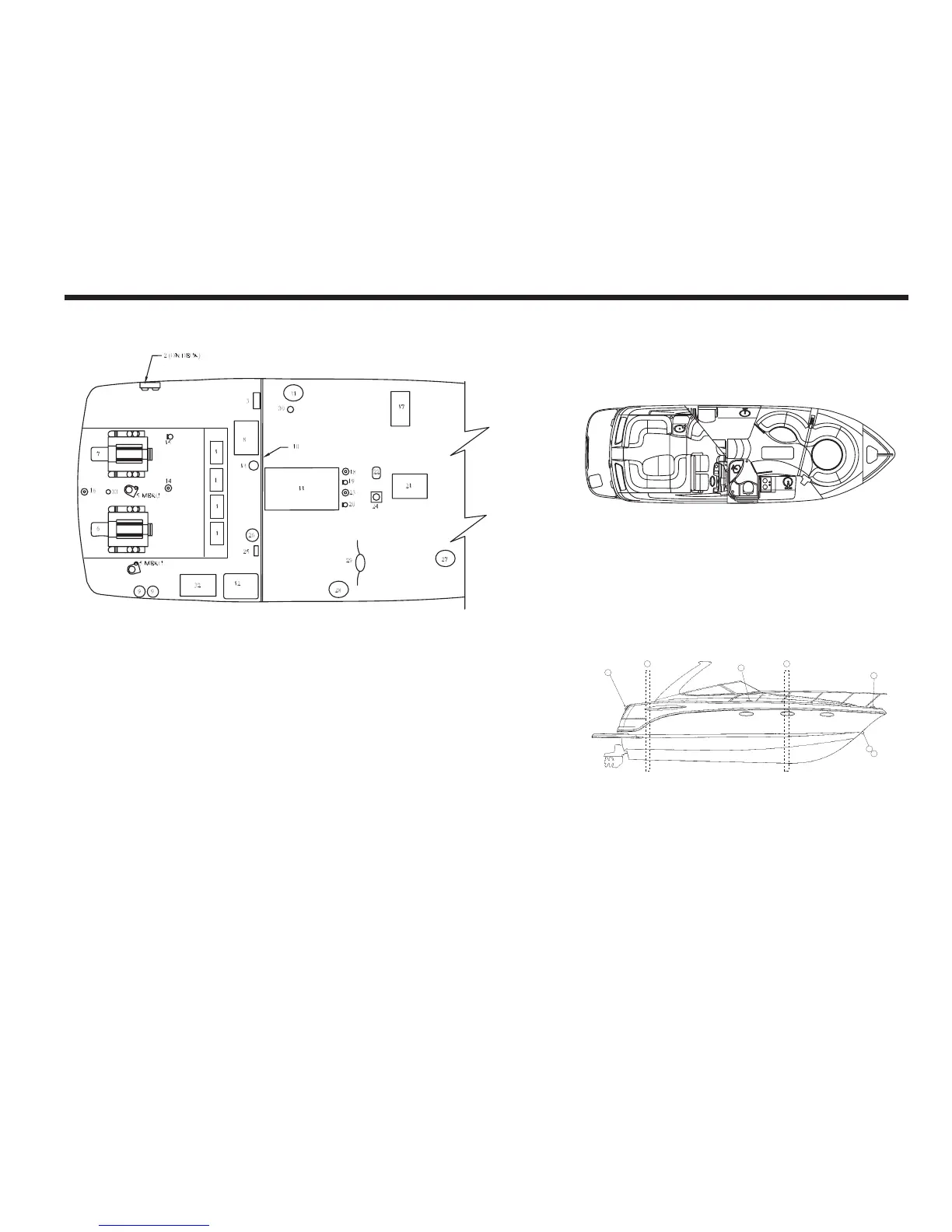

TYPICAL SIGNATURE 330 ENGINE COMPARTMENT
1. Batteries (4) 18. Air Conditioner Sea Pump
2. Battery Selector Switches 19. Air Conditioner Sea Strainer
3. Battery Charger 20. Air Conditioner Seacock
5. Lower Unit Trim Pump Reservoir (Merc) 21. Fresh Water Tank
6. Starboard Engine 22. Water Pump And Filter
7. Port Engine 23. Forward Bilge Pump
8. Generator 24. Sump Pump
9. Blowers 25. Macerator (optional)
10. Bulkhead 26. Fire Extinguishing System
11. Fuel Tank 27. Galley Sink
12. Water Heater With Heat Exchanger 28. Head Sink
13. Generator Muffler 29. Steering Helm
14. Generator Sea Strainer 30. Euro Manual Pump
15. Generator Seacock 31. Cockpit Galley Sink
16. Aft Bilge Pump 32. Vacuum Flush Tank
17. Air Conditioner 33. High Water Bilge Alarm
SIGNATURE 330 DECK PLAN
SIGNATURE 330 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
