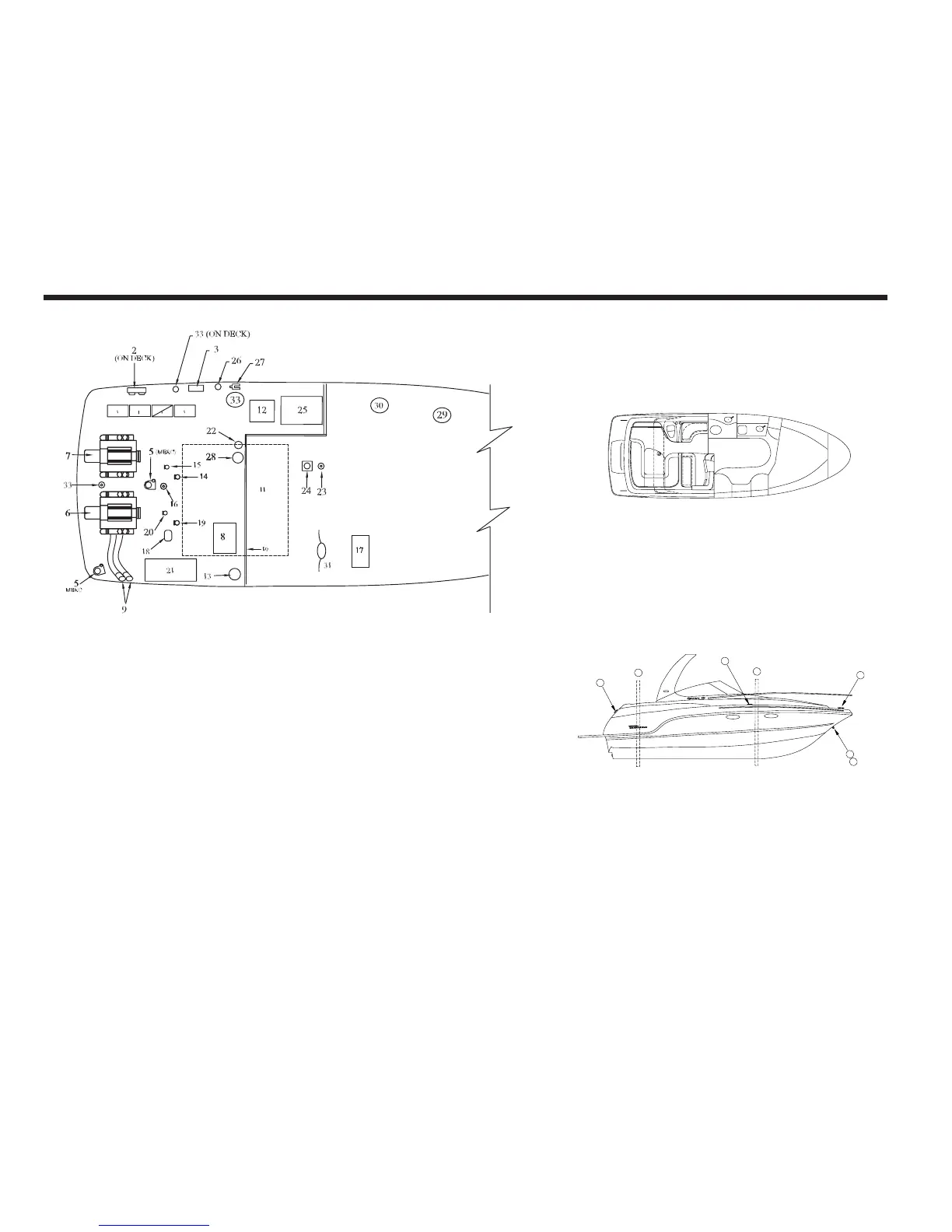

SIGNATURE 310 ENGINE COMPARTMENT
1. Batteries (4) 17. Air Conditioner (optional)
2. Battery Selector Switches 18. Air Conditioner Sea Pump (optional)
3. Battery Charger 19. Air Conditioner Sea Strainer (optional)
5. Lower Unit Trim Pump Reservoir (Merc) 20. Air Conditioner Seacock (optional)
6. Starboard Engine 21. Fresh Water Tank
7. Port Engine 22. Water Pump And Filter
8. Generator (optional) 23. Forward Bilge Pump
9. Bilge Blowers 24. Sump Pump
10. Bulkhead 25. VacuFlush System
11. Fuel Tank 26. Macerator (optional)
12. Water Heater With Heat Exchanger 27. Fire Extinguishing System
13. Generator Muffler (optional) 28. Galley Sink
14. Generator Sea Strainer 29. Head Sink
(optional) 30. Steering Helm
15. Generator Seacock (optional) 31. Euro Manual Pump
16. Aft Bilge Pump 32. Cockpit Galley Sink
33. High Water Bilge Alarm
SIGNATURE 310 DECK PLAN
SIGNATURE 310 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
