Figure 3.11 Signature 290

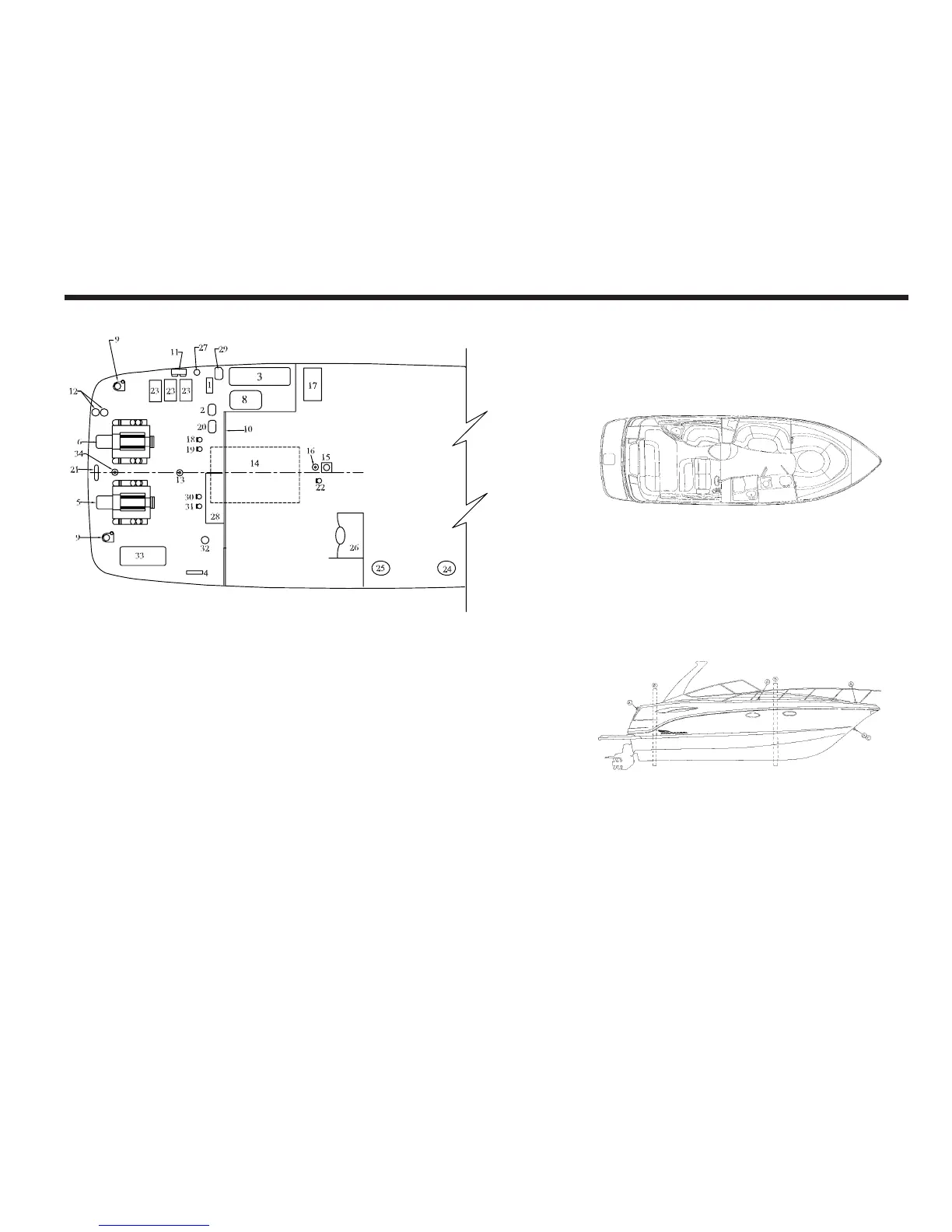

SIGNATURE 290 DECK PLAN
SIGNATURE 290 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
SIGNATURE 290 ENGINE COMPARTMENT
1. Battery Charger 18. Air Conditioner Sea Strainer (optional)
2. Water Pump and Filter 19. Air Conditioner Seacock (optional)
3. Fresh Water Tank 20. Air Conditioner Sea Pump (optional)
4. Macerator (optional) 21. Fire Extinguishing System
5. Starboard Engine 22. Head Seacock
6. Port Engine 23. Batteries (3)
8. Water Heater with Heat Exchanger 24. Galley Sink
(Merc) 25. Head Sink
9. Lower Unit Trim Pump Reservoir 26. Steering Helm
10. Bulkhead 27. Euro Manual Pump
11. Battery Selector Switches 28. Generator (optional)
12. Bilge Blowers 29. Cockpit Sink
13. Aft Bilge Pump 30. Generator Seacock (optional)
14. Fuel Tank 31. Generator Sea Strainer (optional)
15. Sump Pump 32. Generator Muffler (optional)
16. Forward Bilge Pump 33. VacuFlush System
17. Air Conditioner (optional) 34. High Water Bilge Alarm
