3-21

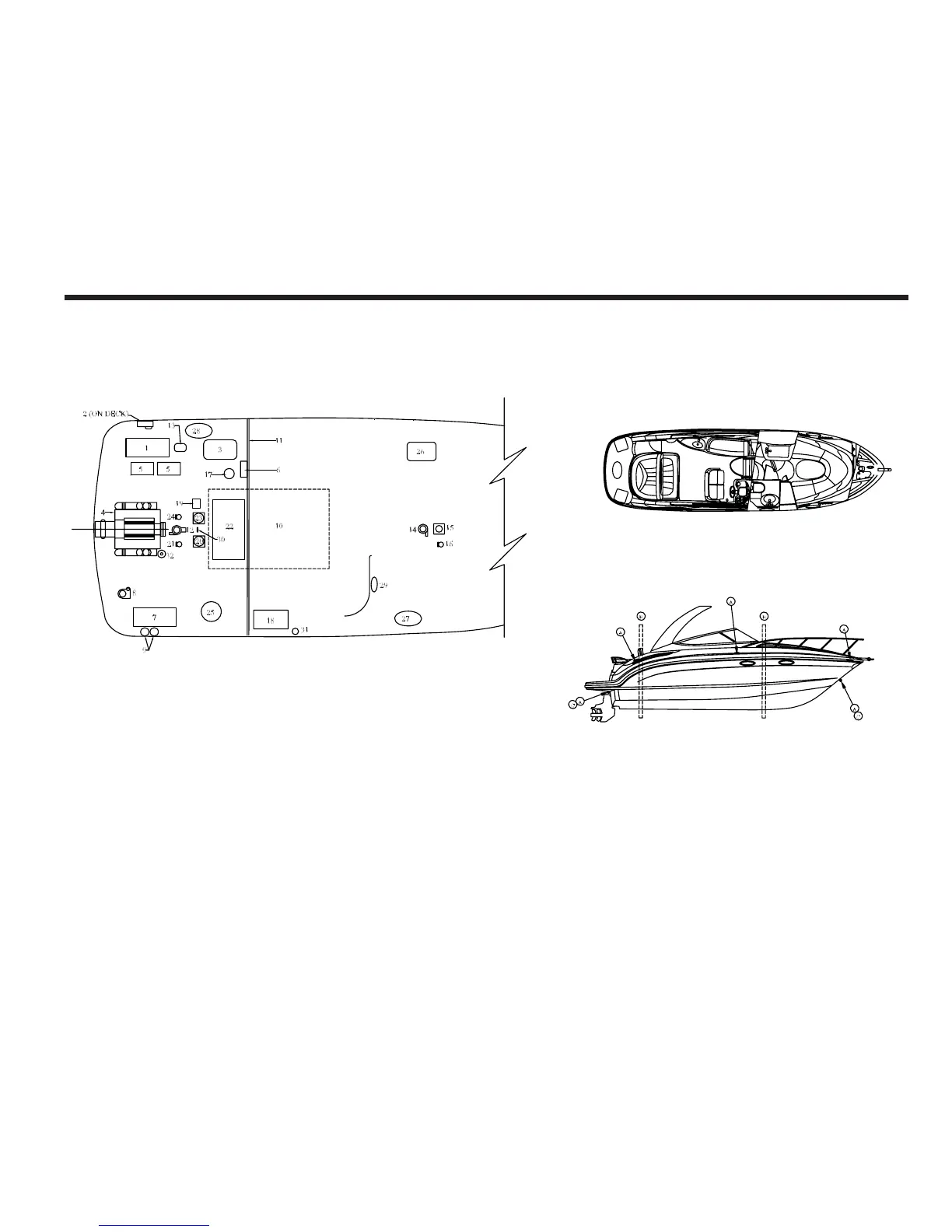

Figure 3.13 Signature 270
TYPICAL SIGNATURE 270 ENGINE COMPARTMENT LAYOUT
1. Fresh Water Tank 17. Fire Extinguishing System (optional)
2. Battery Selector Switch 18. Air Conditioner (optional)
3. Water Heater with Heat Exchanger 19. Air Conditioner Sea Pump (optional)
4. Engine 20. Air Conditioner Sea Strainer (optional)
5. Batteries (2) 21. Air Conditioner Seacock (optional)
6. Battery Charger 22. Generator (optional)
7. VacuFlush System 23. Generator Sea Strainer (optional)
8. Lower Unit Trim Pump Reservoir 24. Generator Seacock (optional)
(Merc) 25. Generator Muffler (optional)
9 Bilge Blowers 26. Galley Sink
10. Fuel Tank 27. Head Sink
11. Bulkhead 28. Cockpit Galley Sink
12. Aft Bilge Pump 29. Steering Helm
13. Water Pump and Filter 30. Fire Port (below seat)
14. Forward Bilge Pump 31. Euro Manual Pump
15. Sump Pump 32. High Water Bilge Alarm
16. Head Seacock
SIGNATURE 270 DECK PLAN
SIGNATURE 270 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
