3-22

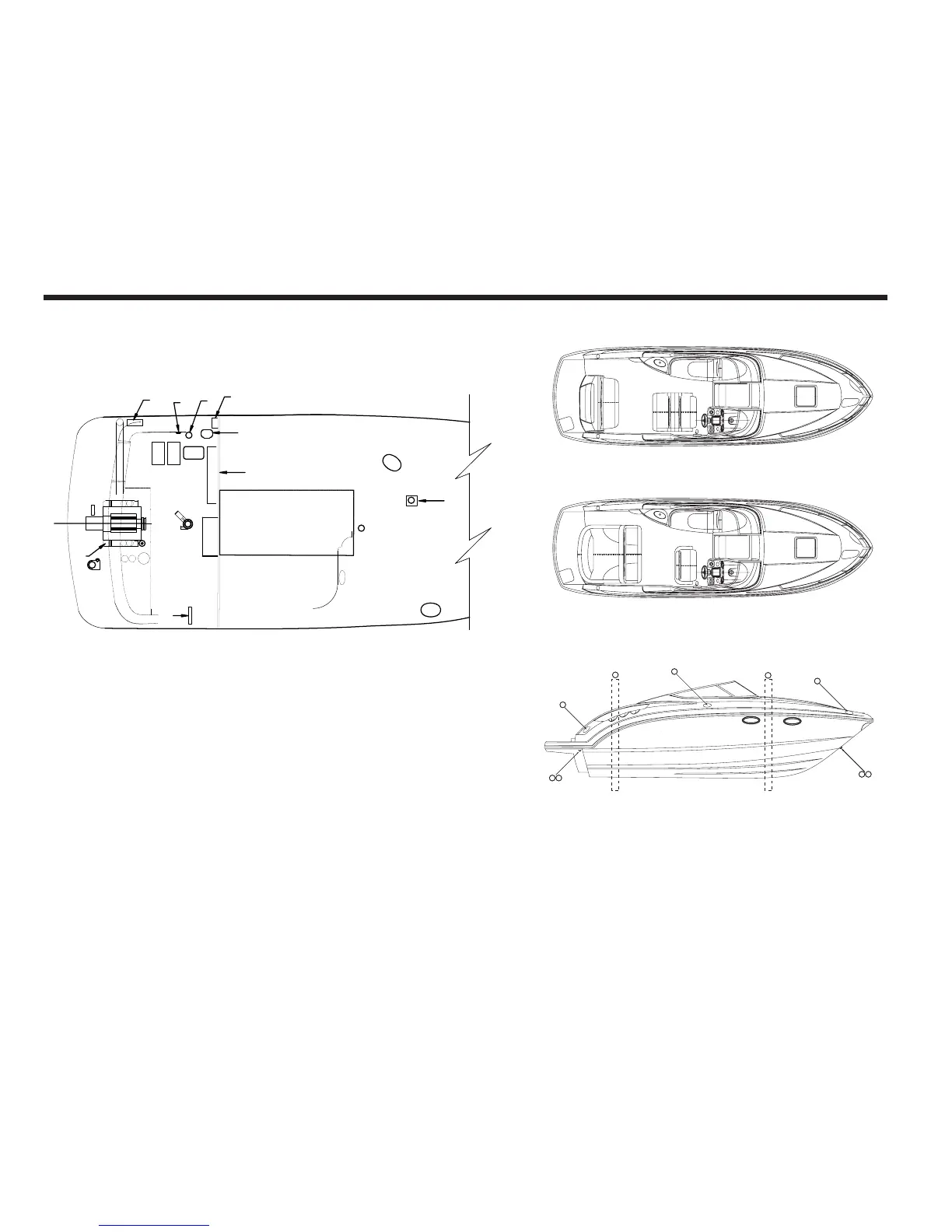

Figure 3.14 Signature 250
1. Fresh Water Tank
2. Battery Selector Switch
3. Water Heater with Heat Exchanger
4. Engine
5. Batteries (2)
6. Battery Charger
7. Lower Unit Trim Pump Reservoir
(Merc)
8. Bilge Blowers
9. Fuel Tank
10. Bulkhead
11. Aft Bilge Pump
12. Macerator (optional)
13. Water Pump and Filter
14. Head Seacock
15. Fire Extinguishing System
(optional)
16. Galley Sink
17. Head Sink
18. Steering Helm
19. Fire Port (below seat)
20. Euro Manual Pump
21. Sump Pump
22. Air Conditioning Seacock (optional)
23. High Water Bilge Alarm
24. Generator (optional)
SIGNATURE 250 STANDARD DECK PLAN
SIGNATURE 250 OPTIONAL DECK PLAN
SIGNATURE 250 PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
13
10
9
16
21
1
6
8
15
12
17
18
19
20
5
5
11
4
7
23
8
3
6
22
2
24
A
A
A
B
B
AC
AC
A
A
A
B
B
AC
AC
SIGNATURE 250 ENGINE COMPARTMENT LAYOUT
