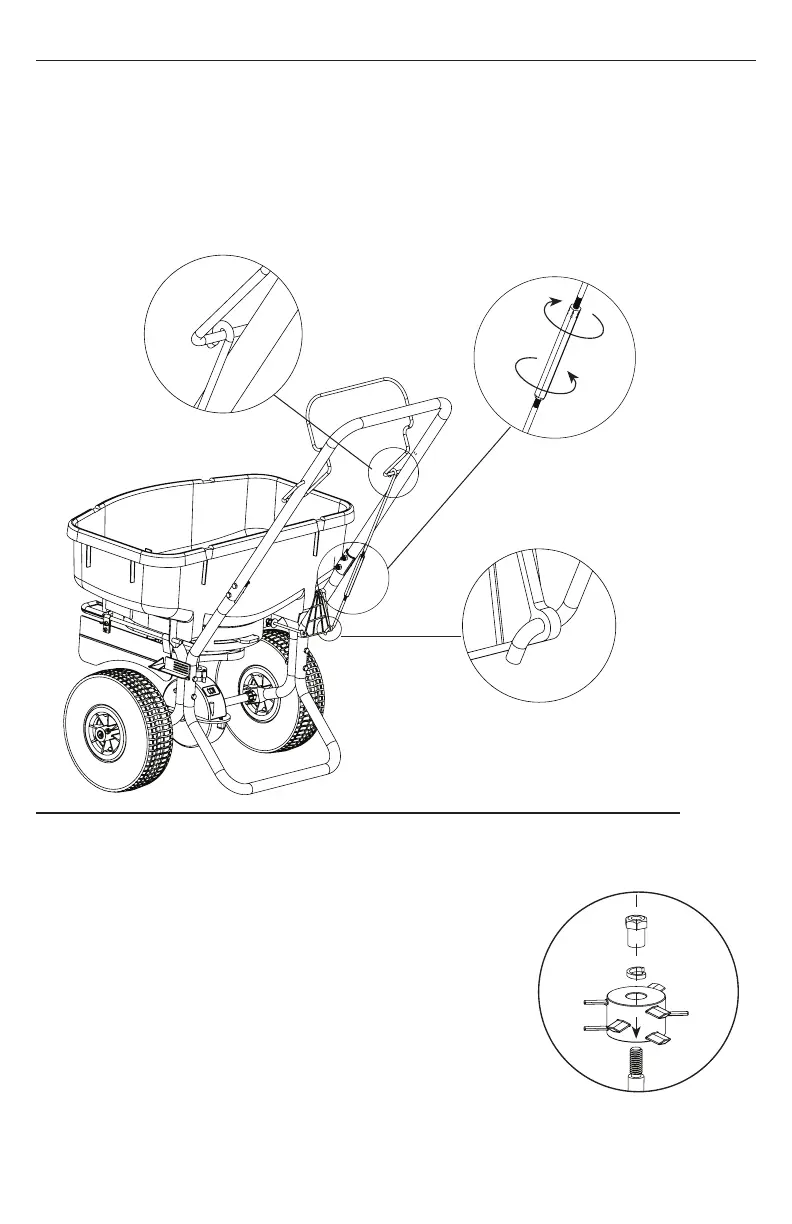

To Close Gate
(Increase Length)
To Open Gate
(Decrease Length)
Bail Position for adjusting Gate:
1) Bail must be in rest position for Gate Closed.
2) Bail must be depressed for Gate Open.
Figure A
Figure B
Figure C
Fully Assembled
Chapin Spreader Operator’s Manual - English
AUGER ASSEMBLY
2E
• Assemble linkage to bail assembly (Fig. A).
• Assemble linkage to rotate link (Fig. B).
• Rotate the turnbuckle to adjust the gate (Fig. C).
AUGER
AUGER
NUT
IMPELLER
SHAFT
Choose spiked auger for use with dense materials that have a
tendency to clump or have a higher moisture content.
• Ice Melt- Calcium Chloride
• Lawn Mineral Supplement
CAUTION: This spreader is NOT recommended for use with rock salt.
SPIKED AUGER ASSEMBLY
Thread auger clockwise onto impeller shaft. Insert auger nut.
Tighten with 10 mm wrench. Do not over tighten.
