Chapin 82050C - Tools and Component Identification; Tools Required for Assembly

TOOLS NEEDED:
HERRAMIENTAS REQUERIDAS:
OUTILS REQUIS:
8 mm 10 mm
8 mm 10 mm

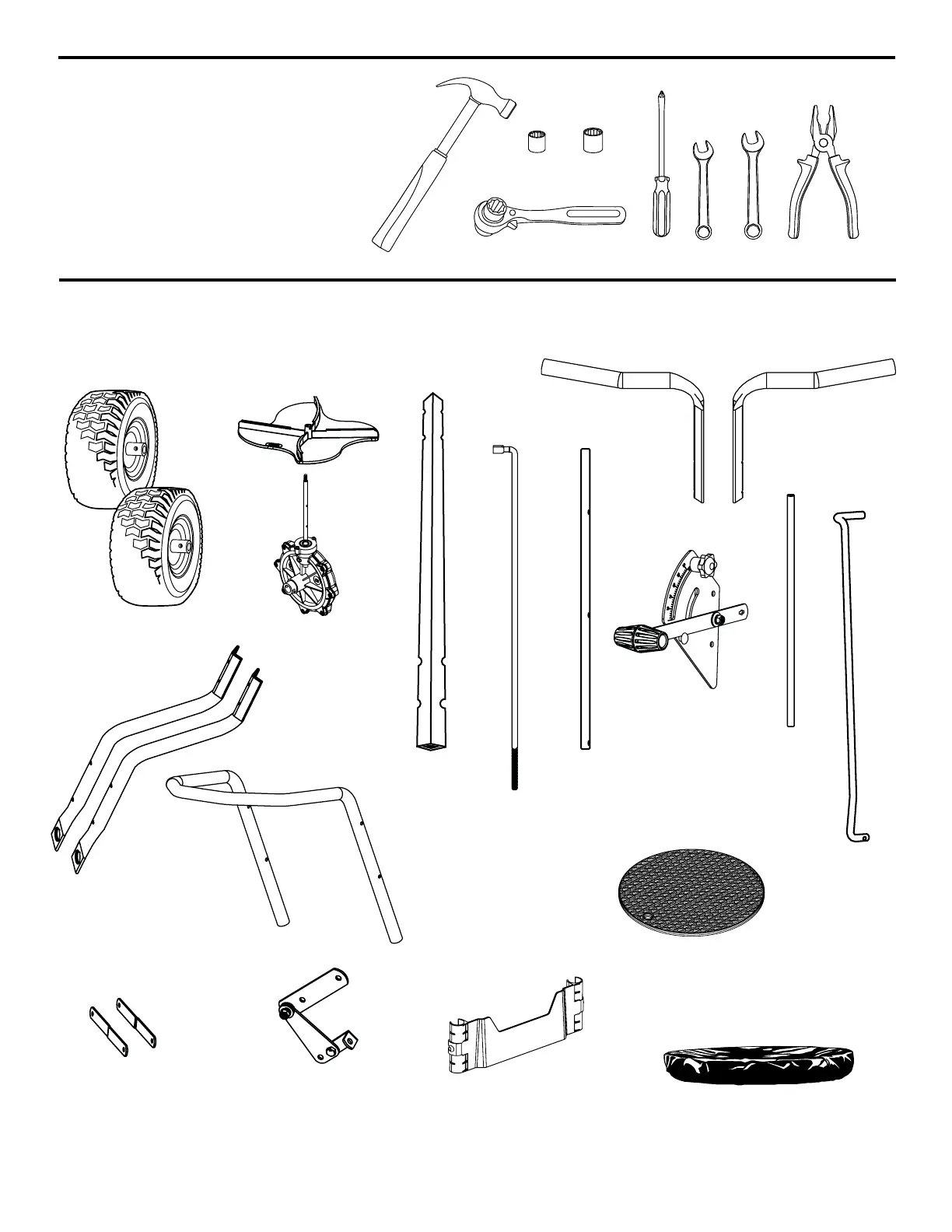

Spreader Components (Not Actual size)
Componentes de la esparcidor (no en tamaño real)
Composants de l’épandeur (taille non réelle)
e
e
3
C-1
Wheels
C-2
Impeller
C-3
Gear Box
C-4
Handle
Tube
C-5
Handle (Right)
C-6
Handle (left)
C-7
Actuator Rod
C-8
Gear Box Shaft
C-13
Linkage Arm
C-15
Rain Cover
C-17
Rear Baffle
C-12
Frame Leg Bracket
C-16
Rotary Gate Pivot
Assembly
C-14
Grate
C-10
Hopper
Frame
C-11
Frame legs
C-18
Frame
Stiffener Bar
C-9
Gate Control
