Char-Broil Front Avenue - User Manual

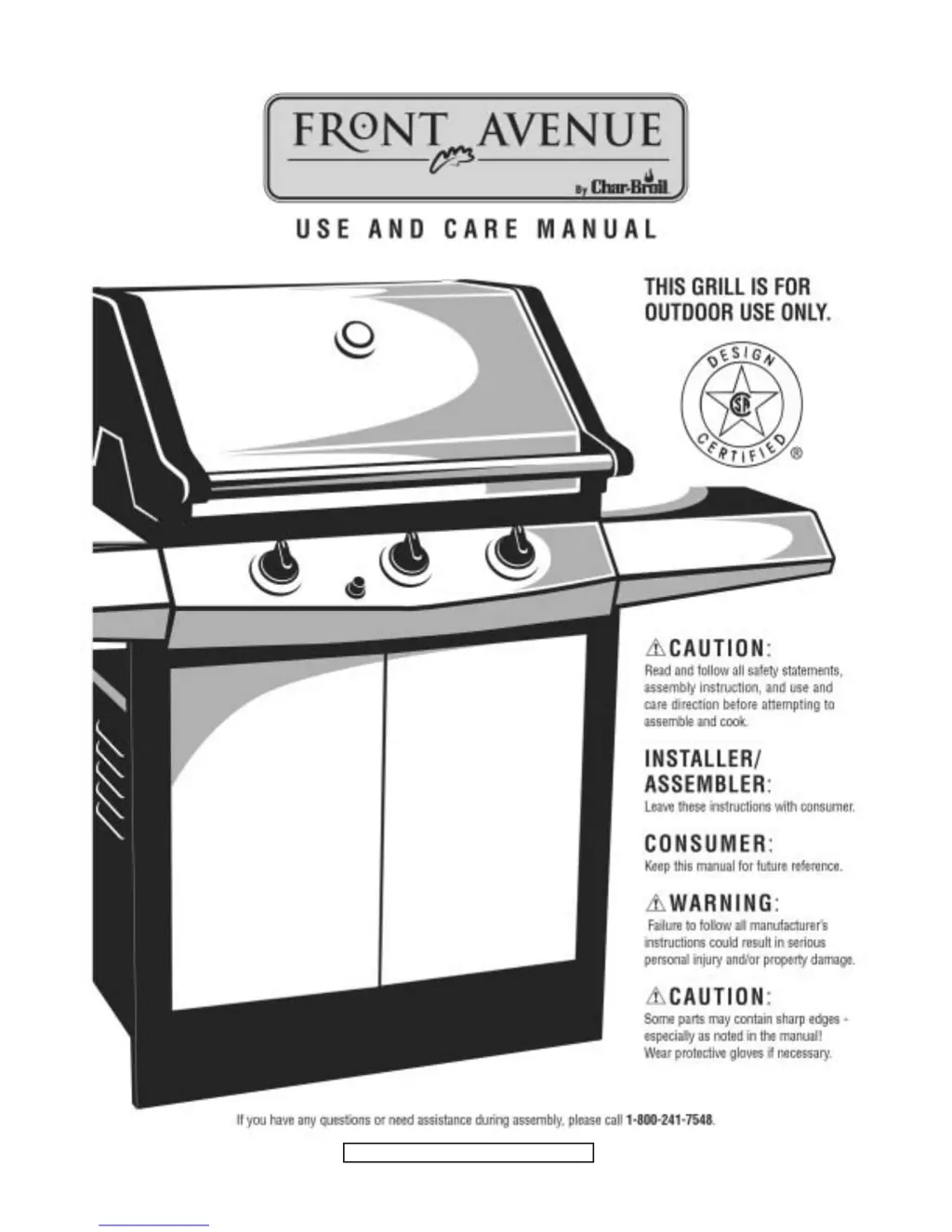

Char-Broil Front Avenue
12 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
1
463230703 / G408-001-000802 (06-17-03)

Questions and Answers

  • E
    Emily AdamsAug 14, 2025
    How to fix Char-Broil Front Avenue burner that won't light with ignitor?
    • R
      rberryAug 14, 2025
      If your Char-Broil grill burner won't light using the ignitor, several factors could be at play. Start by cleaning the wires and electrode with rubbing alcohol. Check for cracks or breaks in the electrode; replace it if necessary. Ensure the electrode tip is correctly positioned (1/8" to 1/4" from the collector box tip for main burners, or 1/8" to 3/16" from the gas port for the sideburner). Also, check the wires. Reconnect any loose wires or replace the electrode/wire assembly if needed. If the wire is shorting, replace the ignitor wire/electrode assembly. Finally, replace the battery with a new AA battery.
  • J
    jasonbryantAug 17, 2025
    What to do if Char-Broil Grill has a sudden drop in gas flow or low flame?
    • C
      Charlotte ThompsonAug 17, 2025
      If you notice a sudden drop in gas flow or a low flame on your Char-Broil grill, here's what to do: First, check the gas level in your LP tank to ensure you're not out of gas. If there's gas, the excess flow valve may have tripped. Try this: turn off the knobs, wait 30 seconds, and then light the grill. If the flames are still low, turn off the knobs and the LP tank valve. Disconnect the regulator, reconnect it, and perform a leak check. Turn the LP tank valve back on, wait 30 seconds, and then attempt to light the grill again.
  • C
    Curtis WilliamsAug 20, 2025
    Why won't my Char-Broil Front Avenue Grill burners light with a match?
    • T
      Tyler JonesAug 21, 2025
      If your Char-Broil grill burners won't light with a match, there could be a few reasons. First, ensure that gas is flowing by turning it on at the source. If gas is flowing, check for any obstructions in the gas flow and clear the burner tubes if necessary. Lastly, make sure the burner is properly engaged with the valve; reengage if it's disengaged.
  • R
    Ryan HarveyAug 25, 2025
    What to do if no sparks appear at electrodes when ignition button is pushed on Char-Broil Grill?
    • D
      Douglas CarrAug 25, 2025
      If no sparks appear at any electrodes and you hear no noise from the spark module when pushing the ignition button on your Char-Broil grill, check these: Ensure the battery is installed correctly, with the '+' end down and the '-' end up. If the battery is correctly installed, try replacing it with a new AA-size alkaline battery. Also, check the button assembly and reinstall it, making sure the threads are aligned and fully engaged. If none of these steps work, the spark module may be faulty and require replacement.
  • M
    Michael DiazAug 27, 2025
    Why are sparks present but not at all electrodes and/or not at full strength on Char-Broil Grill?
    • L
      Luke ColemanAug 27, 2025
      If sparks are present but not at all electrodes or not at full strength on your Char-Broil grill, there could be several reasons. First, ensure that all output lead connections at the module and electrodes are properly connected. If possible, check for arcing between the output wires and the grill frame in a dark location while operating the ignition system. A weak battery can also cause this issue, so replace it with a new AA-size alkaline battery. Also, make sure electrodes are dry and use a paper towel to remove moisture if needed. Finally, inspect electrodes for cracks or breaks and replace cracked or broken electrodes.
  • K
    Kenneth IrwinAug 30, 2025
    How to stop flare-ups on Char-Broil Front Avenue?
    • M
      Mrs. Melinda Jones DDSAug 30, 2025
      To prevent flare-ups on your Char-Broil grill: Regularly clean the grill to remove grease buildup. Trim excessive fat from meat before grilling. Adjust the cooking temperature to a lower setting or use indirect cooking methods.
  • M
    Madison GomezSep 2, 2025
    What to do if flames blow out on Char-Broil Front Avenue Grill?
    • V
      Vincent Marsh PhDSep 3, 2025
      If the flames on your Char-Broil grill are blowing out, especially in windy conditions, try turning the front of the grill to face the wind. Alternatively, increase the flame height to make it less susceptible to being blown out.
  • J
    John MillerSep 6, 2025
    What to do if Char-Broil Front Avenue has a persistent grease fire?
    • T
      Teresa GriffithSep 6, 2025
      If you experience a persistent grease fire in your Char-Broil grill: Turn all knobs to the OFF position and shut off the gas at the source. Leave the lid closed and allow the fire to burn out on its own. Once the grill has cooled completely, remove and thoroughly clean all parts.
  • M
    Melissa SharpSep 9, 2025
    Why is there a flashback (fire in burner tubes) in my Char-Broil Grill?
    • S
      schmittbenjaminSep 9, 2025
      A flashback (fire in the burner tubes) in your Char-Broil grill usually indicates that the burner and/or burner tubes are blocked. Clean the burner and burner tubes to resolve this issue.

Summary

Installation Safety Precautions

Safety Symbols

Warranty

Use and Care

LP Tank Leak Test

Procedure and safety for testing LP tank for leaks.

Connecting The Regulator To The LP Tank

Step-by-step guide for connecting the LP regulator to the tank.

LP Tank Removal, Transport And Storage

DANGER

Highlights severe risks associated with LP tank storage and handling.

WARNING

Alerts users to potential serious injury from improper LP tank handling.

Leak Testing Valves, Hoses and Regulator

Instructions for leak testing system components before operation.

Ignitor Lighting

Ignitor Check

Valve Check

Hose Check

Cleaning The Burner Assembly

Turning Grill Off

General Grill Cleaning

Storing Your Grill

Indirect Cooking

Indirect Cooking Instructions

Guidelines for cooking using indirect heat methods.

1 Burner Cooking

Describes direct or indirect cooking with one burner.

2 Burner Cooking

Explains indirect cooking for slow, even heating.

Food Safety

Clean

Wash hands, utensils, and surfaces with hot soapy water.

Separate

Keep raw meat/poultry separate from ready-to-eat foods.

Cook

Cook meat thoroughly to kill bacteria using a thermometer.

Chill

Refrigerate prepared foods and leftovers promptly.

Troubleshooting

Burner will not light using ignitor.

Addresses issues with ignitor not lighting burners.

Burners will not match light.

Solutions for burners failing to light with a match.

Sudden drop in gas flow or low flame.

Diagnosing and fixing issues with reduced gas flow or flame.

Flames blow out.

Causes and cures for flames being blown out by wind.

Flare-up.

Solutions for grill flare-ups, often due to grease.

Persistent grease fire.

How to handle and extinguish persistent grease fires safely.

Flashback... (fire in burner tubes)

Addressing flashbacks or fires within burner tubes.

Troubleshooting - Electronic Ignition

Sparks are present but not at all electrodes and;or not at full strength

Troubleshooting weak or intermittent sparks at electrodes.

Char-Broil Front Avenue Specifications

General IconGeneral
TypeGas Grill
Side BurnerNo
Grate MaterialPorcelain-coated cast iron
MaterialSteel
Warranty1 year
Fuel TypePropane
