Cleaning The Evenflame Burner Assembly
Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill.
1.
2. Remove cooking grate and V-Bar.
3. Under grill remove soup can, (unscrew ignitor button and remove battery on electronic ignition models), disconnect short ignitor
wire (A) and clips from burner (B). To remove clips pull down on large end of clip attached to the valve, turn away from valve,
rotate upward and remove small end of clip from burner tube.
4. Inside grill remove burner assembly (C), clean ceramic portion of electrode with rubbing alcohol and a swab.
5. Clean outside of burner with soap and water. Lay burner upside down on flat surface, insert garden hose to force water through
tubes. Make sure water comes out of all burner holes. Open clogged holes with a thin wire. Shake out excess water
and examine holes. Due to normal wear and corrosion some holes may become enlarged. If any large cracks or holes are found
replace burner.
6. If grill is to be stored, coat burner lightly with cooking oil. Wrap in protective cover to keep insects out.
7. If not storing grill after cleaning, replace burner into grill bottom (C).
8. To reattach clips hold large curved end away from burner tube, insert small curved end into hole under burner tubes, turn clip
towards valve, snap into place.
9. Reattach ignitor wire to ignitor (A). (Reinstall battery and ignitor button on electronic ignition models.)
10. Reposition v-bar and cooking grate(s). Reattach clean can to grease clip.
11. Before cooking again on grill, perform a and .
Turn gas off at control knobs and LP cylinder.
VERY IMPORTANT: Clips must be attached correctly for proper grill function (B).
Do not use ceramic briquets or charcoal with your grill.
“Leak Test” “Burner Flame Check”
s
Remove button and battery on
electronic ignition models

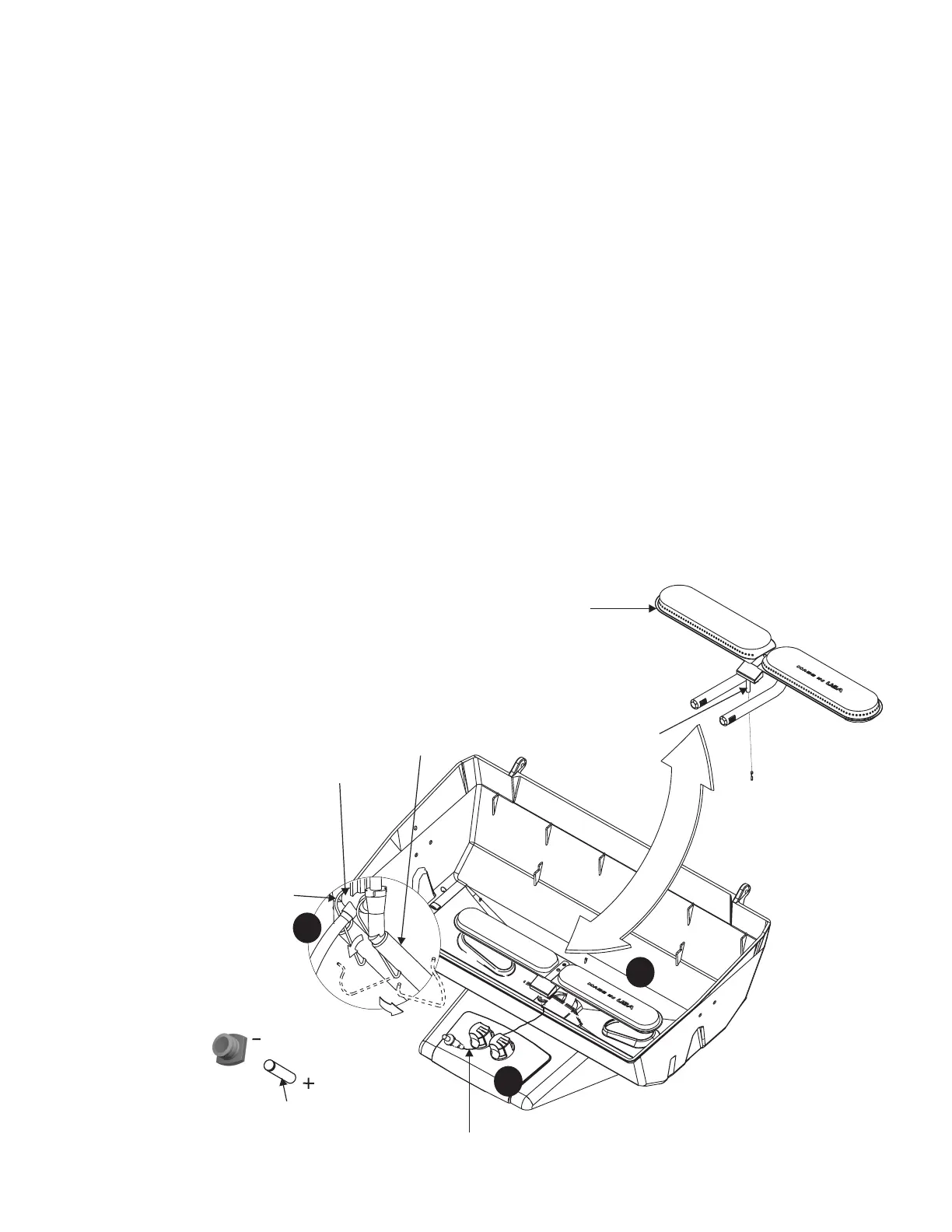

QuickSet Burner
Electrode
Burner Tube
Valve
Clip
Short Ignitor Wire
A
B
C
