7
17
C
1/4" nut
1/4" nut
Bracket
Right side self
valve stem
bezel (blank)
Knob
#8-32x3/8" screw
G
A

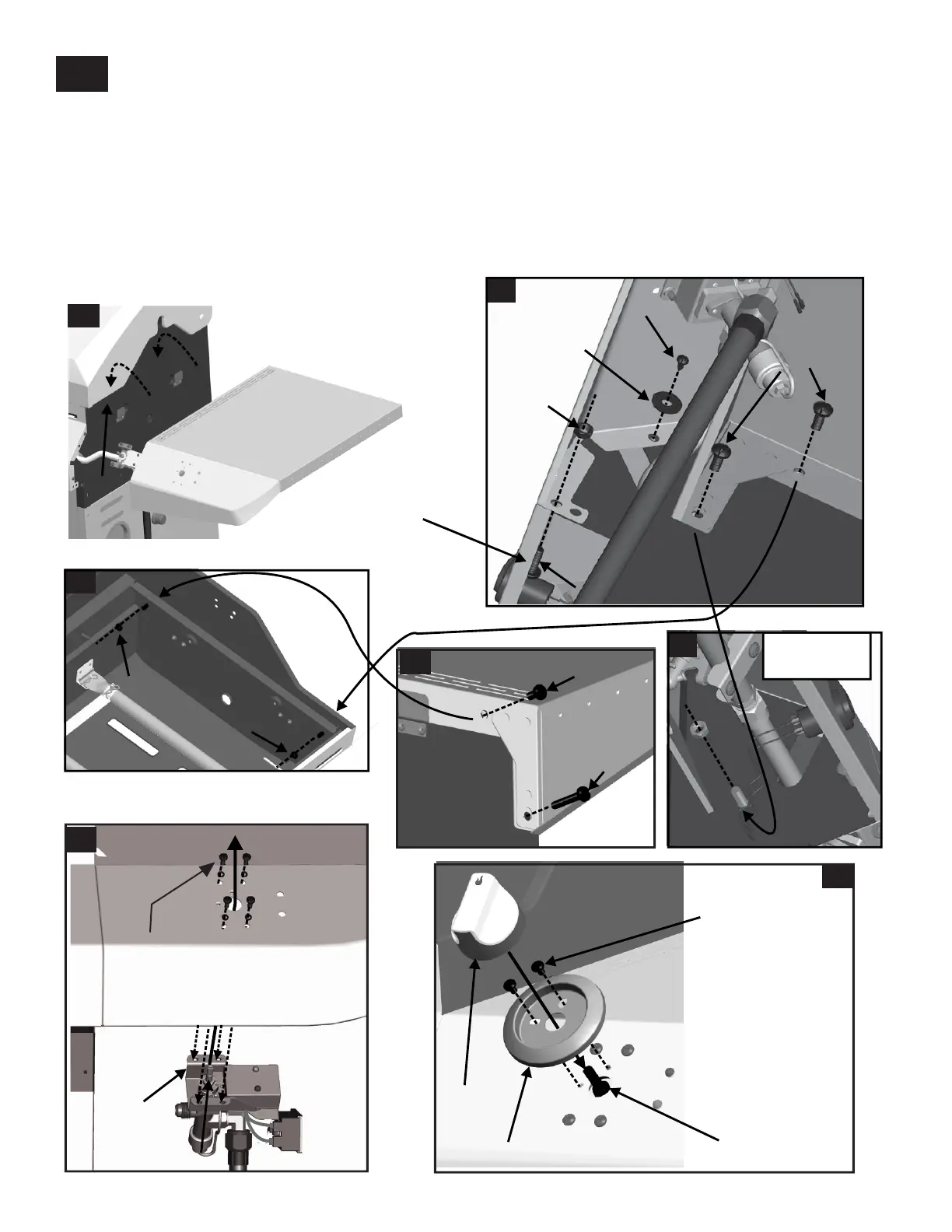

Insert flange on right side shelf into side shelf brackets on side of firebox, shown A.
Attach front of shelf and fascia using three 1/4-20x1/2" screws with 1/4" nuts and using one #8x3/8” self-tapping
screw with large flat washer, shown B/C/E.
Remove the four screws and washers factory attached to the Auto Clean valve bracket. Position Auto Clean valve
bracket beneath right side shelf fascia so that valve stem comes through larger center hole in fascia. Align the
four holes on valve bracket with the four holes on fascia. Secure using screws and washers that were removed
from bracket, shown F.
Place the blank bezel over valve stem on front side of the fascia. Align small holes on bezel with the holes on
fascia. Attach using two #8-32x3/8” screws. Press control knob on to valve stem, shown G.
Attach rear of shelf using one 1/4-20x1/2” screw and 1/4” nut in upper hole; using one 1/4-20x1½” screw in lower
hole, shown C/D.
valve stem
F
Screws and washers
removed from valve bracket
Auto Clean
valve bracket
1/4-20x1/2" screw
1/4-20x1/2" screw
1/4" nut
#8x3/8" self-
tapping screw
Large flat
washer
Note: Insert this screw
from the back of main
control panel
1/4-20x1/2" screw
1/4-20x1 ½" screw
D
B
E
Back of main
control panel
To Next Page
