Char-Broil Performance T-47D User Manual

18
8
Left sideburner shelf
Flange into bracket
Bracket
1/4-20x1/2"
screw
Control
panel
#8x3/8" self-tapping
screw
Back of main control panel
large flat
washer
A
C
D
F
E
1/4" nut

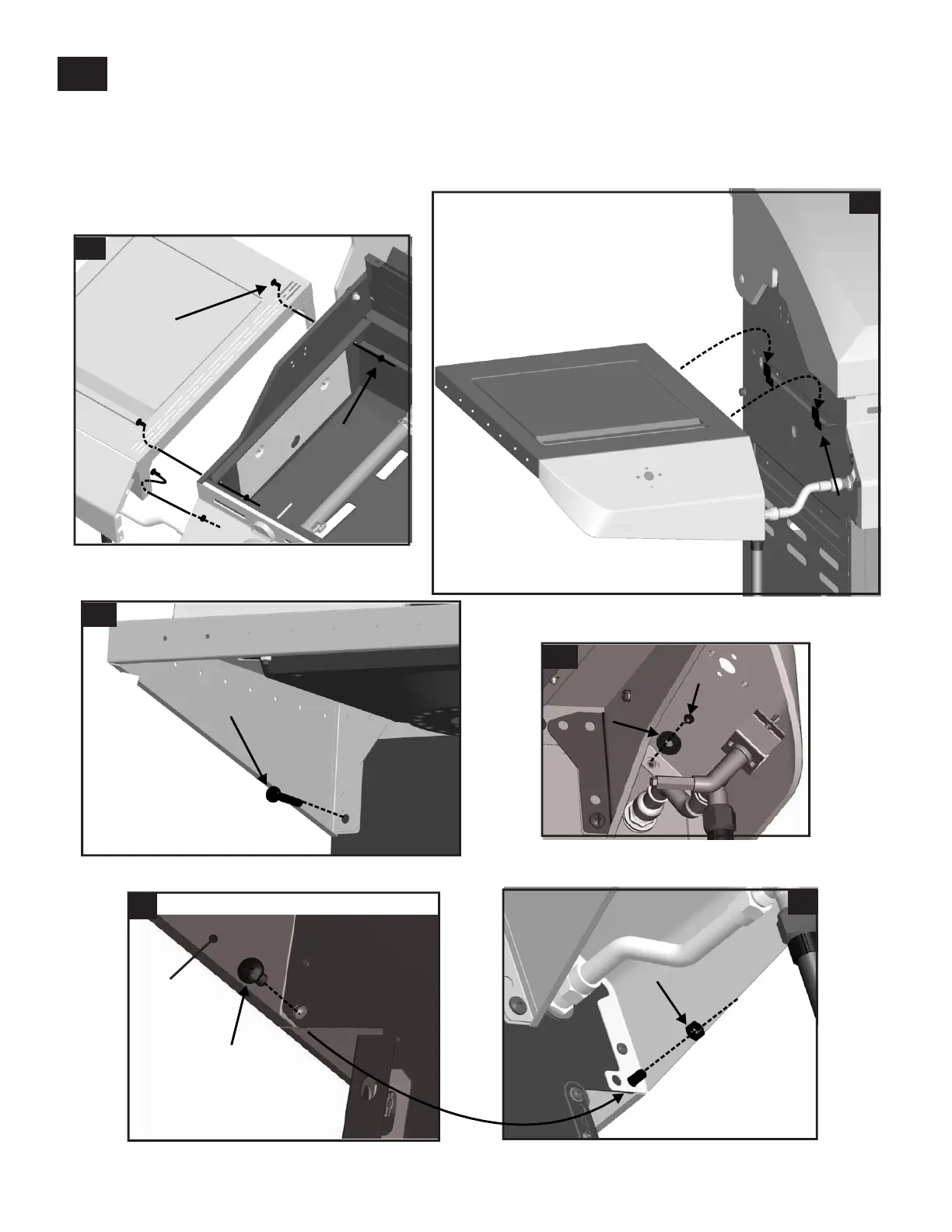

Insert flange on left sideburner shelf into side shelf brackets on side of firebox, shown A.
Attach left sideburner shelf using three 1/4-20x1/2” screws and 1/4” nuts, shown B.
Attach rear of shelf using one 1/4-20x1 ½" screw, shown C.
Attach front of shelf using one #8x3/8” self-tapping screw and large flat washer, shown D.
Under main control panel, attach front of shelf and fascia using one 1/4-20x1/2” screw and 1/4" nut, shown E/F.
Now you may fully tighten lower screws on upper back panel.
1/4-20x1/2"
screw
1/4" nut
1/4-20x1 ½" screw
B
