Control knob bezel
Install bezel with OFF at top
Screws and Washers
removed from valve bracket
Valve stem
#8-32x3/8" screw
Valve stem
Sideburner bezel
Sideburner
fascia
Sideburner
valve bracket

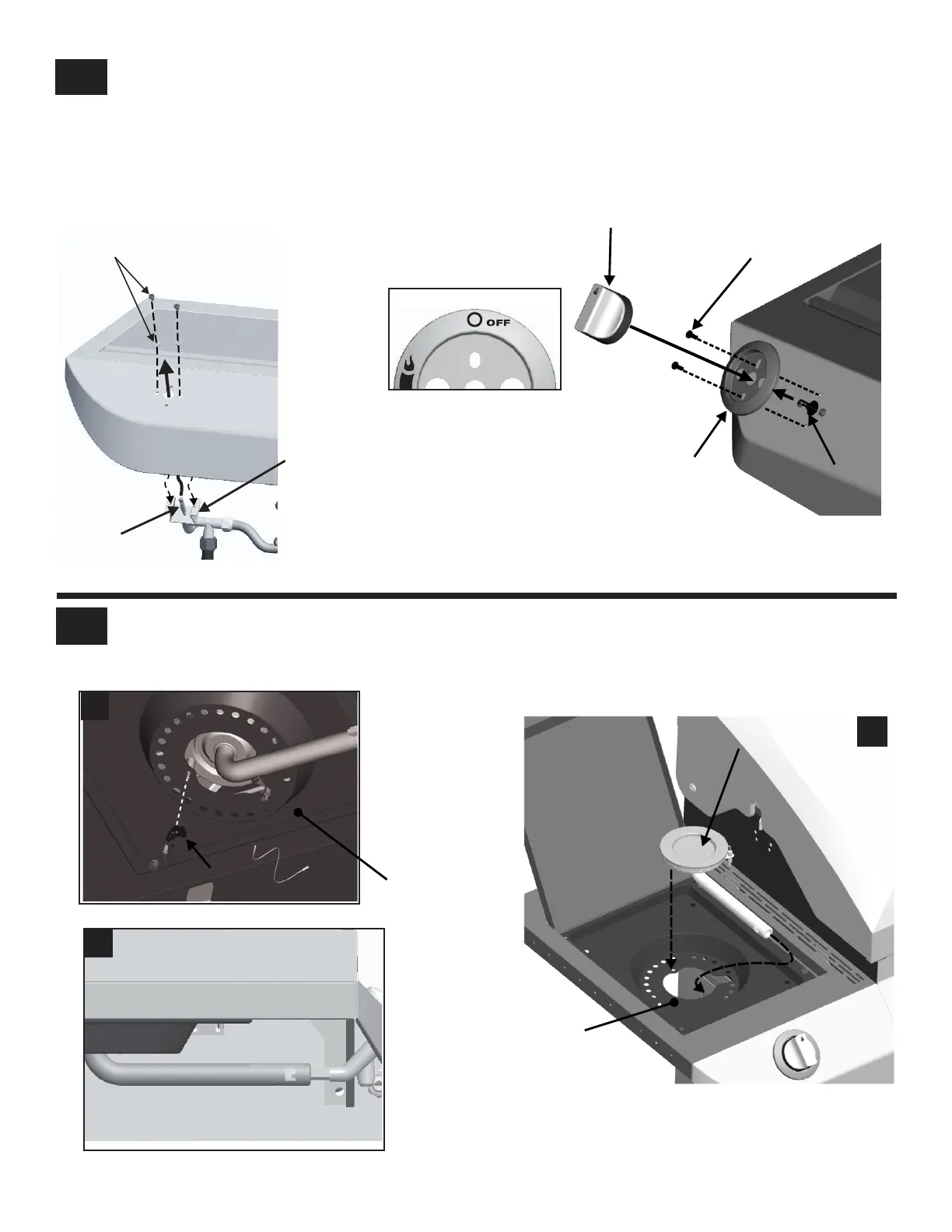

First, remove the two screws and washers factory attached to the sideburner valve bracket. Position sideburner
valve bracket beneath sideburner shelf fascia so that valve stem comes through larger center hole in fascia. Align
the holes on valve bracket with left and right holes on fascia. Secure using screws and washers that were
removed from bracket.
Next, place sideburner bezel over valve stem on front side of fascia. Align small holes on bezel with upper and
lower holes on fascia. Attach bezel to fascia using two #8-32x3/8” screws. Press sideburner control knob onto
valve stem.
Note: Use left and right
holes on fascia to attach
valve bracket
Note: Use upper and lower holes
on fascia to attach bezel
Sideburner drip pan
Sideburner drip pan
Sideburner burner
Wing nut
Burner tube
Valve
C
B
A
Insert sideburner burner into left shelf,
pan, shown Secure burner to sideburner drip pan with one Wing nut, shown . Make sure burner tube engages
sideburner valve, shown C.
The stud on bottom of burner fits into rear small hole in sideburner drip
A. B
