Char-Broil Performance T-47D User Manual

8a
11
20
12

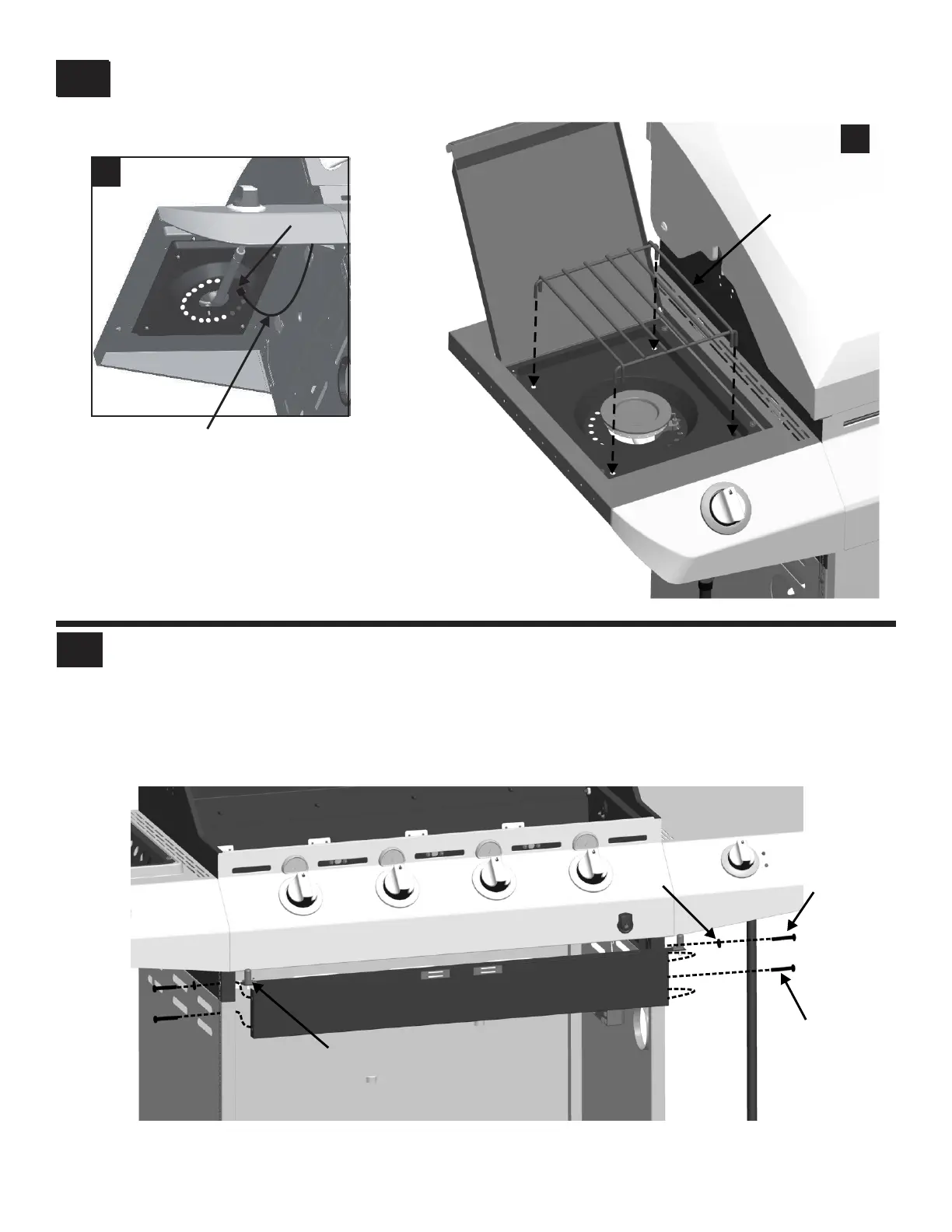

Front brace
Insert front brace under control panel and between cart panels. Make sure door hinge pin is on the top side and
facing the front. Secure front brace in upper holes using one 1/4-20x1½” screw and Fiber washer on each side.
Secure front brace in lower holes using one 1/4-20x1½” screw on each side.
NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED IN THE MOST DOWNWARD POSITION WHEN
ASSEMBLED TO CART.
1/4-20x1½"
screw
1/4-20x1½"
screw
Fiber
washer
Door hinge
pin
11
A
Electrode
B
Sideburner Ignitor Wire
Sideburner grate
Under sideburner shelf, attach sideburner ignitor wire to electrode, shown A. Place sideburner grate onto
sideburner shelf, aligning grate legs with holes in shelf, shown B.
