13
A
Front brace
Front brace
Heat shield
Tank wire
Tank wire
Left grease tray rail
Right grease tray rail
Rails
#8x3/8" self-tapping
#8x3/8" self-tapping
Screw
Screw
B

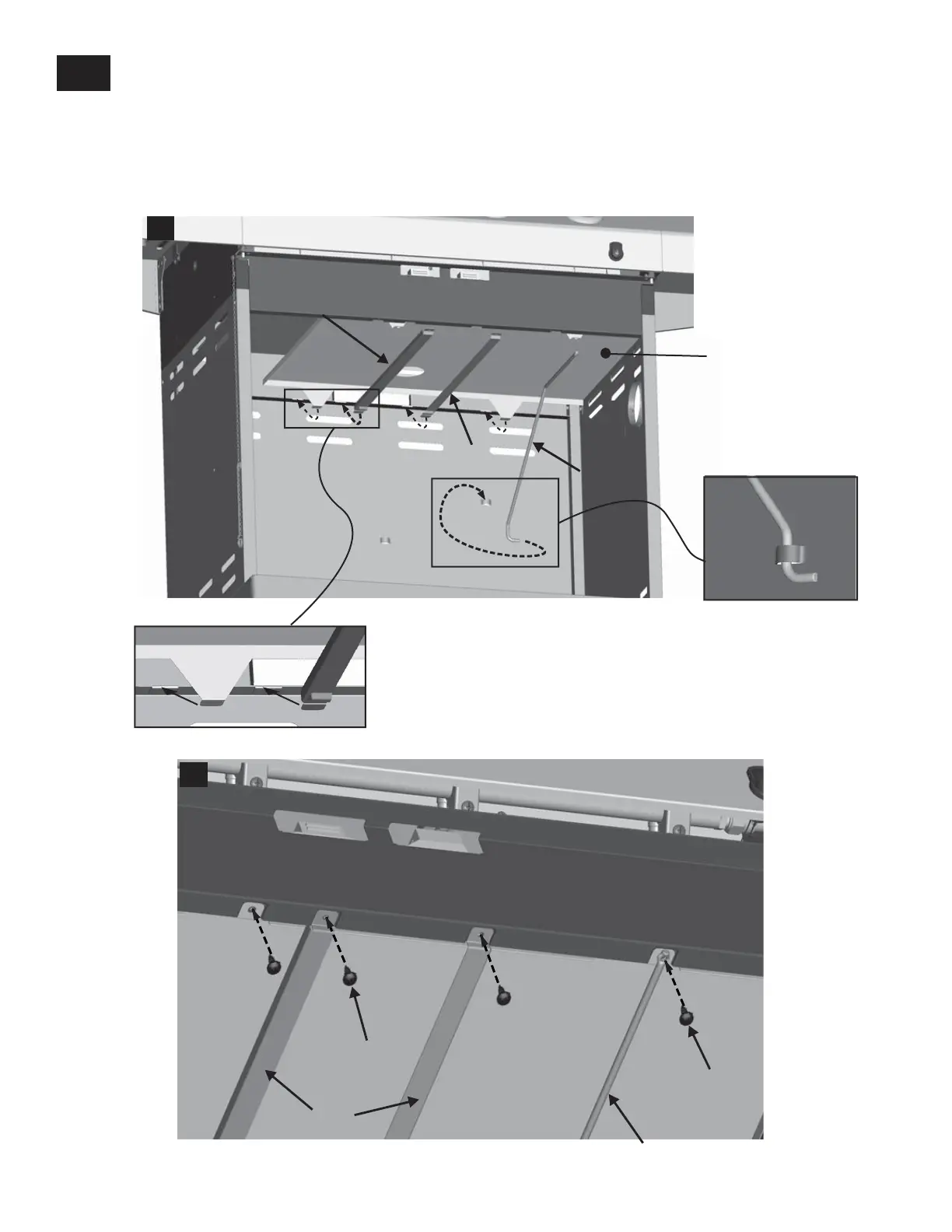

Inside of cart, insert heat shield rear tabs(without holes) into slots between upper and lower back panels. Then
insert left and right grease tray rails into slots beneath grease tray opening in upper back panel. Then insert end of
tank wire into right arcuate slot on lower back panel, shown A.
Attach left and right rails to the bottom of front brace with two #8X3/8” self-tapping screws. Attach heat shield front
tabs and tank wire to the bottom of front brace with two #8X3/8” self-tapping screws, shown B.
