10
LOAD CELL

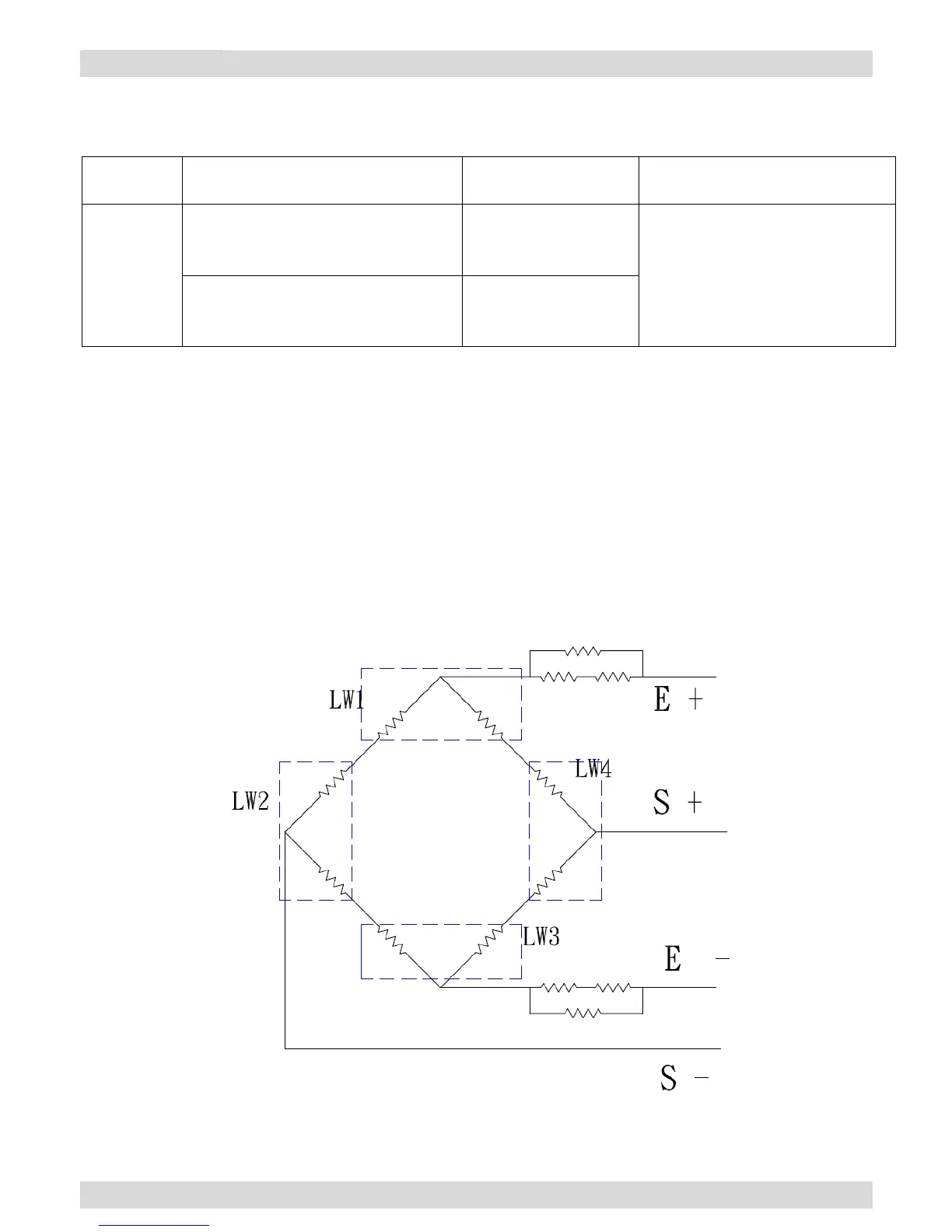

Check load cell for proper bridge resistances as below.
MODEL MEASURING POINTS RESISTANCE REMARK
E+ (RED) to E- (BLACK)
350 ± 5 ohms
AL-8160
S+ (GREEN) to S- (WHITE)
350 ± 5 ohms
Each resistant on load cell
should be same and the
tolerance < 355 ohms.
ACTION:
1. Remove power (adaptor pin) from the system, check load cell for proper
resistances.
2. If load cell fails the above tests, replace load cell.
3. If load cell passes the above tests and has no visible damage, please re-calibrate
the scale.
To Next Page
