Charder MS-3500 - LCD Format

8

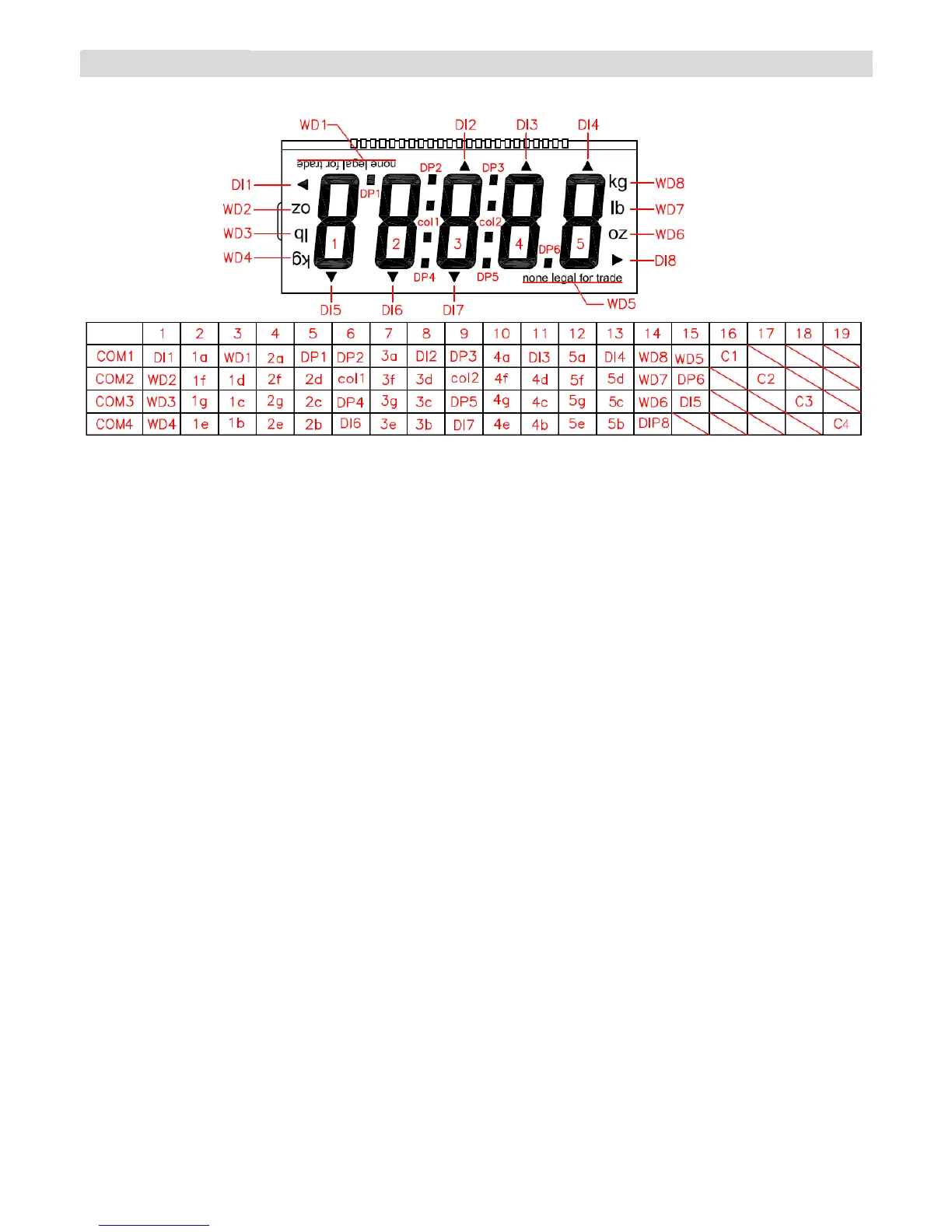

LCD FORMAT
ACTION:
Problem- The scale shows non-complete segments when power on.
Solution:
 Turn off the scale and take out the batteries from the scale.
 Check LCD pin. (Please refer to above LCD FORMAT)
For instance, if the top left arrow (DI1) disappears, then check pin 1 and pin 16.
 Check whether LCD pins are soldered properly or not.
