CHART Carbo-MAX 450 - Carbo-Max 450;600 PED Flow Schematic

29
SpecicationsProduct Manual - Carbo-Max
®
Bulk CO
2
Systems

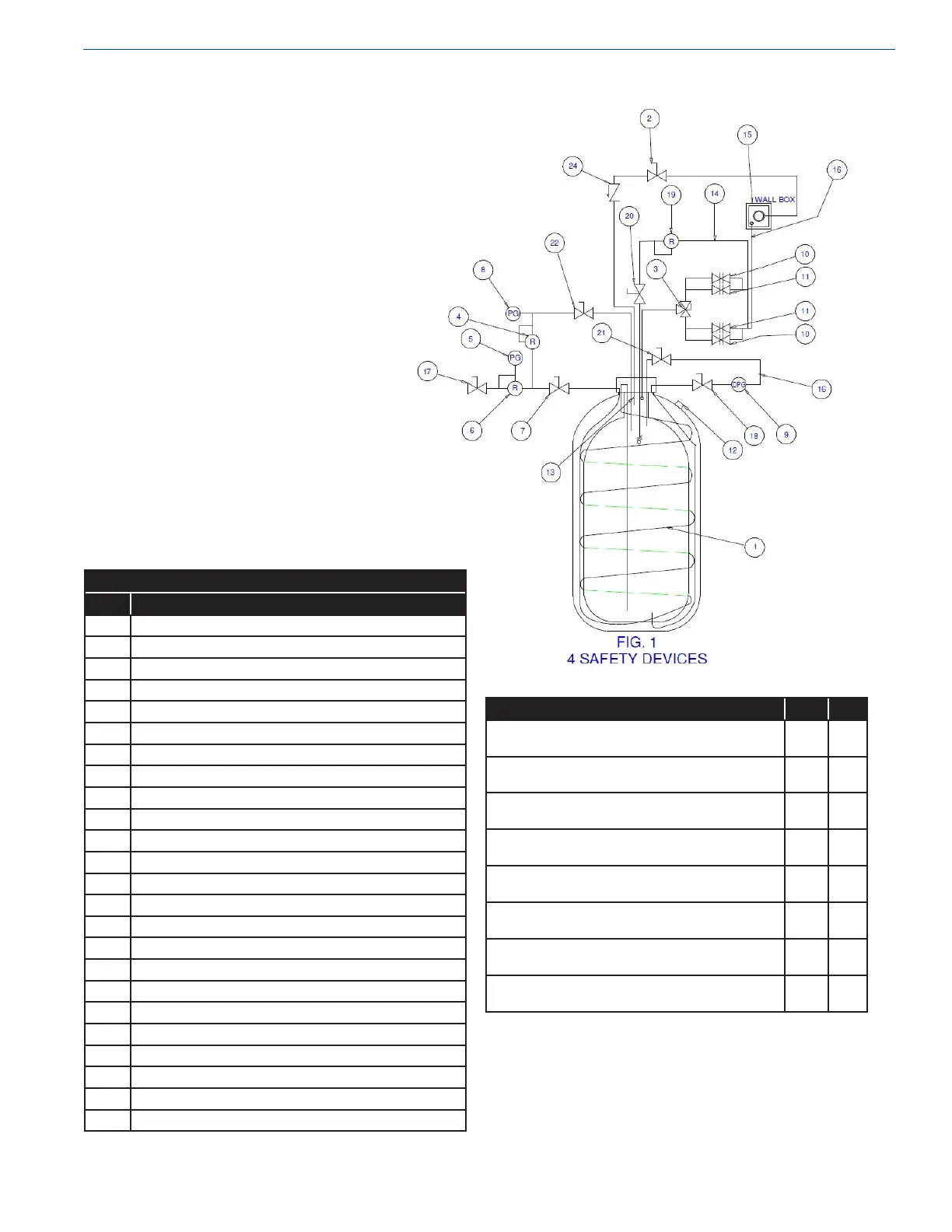

Carbo-Max 450/600/750 PED Flow Schematic
Safety Device Item Qty
Relief Valve @ 300 PSI, 1/2” REGO PRV19434 (CE
Marked)
10 2
Relief Valve @ 450 PSI, 1/2” REGO PRV19434 (CE
Marked)
11 2
Relief Valve @ 300 PSI Maximum, 1/2” Herose
06001 (CE Marked)
10 2
Relief Valve @ 450 PSI Maximum, 1/2” Herose
06001 (CE Marked)
11 2
Relief Valve @ 300 PSI Maximum, 1/2” Herose
06002 (CE Marked)
10 2
Relief Valve @ 300 PSI Maximum, 1/2” Herose
06006 (CE Marked)
10 2
Relief Valve @ 300 PSI Maximum, 1/2” Generant
CRV (CE Marked)
10 2
Relief Valve @ 300 PSI Maximum, 1/2” Herose
06478 (CE Marked)
10 2
Nomenclature
Item Description
1 Vaporizer Coil-3/8” OD SS Tubing
2 Liquid Fill Valve-3/8” NPT
3 Valve Diverter SS 1/2 NPT
4 Economizer Regulator-1/4” NPT, Set @ 150 PSIG
5 Gas Use Pressure Gauge 0-160 PSIG
6 Final Line Regulator-1/4” NPT, Set @ 110 PSIG
7 Gas Supply Isolation Valve (On/O󰀨) 1/4” NPT
8 Storage Tank Pressure Gauge 0-400 PSIG
9 Di󰀨erential Pressure Gauge
10 Safety Device, See Safety Device Table
11 Safety Device, See Safety Device Table
12 Outer Vessel Pressure Protection - Set @ 23 PSIG
13 Venturi Fill Device
14 Vent Line 1/2” OD Copper Tubing
15 CO
2
Fill Connection
16 Vent Line to Fill Box
17 CO
2
Use Connection Isolation Valve 1/4” NPT (red handle)
18 High Side Di󰀨erential Pressure Isolation Valve 1/4” NPT
19 Sure-Fill (Auto Vent) Regulator 1/4” NPT, set @ 200 PSIG
20 Sure-Fill Isolation Valve 1/4” NPT
21 Low Side Di󰀨erential Pressure Isolation Valve 1/4” NPT
22 Economizer Isolation Valve 1/4” NPT
23 Emergency Shut-O󰀨 Label
24 Liquid Fill Check Valve
