INSTALLATION/REMOVAL
Intelect® Advanced Therapy System
INSTALLATION- CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

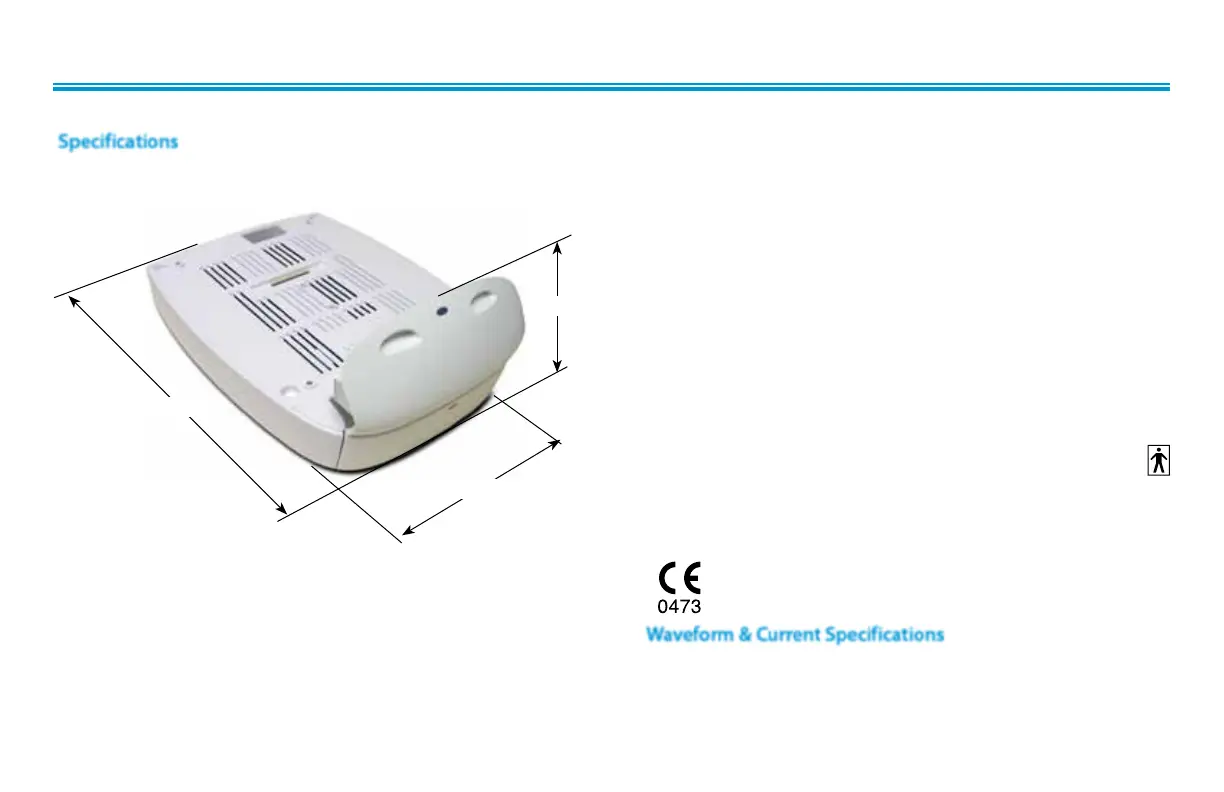

Specifications
WIDTH
DEPTH
HEIGHT
DIMENSIONS
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 cm (8.250")
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 cm (11.875")
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.5 cm (4.500")
WEIGHT
Standard Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 kg (1.0 lbs)
POWER
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .System Dependent
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .System Dependent
Electrical Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CLASS I
Electrical Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TYPE BF
Regulatory Compliance
UL/IEC/EN 60601-1
IEC 60601-2-10
All waveform/currents available to the Intelect Advanced Therapy
System are available to the Channel 3/4 Electrotherapy Module
once installation is complete. Refer to pages 16 through 25
for available waveform specifications.
NOTE:
All waveforms except High Voltage Pulsed Current (HVPC) of the
Intelect Advanced Therapy System have been designed with a
200 mA current limit.
VMS™, VMS™ Burst and all TENS waveform output intensities are
measured, specified and listed to peak, not peak to peak.
Waveform & Current Specifications
