Start Surveying Work
20
we divide these two ways into 3 modes: Radio Mode, GPRS Mode
and DCI mode, and the configurations are shown in the table below:
Table 5.2-1 Configuration for Radio Mode

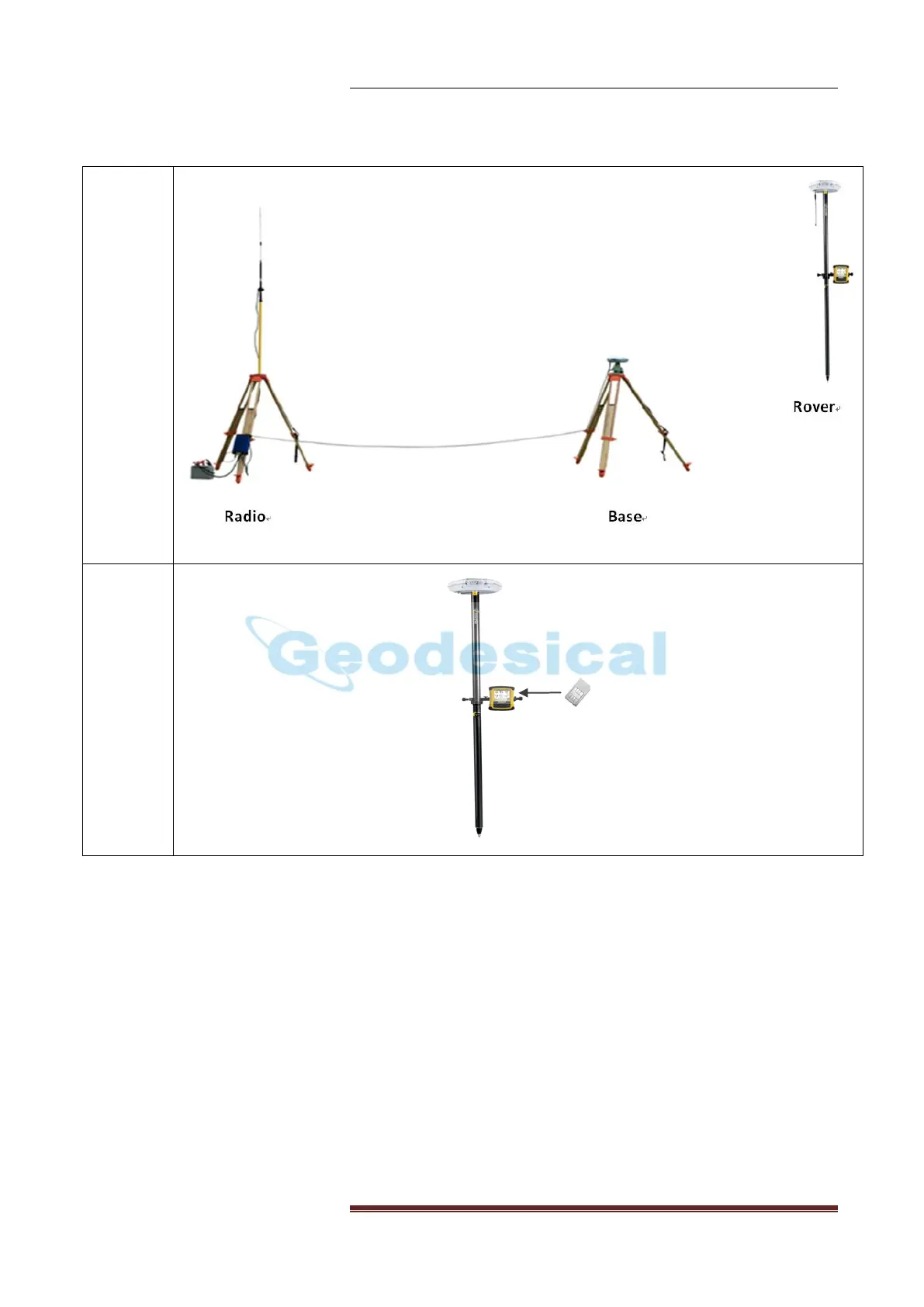

Radio Mode: install the instruments like the figure in Table 5.2-1
Set up the Base on the Known or Unknown Point.
Set up the Datalink and Antenna Near the Base.
Connect the car battery, the Radio, the Antenna and the
Base with relative cables like the following picture.
CAUTION: The Datalink must be connected in right order, Antenna
first, and then GPS. The most important, power cable the last.
DCI
（Data
Collector
Internet
） Mode
