To attach the appliance rails:
1. Set the right-side appliance rail on the right-side of the appliance.
• The flatter side of the appliance rail faces the appliance.
• The end of the appliance rail with the round hole points away from the
appliance.
• For a 2U appliance, the appliance rail uses the lower row of holes on the
appliance.
2. Use three flat-head screws to attach the appliance rail to the appliance.
3. Do steps 1 and 2 again for the left side of the appliance.
Preparing Round-Hole Rack Rails
Use the four round-hole rack plates to attach the rack rail to the rack.
To attach the round-hole rack plates:

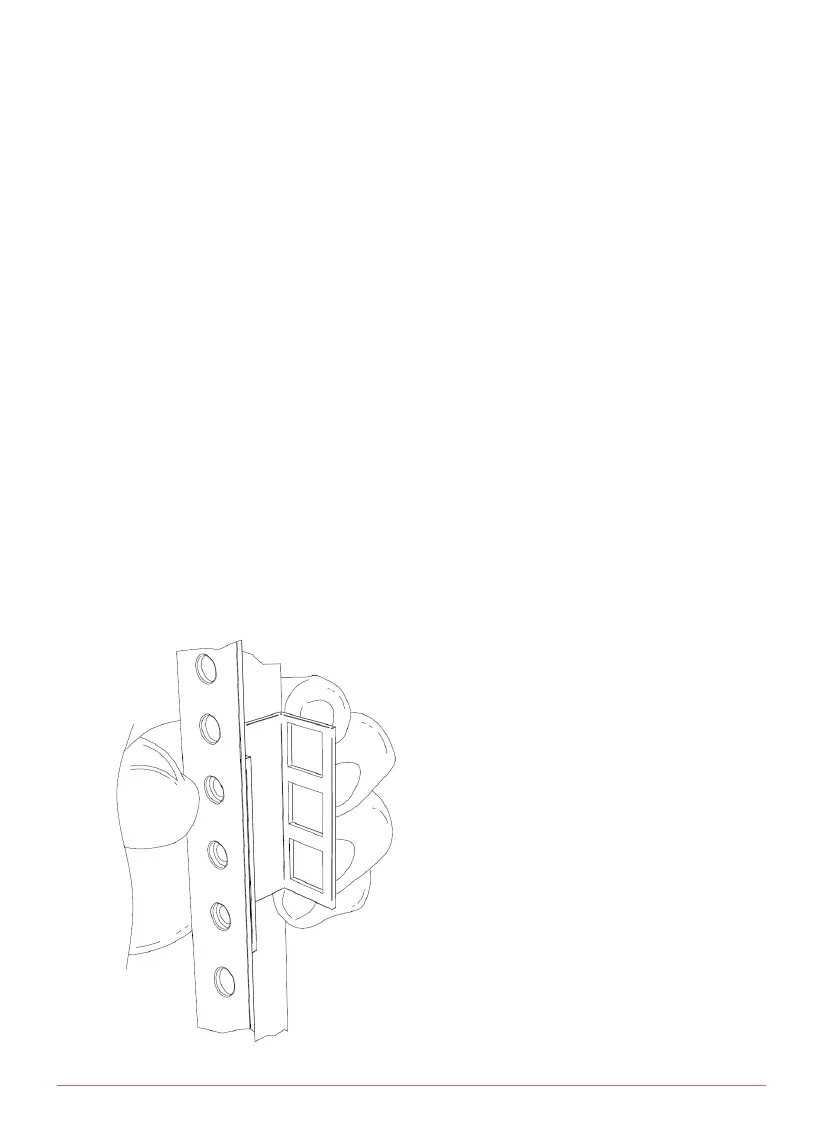

1. Align the round-hole rack plate on the rack.
Make sure that the round holes face the rack.
