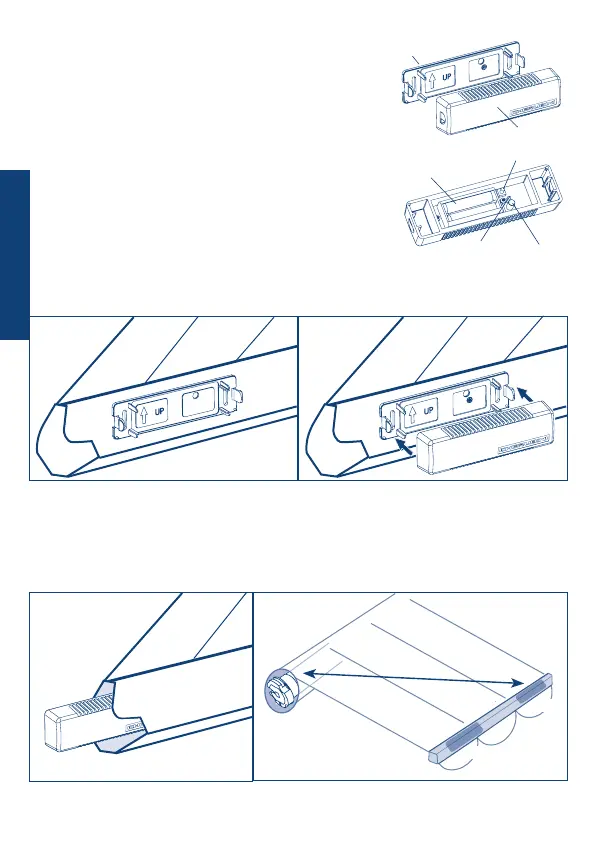

The base is attached to the terminal bar with M4 screws
(not included) or the double-sided adhesive already found
on the back. Inside of the base, there is an arrow that enables
the identication of the proper direction for assembly of the sensor: put arrow upwards.
The sensor must be assembled parallel with the end bar.
Attention: do not insert the sensor inside of the end bar prole but install
the sensor on the internal side of the end bar, at the end closest to the motor or to the
control unit or in any event within 10 metres.
22
INSTALLATION
The sensor is housed in a plastic container made up
of two parts: a base attached to the terminal bar
and a snap-on shell.
The shell contains the sensor processor board,
the battery compartment and the programming
commands.
Best Position: internal side of the bar.
Make sure that there is enough space and MISTRAL does not get damaged by
closing the awning!
YES
max 10 m
YES
NO
BATTERY COMPARTMENT
BASE
SET BUTTON
LED
SELECTOR
SHELL
ENGLISH
