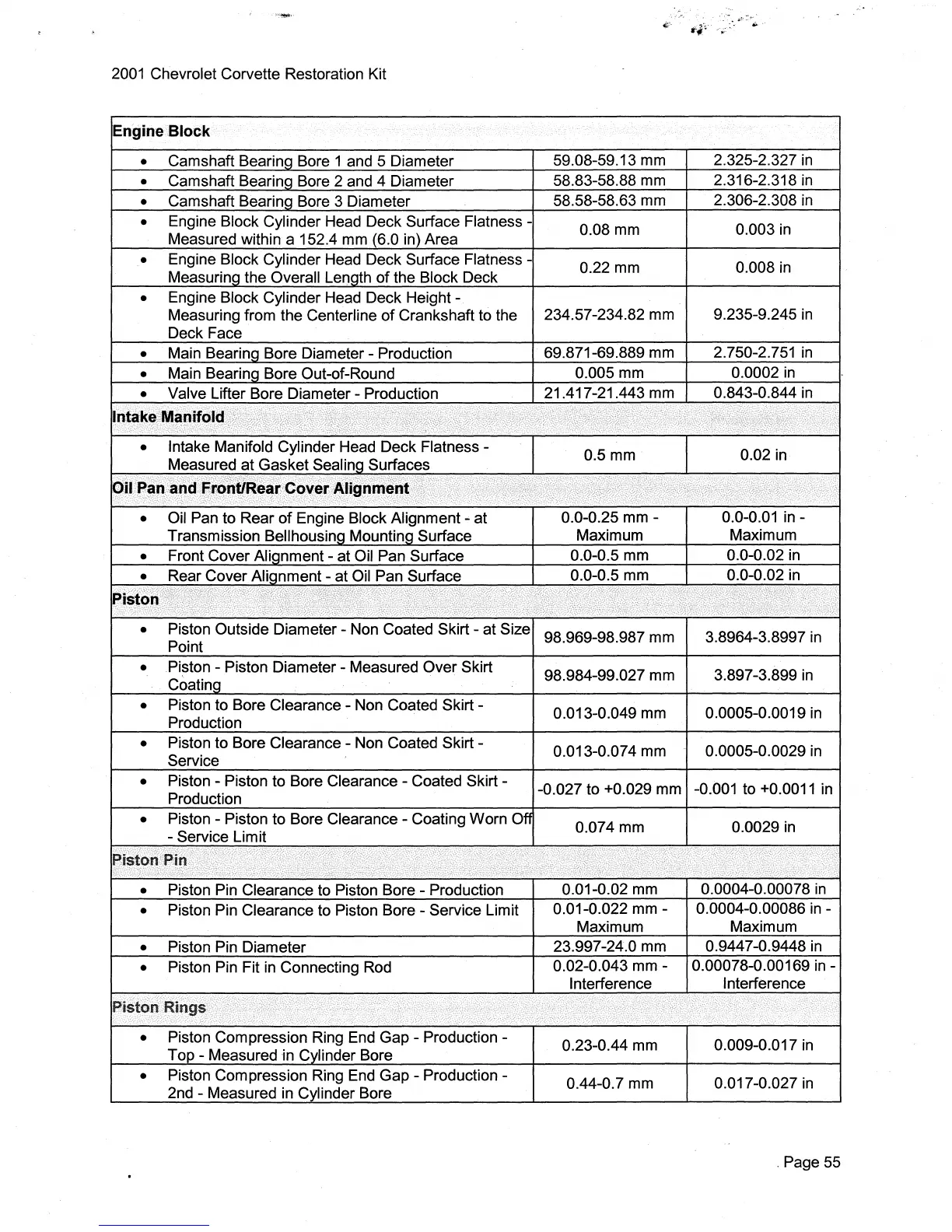

2001 Chevrolet Corvette Restoration Kit
Engine Block
Camshaft Bearing Bore 1 and 5 Diameter
59.08-59.13 mm 2.325-2.327
in
Camshaft Bearing Bore 2 and 4 Diameter
58.83-58.88
mm
2.316-2.318
in
Camshaft Bearing Bore 3 Diameter
58.58-58.63
mm
2.306-2.308
in
Engine Block Cylinder Head Deck Surface Flatness -
0.08 mm
0.003
in
Measured within a 152.4 mm (6.0 in) Area
Engine Block Cylinder Head Deck Surface
Flatness-
0.22 mm
0.008
in
Measuring the Overall Length
of
the Block Deck
Engine Block Cylinder Head Deck Height -
Measuring from the Centerline
of
Crankshaft to the
234.57-234.82 mm 9.235-9.245
in
Deck Face
Main BearinQ Bore Diameter - Production
69.871-69.889 mm
2.750-2.751
in
Main Bearing Bore Out-of-Round
0.005 mm
0.0002 in
Valve Lifter Bore Diameter - Production
21.417-21.443 mm 0.843-0.844
in
Intake/Manifold
•••••••••
••••••
••••••••••••••
......
"<1
....
i\
....
......
..........
...........i
'.'
.....
......
..'
....
......<..
..
Intake Manifold Cylinder Head Deck
Flatness-
0.5mm
0.02
in
Measured at Gasket Sealing Surfaces
()il.·p~nand.FJ'o.n~Re~rCo~~r
Aji9nm~~t
'i
.......
.ii:.
.....i
..•.......•...........
.
...
'.
.
.......
......i
........
".
Oil Pan to Rear
of
Engine Block Alignment - at
0.0-0.25 mm -
0.0-0.01
in-
Transmission Bellhousing Mounting Surface
Maximum
Maximum
Front Cover Alignment - at Oil Pan Surface
0.0-0.5 mm 0.0-0.02 in
Rear Cover Alignment - at Oil Pan Surface
0.0-0.5
mm
0.0-0.02 in
Pisi()n.~·
•••...
~i
.......••••.•••......••.....
. ······>i···
. ....< .•
'·i..l
............................................
i
..............
·
••••.••.••••
·.f
i
.········.i
.i.··\i
...
·.i.··
........
·
........
.
...•....
·.·ii
....................
· .
.
•......
Piston Outside Diameter - Non Coated Skirt - at Size
98.969-98.987 mm
3.8964-3.8997
in
Point
Piston - Piston Diameter - Measured Over Skirt
98.984-99.027 mm
3.897-3.899
in
Coating
Piston to Bore Clearance - Non Coated Skirt -
0.013-0.049 mm
0.0005-0.0019 in
Production
Piston to Bore Clearance - Non Coated Skirt -
0.013-0.074 mm
0.0005-0.0029 in
Service
Piston - Piston to Bore Clearance - Coated Skirt -
-0.027 to +0.029 mm -0.001 to +0.0011 in
Production
Piston - Piston to Bore Clearance - Coating Worn Off
0.074
mm
0.0029
in
- Service Limit
IPist.on
................................
••••••••
•••••••••••
•••••••••
•••••••
.
.....
·····
..
ii.
ii
..
·
.................
·iiii
.
...............
••••
.
...
>
..•.••••
.
•.................•......
......
.
..
f
...••
·f
....
........
'i
...........
.'
.....•....
........•..........•..•......•
......................................
Piston Pin Clearance to Piston Bore - Production
0.01-0.02
mm 0.0004-0.00078
in
Piston Pin Clearance to Piston Bore - Service Limit
0.01-0.022
mm
-
0.0004-0.00086
in
-
Maximum
Maximum
Piston Pin Diameter
23.997-24.0
mm
0.9447-0.9448
in
Piston Pin Fit
in
Connecting Rod
0.02-0.043 mm -
0.00078-0.00169
in
-
Interference
Interference
I01"':t.~-Ringsi
....
.
.•.....
.........
••••••••••••••••••
' . .
......
...
.....
.
......
.
..................
Piston Compression Ring End Gap -
Production-
0.23-0.44 mm
0.009-0.017
in
Top - Measured in Cylinder Bore
Piston Compression Ring End Gap - Production -
0.44-0.7 mm 0.017-0.027
in
2nd - Measured in Cylinder Bore
,Page
55
