256 Vehicle Care
To Access:
1. Open the top cover.
2. Remove the top cover by pushing inward
on the latch.
3. Pull the cover upward.
To Install:
1. Insert the tabs on the back of the cover
into the slots in the instrument panel.
2. Align the clip with the slots in the
instrument panel.
3. Press the cover into place.
See your dealer if additional assistance is
needed.

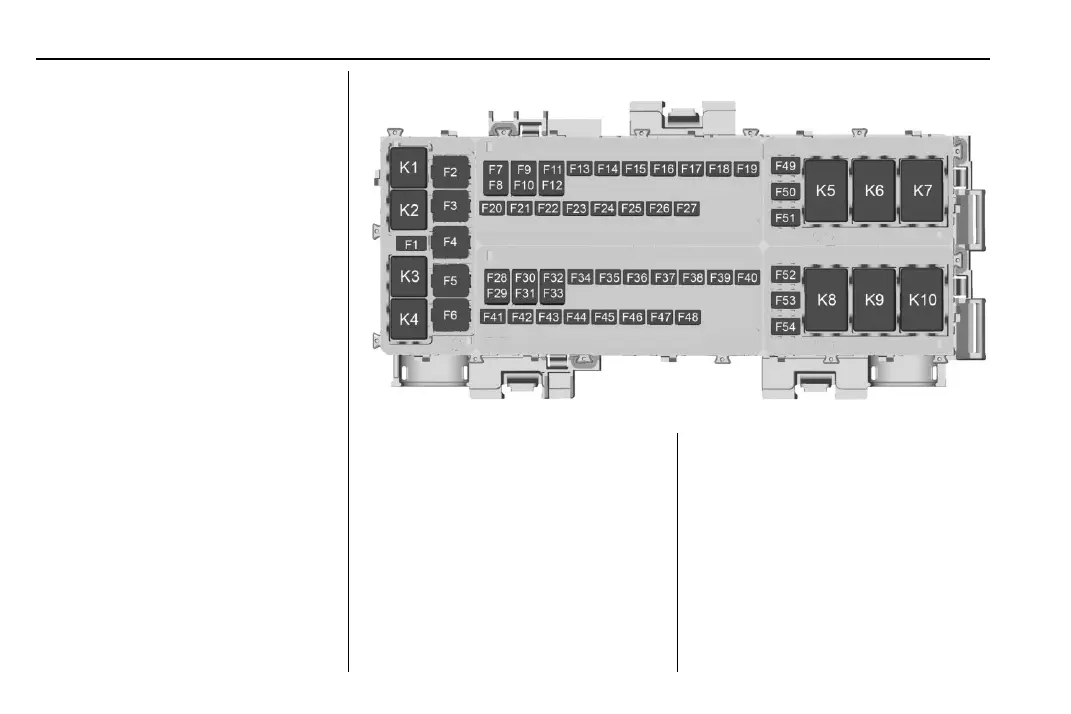

The vehicle may not be equipped with all of
the fuses and relays shown.
Fuses Usage
F1 –
F2 Front wiper
F3 Cooling fan 1
F4 –
F5 Cooling fan 2
F6 Front blower
Fuses Usage
F7 Automatic level control
F8 Shifter interface board
module
F9 –
F10 Display IP cluster/HVAC/
Center stack module
F11 USB
F12 –
