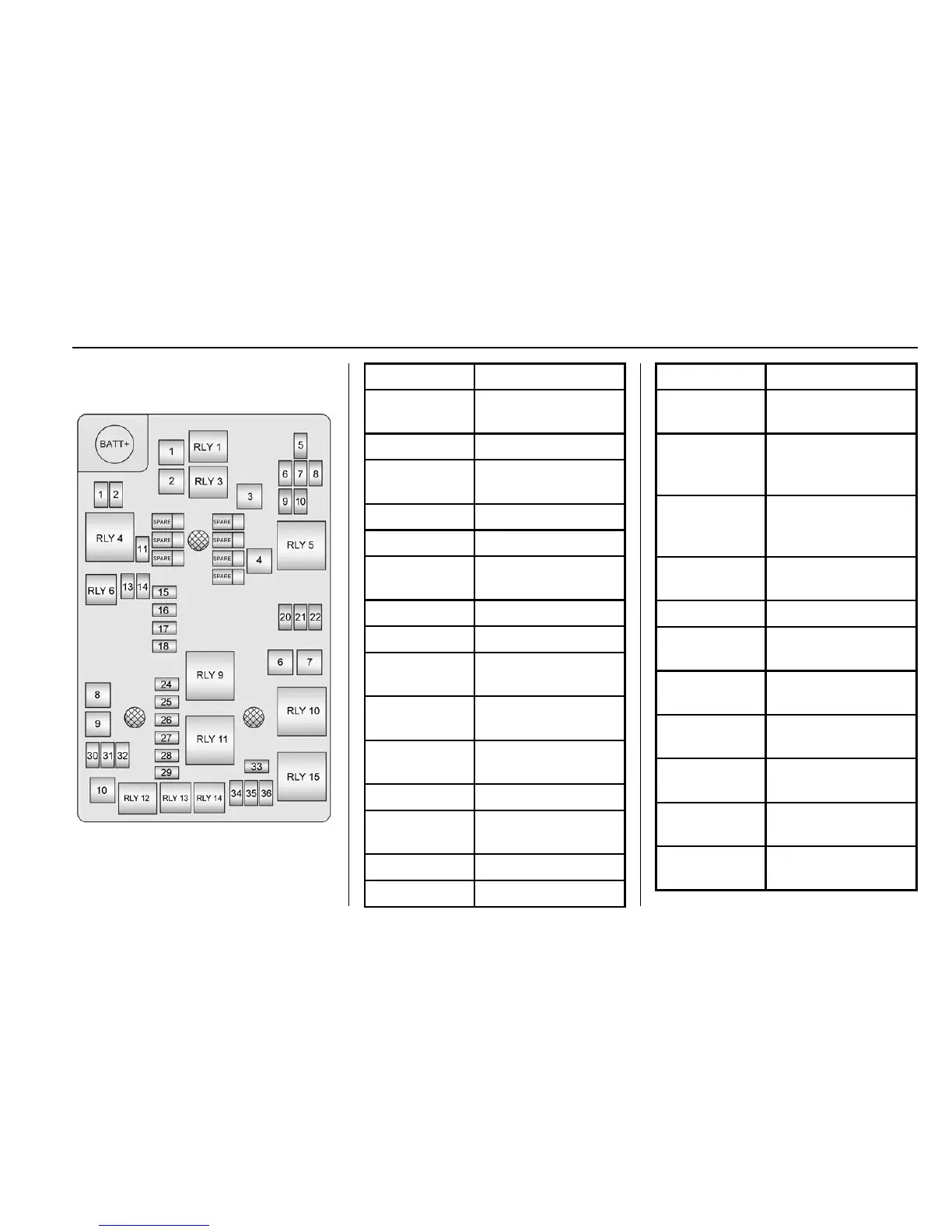

LWE Engine
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Mini Fuses Usage
1 Antilock Brake
System Valve
2 Sunroof
5 Outside Rearview
Mirror
6 AOS/ROS
7 ABS Oil
8 Regulated Voltage
Control
9 Rear Wiper
10 Not Used/IBS*
11 Rear Window
Defogger
13 Not Used/SAI
Valve*
14 Heated Outside
Rearview Mirror
15 Heated Seat Front
16 Fuel System
Control Module 1
17 Canister Vent
18 Washer
Mini Fuses Usage
20 Engine Control
Module 5
21 Fuel System
Control Module 2/
Leveling
22 Transmission
Control Module 1/
DC-DC Converter
24 Engine Control
Module 1
25 Coil
26 Engine Control
Module 4
27 Engine Control
Module 3
28 Engine Control
Module 2
29 Injector/
Ignition Coil
30 Engine Control
Module
31 Air Conditioning
Compressor Clutch
