Cheyenne HAWK PEN - Connecting the Power Unit

27
EN
! Check that the safety cartridge is firmly
seated.
! To remove the safety cartridge, turn it
anti-clockwise and remove it from the
handle.
5.3 Connecting the power unit
CAUTION
Risk of short circuits and risk of mild
electric shocks
If cable or cable connection is visibly
damaged, there is a risk of electric
shock and damage to the electronics.
! Perform a visual inspection of the HAWK
PEN and the cable for signs of damage,
e.g. a defective cable connection.
! Never bend the connecting cable
while in operation.
! Observe the operating instructions
for the particular power unit.
CAUTION
Cables constitute a trip hazard
People can stumble over inappropriately
routed cables and get injured.
! Route all cables so that no-one can
stumble over them or pull them
accidentally.

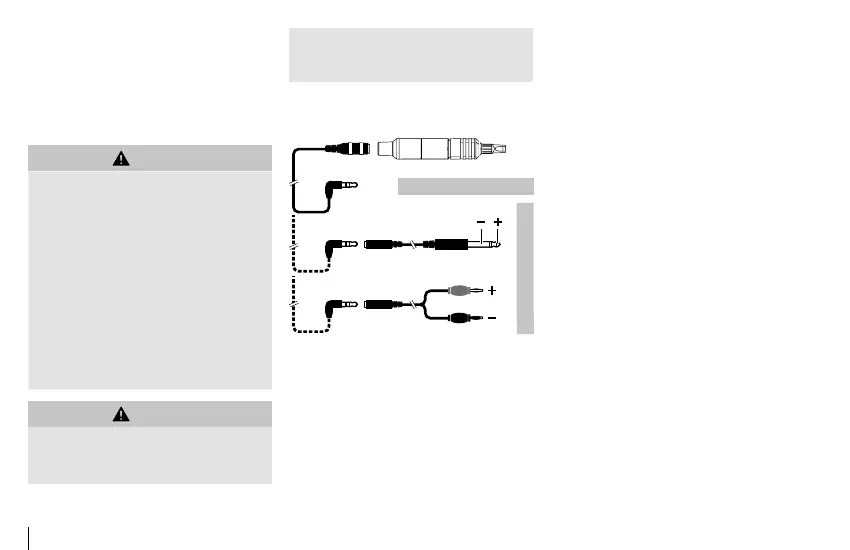

There are three ways to supply power to
the HAWK PEN:
1. Connecting it to a Cheyenne Power Unit
with the connecting cable provided in
the scope of delivery (recommended)
2. Connecting it to an third-party power
unit with the 6.3 mm jack and the cable
adapter supplied
The third-party power unit must deliver
approx. 6 to 13 V DC. If more than about
13V is connected to the HAWK PEN, it
will shut down automatically.
3. Connection to a third-party power
supply using the optionally available
Y-cable adapter with banana plugs
The red banana plug must be
connected to the positive terminal
while the black banana plug must be
connected to the negative terminal of
the third-party power unit.
! Connect the socket of the connecting
cable (supplied) to the connection on
the drive unit of the HAWK PEN.
! Plug the jack of the connecting cable
fully into the output socket on the
power unit.
If you are using an third party power unit,
connect up its terminals correctly, as
described in the operating instructions
of the third party power unit.
! Connect the power unit to the mains
power supply.
! Cover the Power Unit or the third party
power unit and the HAWK PEN TRAY
with a plastic sheet.
Third party power unit
Cheyenne Power Unit
Capable adapters
provided
Y cable adapter
Cheyenne HAWK PEN
