5.4 Fitting the protective hose
ATTENTION
Damage to drive caused by fluid
If fluid gets inside the drive or on the
connection, this can corrode the electri-
cal and mechanical components.
! Always use a protective hose with
a diameter of 26 to 31 mm. This
corresponds to a hose width of 40 to
50mm.
! Remove the connecting cable from
theHAWK PEN.
! Cut o a section of protective hose of
an appropriate length.
! Slide this section of protective hose
completely over the connecting cable.

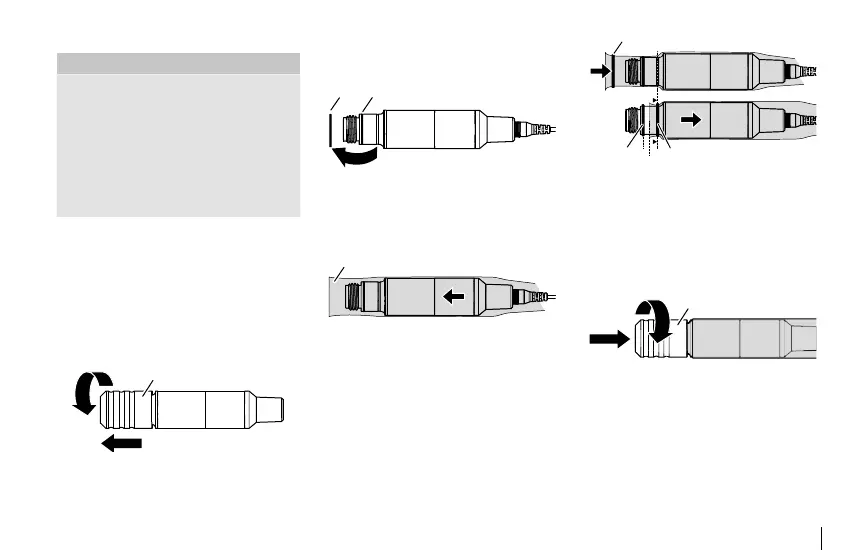

! Completely unscrew the handle (1)
from the drive.
Both O-rings (2 and 3) become visible.
! Remove the large O-ring (2) and store
it safely. The small O-ring (3) remains
in its groove.
! Reconnect the connecting cable and its
fitted protective hose to the HAWK PEN.
! Pull the end of the protective hose (4)
completely over the HAWK PEN.
! Slide the large O-ring (2) over the
protective hose. Then pull the protective
hose with its fitted O-ring back until it
locates back in its groove. Ensure that
the end of the protective hose locates
precisely between the O-rings.
! If necessary, adjust the position of
theprotective hose by carefully sliding
it under the O-ring. While doing so,
the O-rings must not be pulled out of
their respective grooves.
! Screw the handle (1) back onto
thethread of the drive unit.
