SKU 3633 For technical questions, please call 1-800-444-3353. Page 11
Part # Description Qty. Part # Description Qty.
1B Wire Assy. (Black, 10 Ga. x 3 Lg.) 1 14B Cover - Female 1
2B Wire Assy. (Black, 10 Ga. x 6 Lg.) 2 15B Lock Washer 2
3B Wire Assy. (Black, 10 Ga. x 1-1/2 1 16B Cover - Solenoid 1
4B Strap - Copper 2
17B
*
Connector –
Female, Molded
1
5B Washer (5/6) 1 18B Screw 2
6B Wire Assy. (Battery Black, 60) 1 19B Bracket 1
7B Strap - Copper 1 20B Capscrew 3
8B Wire Assy. (Black, 6 Ga. x 3-1/2 Lg.) 1 21B Spacer 3
9B Wire Assy. (Battery Red, 60) 1 22B Lock Washer (06) 3
10B Solenoid – 12 Volt 2 23B Nut (M6) 6
11B Washer 4 24B Nut Bushing 3
12B Nut 6 25B Screw 7
13B Terminal Tab 4
* Includes parts called “RED”, “YELLOW” and “GREEN”. See Diagram below.

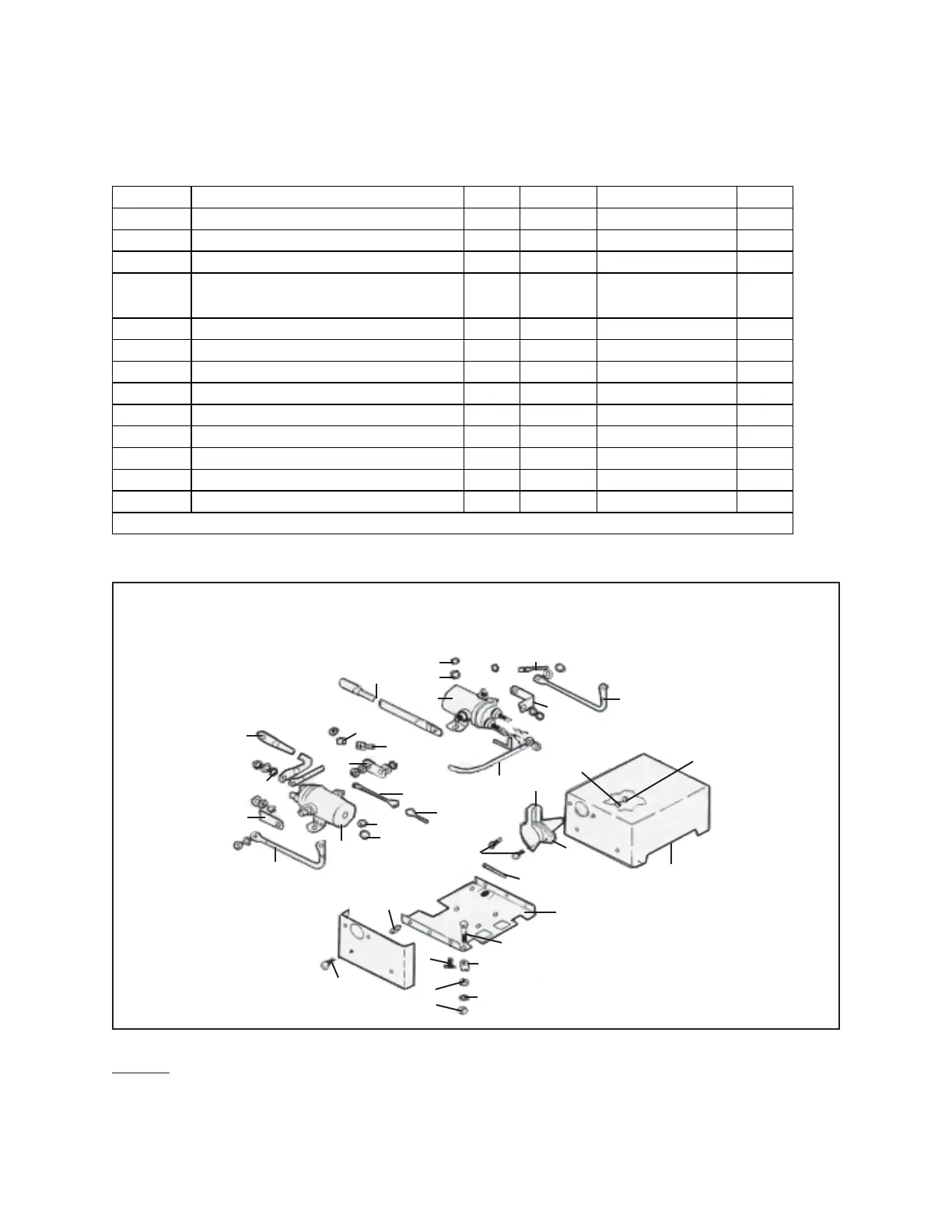

SOLENOID ASSEMBLY PARTS LIST
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
SOLENOID ASSEMBLY DIAGRAM
23B
22B
21B
25B
20B
19B
24B
25B
1B
2B
10B
11B
12B
3B
RED
4B
5B
6B
7B
GREEN
13B
8B
9B
10B
11B
12B
13B
YELLOW
2B
4B
14B
18B
17B
16B
12B
15B
