Page 9For technical questions, please call 1-800-444-3353.SKU 93213

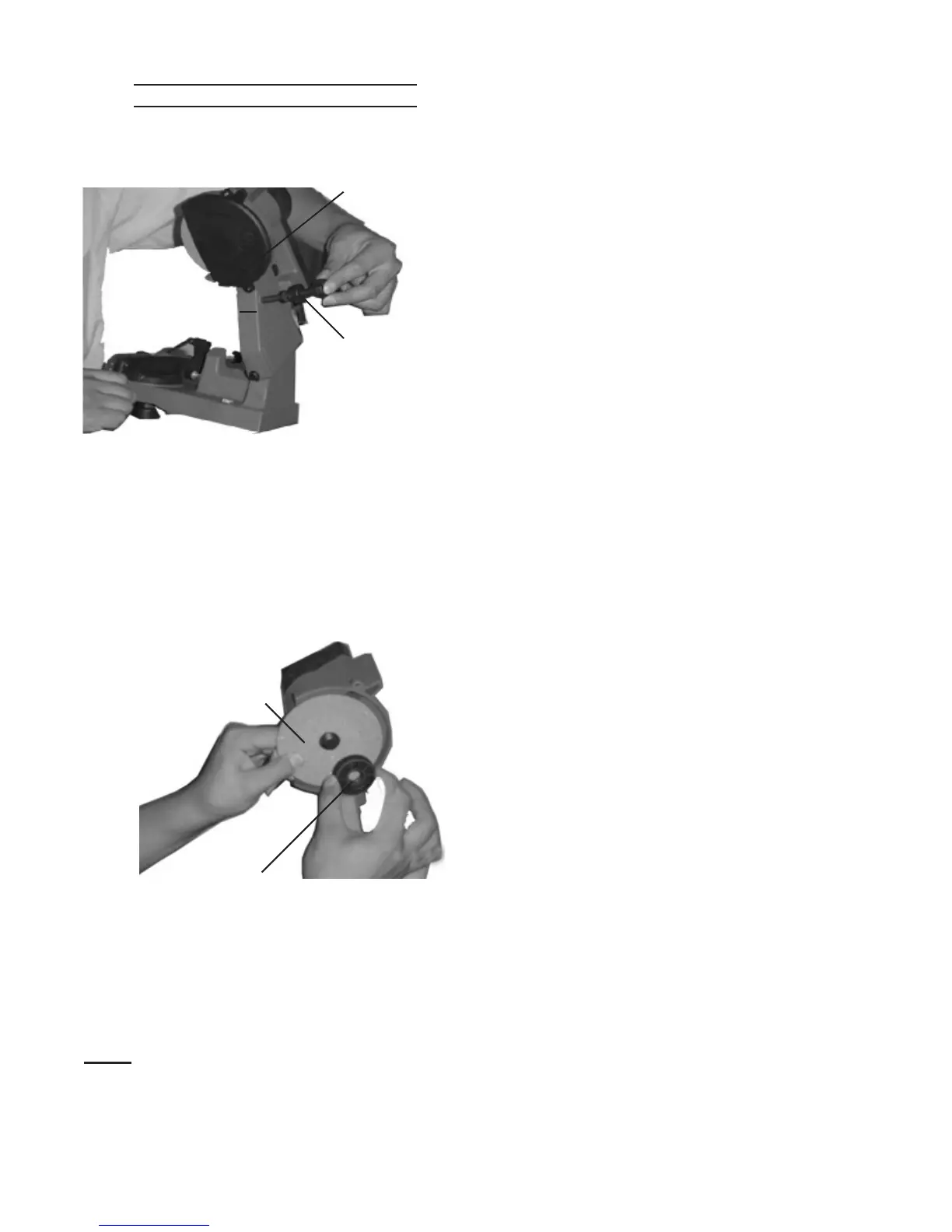

Mounting a Grinding Wheel
Refer to the Assembly Drawing on page 10.
FIGURE 3
Lock Stop (6)
Top Housing (4B)
Grinding Wheel
Cover (11B)
1. Raise the Top Housing (4B) and lock it
in the up position by tightening the Lock
Stop (6).
Remove the two screws holding the 2.
Grinding Wheel Cover (11B). Set the
cover aside.
FIGURE 4
Grinder Lock Cap (9)
Grinding
Wheel (8)
3. Unscrew the Grinder Lock Cap (9) that
holds the Grinding Wheel (8) in place.
Install the new wheel on the Grinding 4.
Wheel Base (7), making sure it ts
properly.
Note: Do not use a grinding wheel if it is
chipped, cracked, or worn. You can
check if the wheel has cracks not visible
to the human eye by hanging it up by
the central hole and tapping it with a non
metal object (ie: screwdriver handle). If
it is in good condition it will produce a
metallic sound. A dull sound indicates a
crack or break.
Replace the Grinder Lock Cap (9).5.
Replace the Grinding Wheel Cover 6.
(11B).
Release the Lock Stop (6) and lower the 7.
Top Housing (4B).
Never operate tool without the Grinding 8.
Wheel Cover in place.
