Installation Instructions MSM1U / MTM1U / LSM1U / LTM1U
3

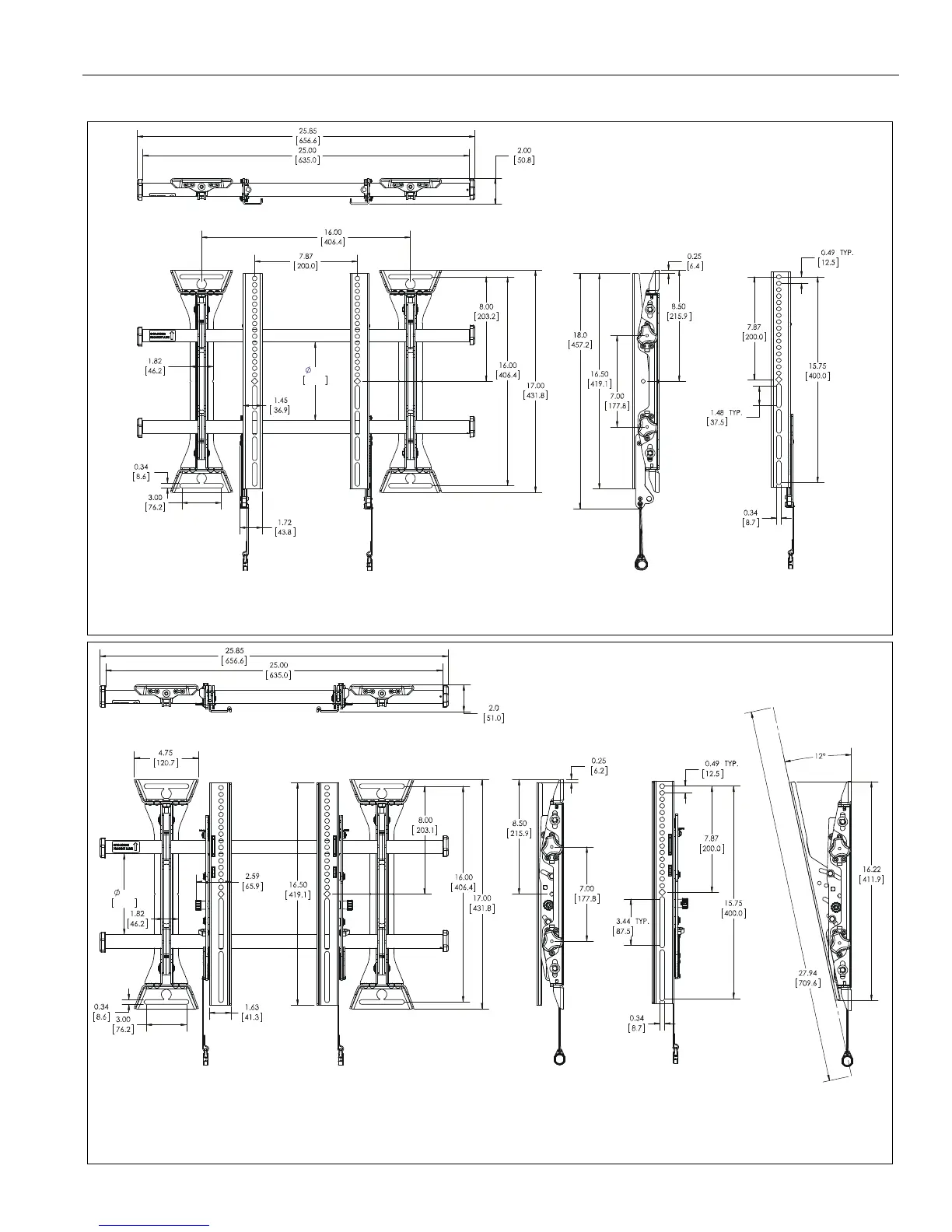

DIMENSIONS
6.00
152.4
RAILS CAN BE SLID LEFT OR RIGHT
FOR OFFSET
1. MAXIMUM MOUNTING PATTERN IS 22.25" (565 mm) WITHOUT REVERSING UPRIGHTS
2. MAXIMUM MOUNTING PATTERN IS 25.6" (650 mm) WITH REVERSING UPRIGHTS
3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19 mm)
MTM1U
DIMENSIONS: INCHES
[MILLIMETERS]
6.00
152.4
RAILS CAN BE SLID LEFT OR RIGHT
FOR OFFSET
1. MAXIMUM MOUNTING PATTERN IS 22.7" (576 mm) WITHOUT REVERSING UPRIGHTS
2. MAXIMUM MOUNTING PATTERN IS 25.3" (642 mm) WITH REVERSING UPRIGHTS
3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19) mm)
DIMENSIONS: INCHES
MSM1U
[MILLIMETERS]
