Chigo CS-25V1A-H1; CS-35V1A-E2; CS-50V9A-S; CS-70V9A-T - 11. Capacity Correction Factors; Cooling Capacity Ratio Vs. Outdoor Temperature; Heating Capacity Ratio Vs. Outdoor Temperature

11
Capacity Correction Factors

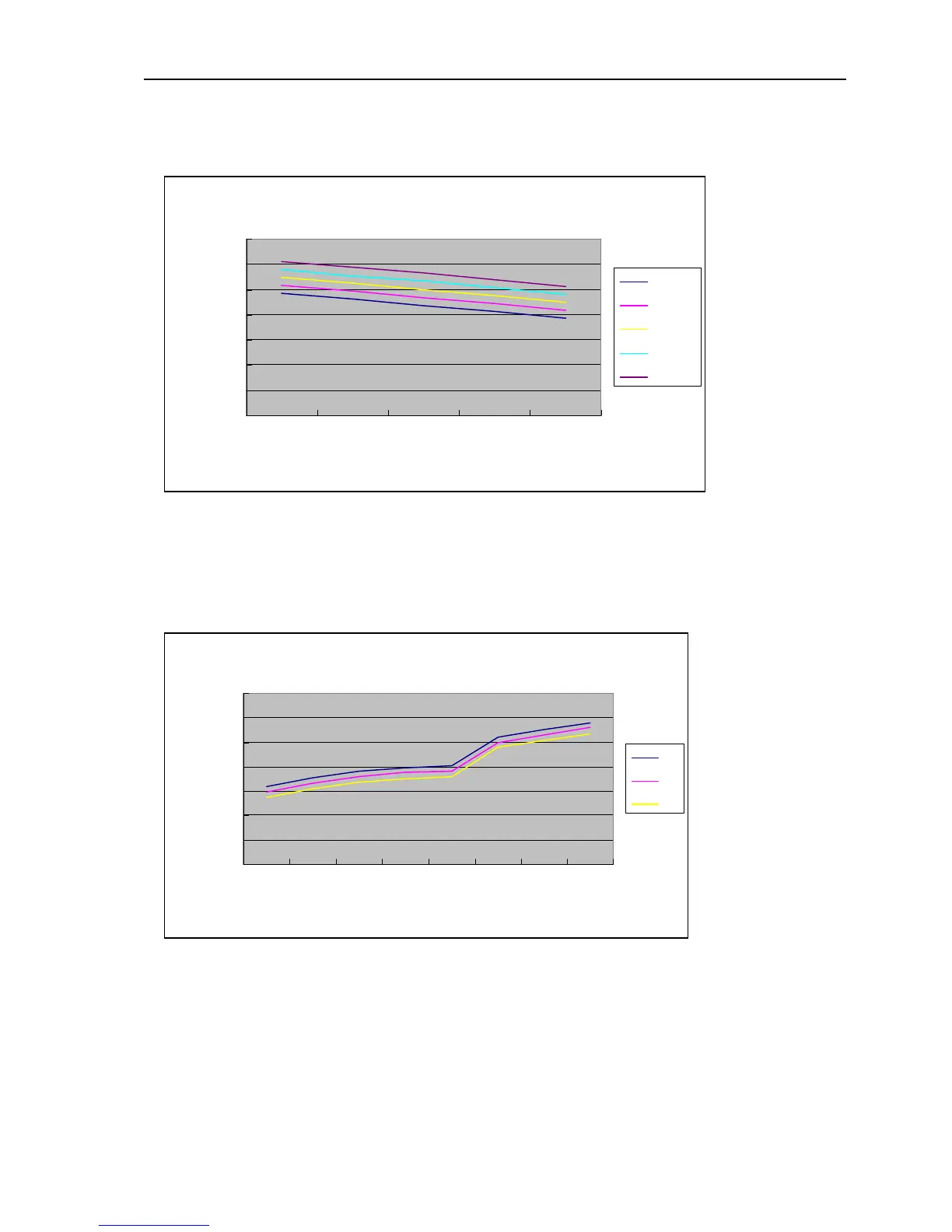

Cooling Capacity Ratio Vs. Outdoor Temperature
Heating Capacity Ratio Vs. Outdoor Temperature
Cooling Capacity Correction Factor
0
0.2
0.4
0.6
0.8
1
1.2
1.4
77 86 95 104 115
Outdoor Temp.(deg F)
Capacity Ratio
90/73
84/70
81/66
75/63
72/59
Heating Capacity Correction Factor
0
0.2
0.4
0.6
0.8
1
1.2
1.4
5 14203036455059
Outdoor Temp.(deg F)
Capacity Ratio
59
68
77
