Chigo CTB-36CR1 - Exploded View

R410A50Hz Universal Outdoor Series Technical ManualFloor ceiling
110
GD Chigo Heating & Ventilation Equipment Co., Ltd.

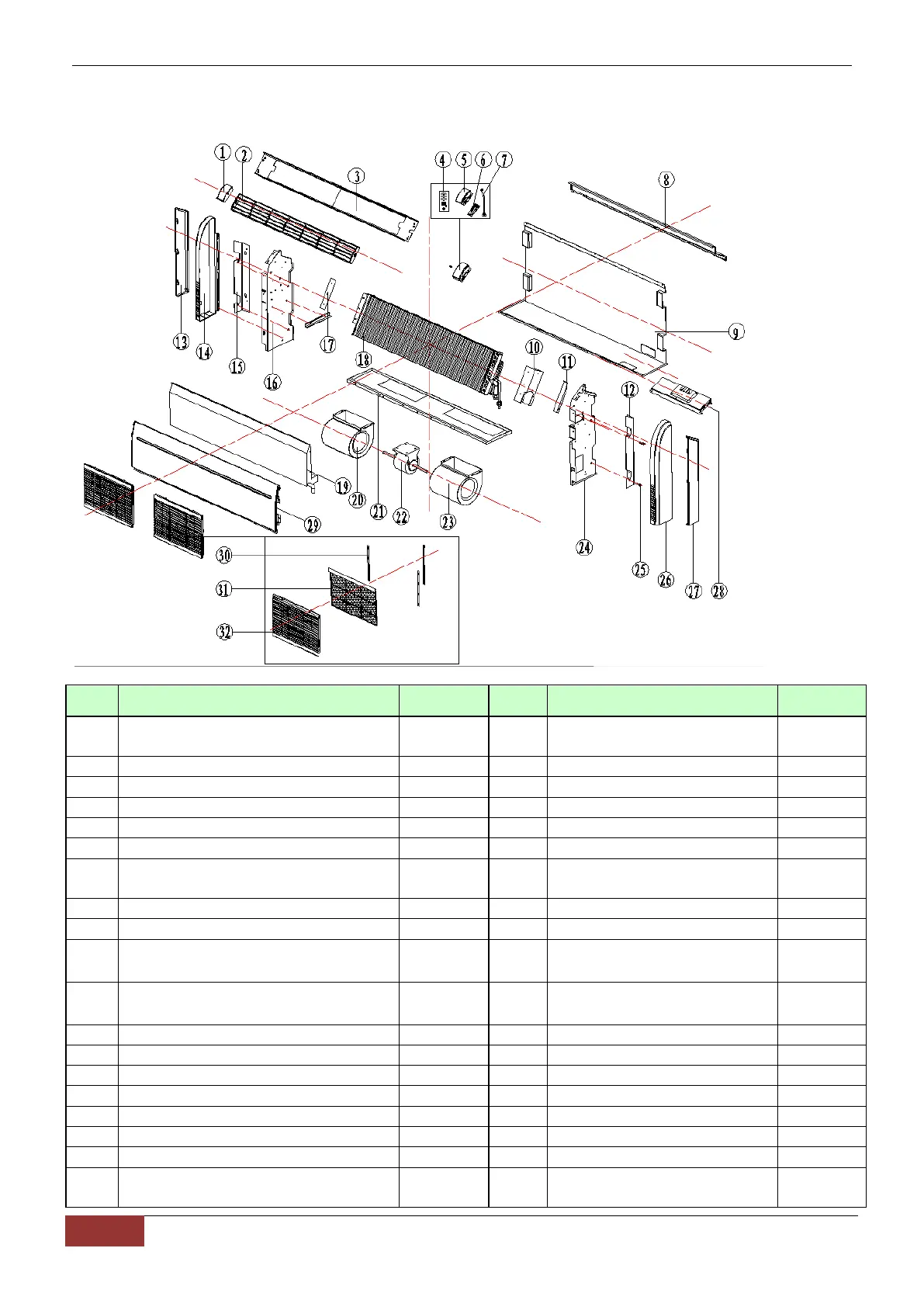

9.Exploded View
9.1 CUA-18HR1,CUA-18CR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
70 wind guide connected board
assy B
1 22
indoor fan motor
1
2
Wind guide frame assy
2
23
Fan wheel(right)
1
3
Air outlet support
1
24
Right side board
2
4
Display film
1
25
Hexagonheaded bolt
4
5
Display panel
1
26
Right cover
4
8
Top Cover
1
27
Right accessories
1
9
Weld assembly for rear panel
1 28
Indoor e-part box
assembly
1
10
Evaporator right fixed plate
1
28.1
Electric box
1
11
Evaporator right positioning plate
1
28.2
Indoor PCB
1
12
Right mounting support
1 28.3
Temperature sensors
（
indoor )
1
13
Left accessories
1 28.4
Temperaturesensor
（
evaporator)
1
14
Left cover
1
28.5
Transformer
1
15
Left mounting support
1
28.6
Terminal
1
16
Left side board
1
28.7
Display lamp panel
1
17
Evaporator left positioning plate
1
29
Front panel component
1
18
Evaporator assy
1
30
70 filter mound layer 2
1
19
Water pan components
1
31
70 filter
2
20
Fan wheel(left)
1
32
70 grille
2
21
Weld assembly for fan wheel
mounting plate
1
