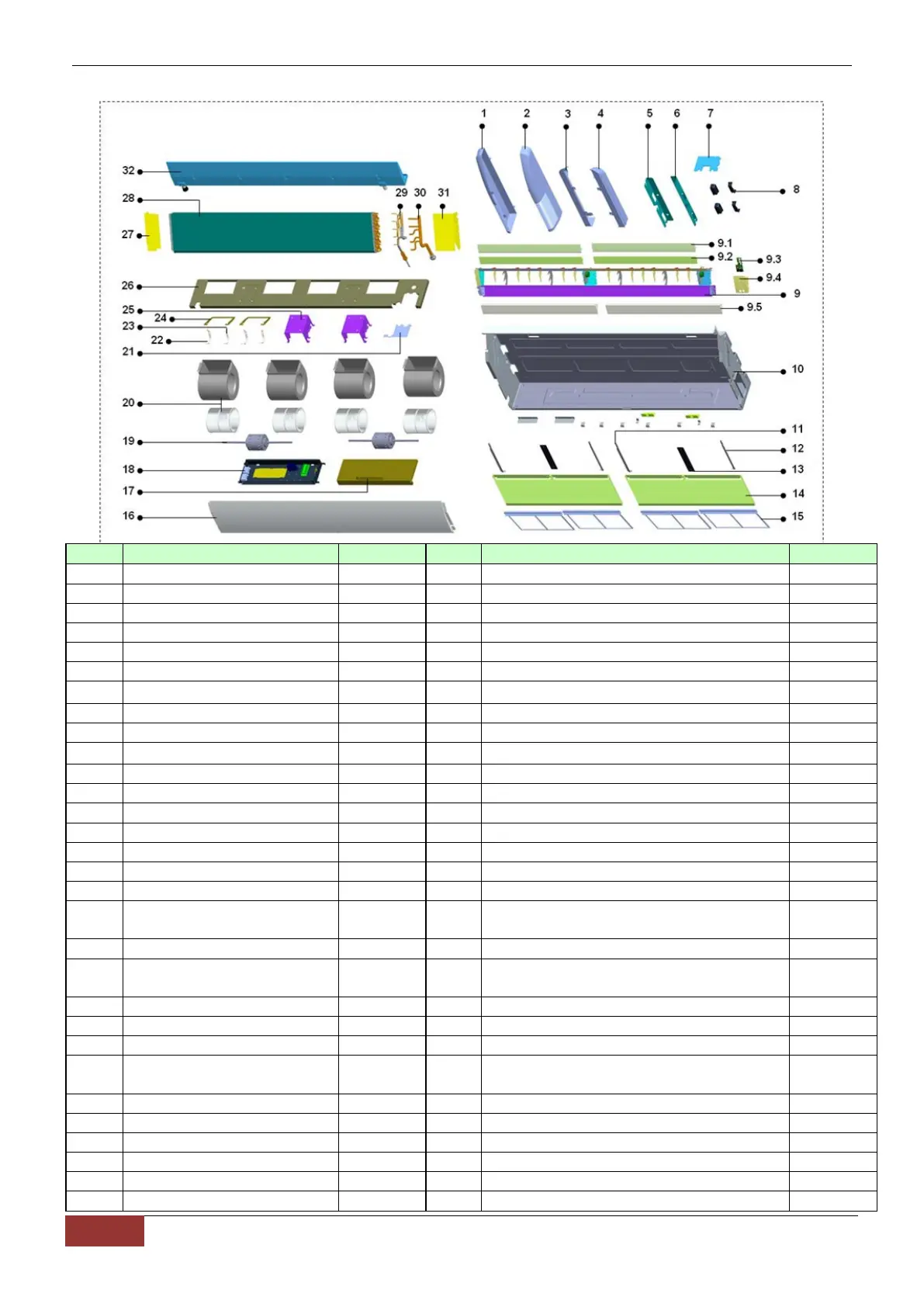

9.3 CUA-48HR1, CUA-60HR1,CUA-48CR1, CUA-60CR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Right cover
1
16
top Cover assembly
1
2
Left cover
1
17
electric box cover
1
3
Right seal plate
1
18
indoor PCB assembly
1
4
left seal plate
1
18.1
electric box
1
5
Right hoisting plate
1
18.2
indoor PCB
1
6
Left hoisting pate
1
18.3
fan capacitor
2
7
Rat guard
1
18.4
temperature sensors
（
indoor )
1
8
Handle
4
18.5
temperature sensors (evaporator )
1
9
Air out frame assy
1
18.6
transformer
1
9.1
Horizontal louver
，
up
2
18.7
terminal
1
9.2
Horizontal louver, down
2
19
indoor fan motor
2
9.3
display lamp panel
1
20
wheel volute for slim type
4
9.4
display panel Installing box
1
21
pipe clamp
1
9.5
Foam for air outlet frame
2
22
left gland for motor shaft sleeve
2
9.6
vertical step motor
1
23
right gland for motor shaft sleeve
2
9.7
horizontal step motor 1
1
24
Motor separating board
2
9.8
horizontal step motor
1
25
Holder for fan motor
2
9.9 display film 1 26
weld assembly for intermediate
transverse girder
1
9.10
End bearing of louver
4
27
right mounting plate of evaporator
1
9.11
intermediate bearing of
louver
8 28 evaporator 1
9.12
driving lever for louver
2
29
shunt capillary assembly
1
9.13
follower lever for louver
2
29.1
1
9.14
Louver holder
2
29.2
distributor
1
9.15 Guard vane 12 30
air inlet header pipe assembly of
evaporator
1
10
Chassis
1
30.1
Single Connector
1
11
left retaining plate
2
31
left mounting plate of evaporator
1
12
right retaining plate
2
32
weld assembly of Water drain pan
1
13
filter snap-gauge
2
32.1
water outlet rubber cover
1
14
air inlet grille
2
33
remote controller
1
15
Filter
4
