Chigo CTB-36CR1 - Part 4 Installation

R410A50Hz Universal Outdoor Series TechnicalManual Outdoor unit
151
GD Chigo Heating & Ventilation Equipment Co., Ltd.
COU-48CR1 ,COU-60CR1

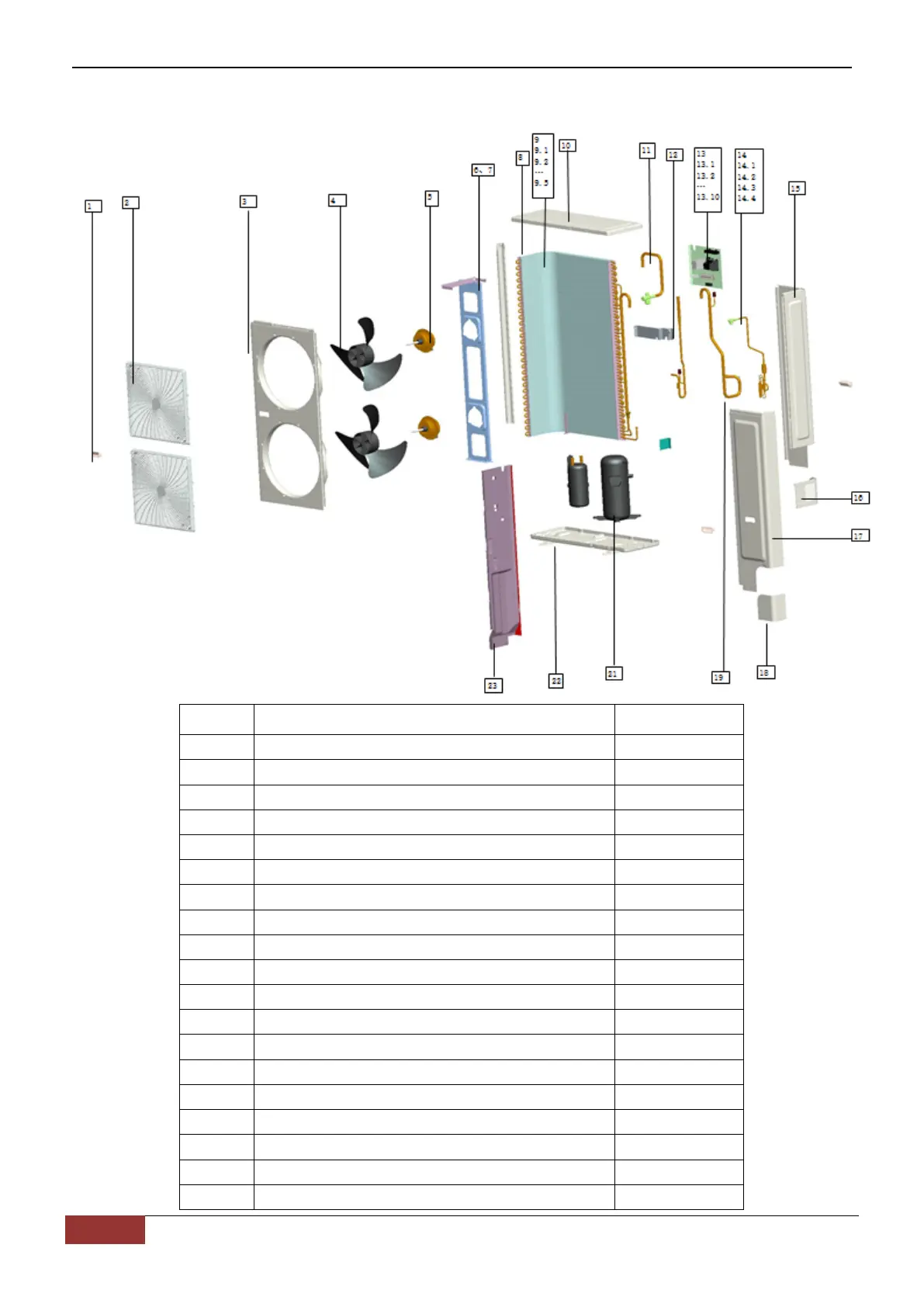

No. Part Name Quantity
1 Handle 3
2 Top net 2
3 Front panel 1
4 Propeller fan 2
5
Fan motor
2
6
Holder for fan motor
1
7
Joint board for fan motor support
1
8
column
1
9 Condenser assy 1
9.1 Condenser unit 1
9.2 condensor collecting pipe assy 1
9.4 Condenser shoek-proof inlet pipe 1
9.5 distributing capillary assy 1
10 Cover 1
11
Cut-off valve DN16
1
12
Valve holder
1
13
E-parts assy
1
13.1
Discharge temp sensor
1
13.2 Patchboard 1
