User Guide
9
Lifting capacity 200 Kg (31 stone)(440 lb) Models: 200L,200LT & 200 LTX
272 Kg (42 stone)(598 lb) Models: 300
Case construction ABS case flame retardant
Lifting Range Approximately 2020mm**
No of Lifts per Charge 200*
Battery voltage 24 vdc
Overload cut out The hoist cannot lift more than 1.5 times the maximum load,
ie 300kg for 200kg model and 408kg for the 272kg hoist.
Hand control Electronic hand control
Track Aluminium extruded track
Low battery indication Audible warning device on hoist + visual
Clearance dimension Top of track to bottom of carrybar hook at max height is 490mm
(see Fig. A)
*620mm up and down continuous cycle with average 75kg (11.3 stone) patient weight.
**This is adjustable and should be set by the installer to meet the
requirements of the user. Typically the carry bar would stop about 300mm from the floor.
CE MARK
The Chiltern Invadex Wispa Hoist carries the CE mark and complies with EC Directives:
Medical Device Directive(93/42/EEC)
EMC Directive (89/336/EEC)
Low voltage Directive (73/23/EEC)
Further assistance
Please telephone any Chiltern Invadex Divisional Office for further assist-
ance. Remember that service calls made after the guarantee period will be
chargeable. If the maintenance of the equipment is the responsibility of a
third party, for example the Social Services, please contact them in the first
instance.

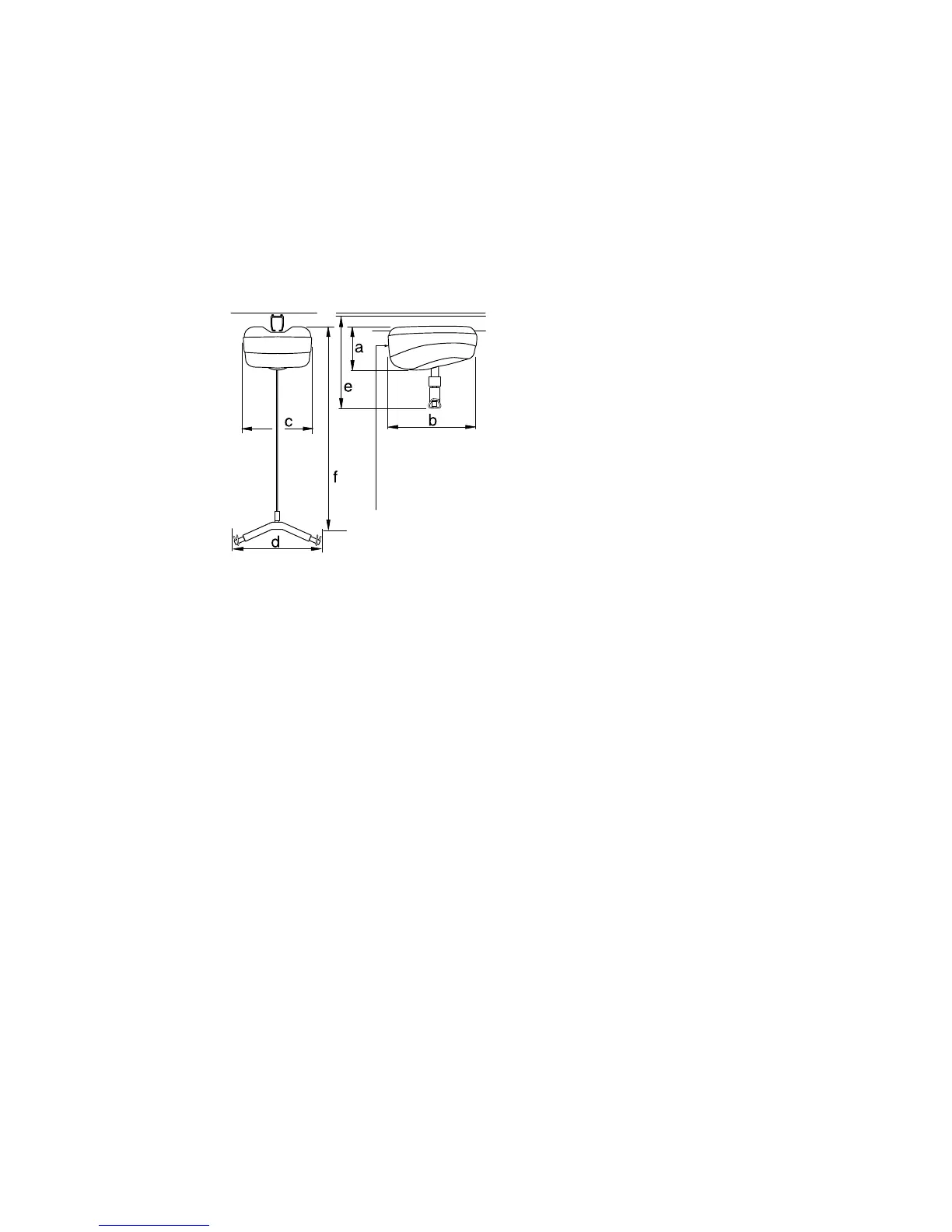

Hoist Specification
a 215mm
b 420mm
c 270mm
d 460mm
e 525mm
f 2020mm
Fig. A
Label indicates serial number
