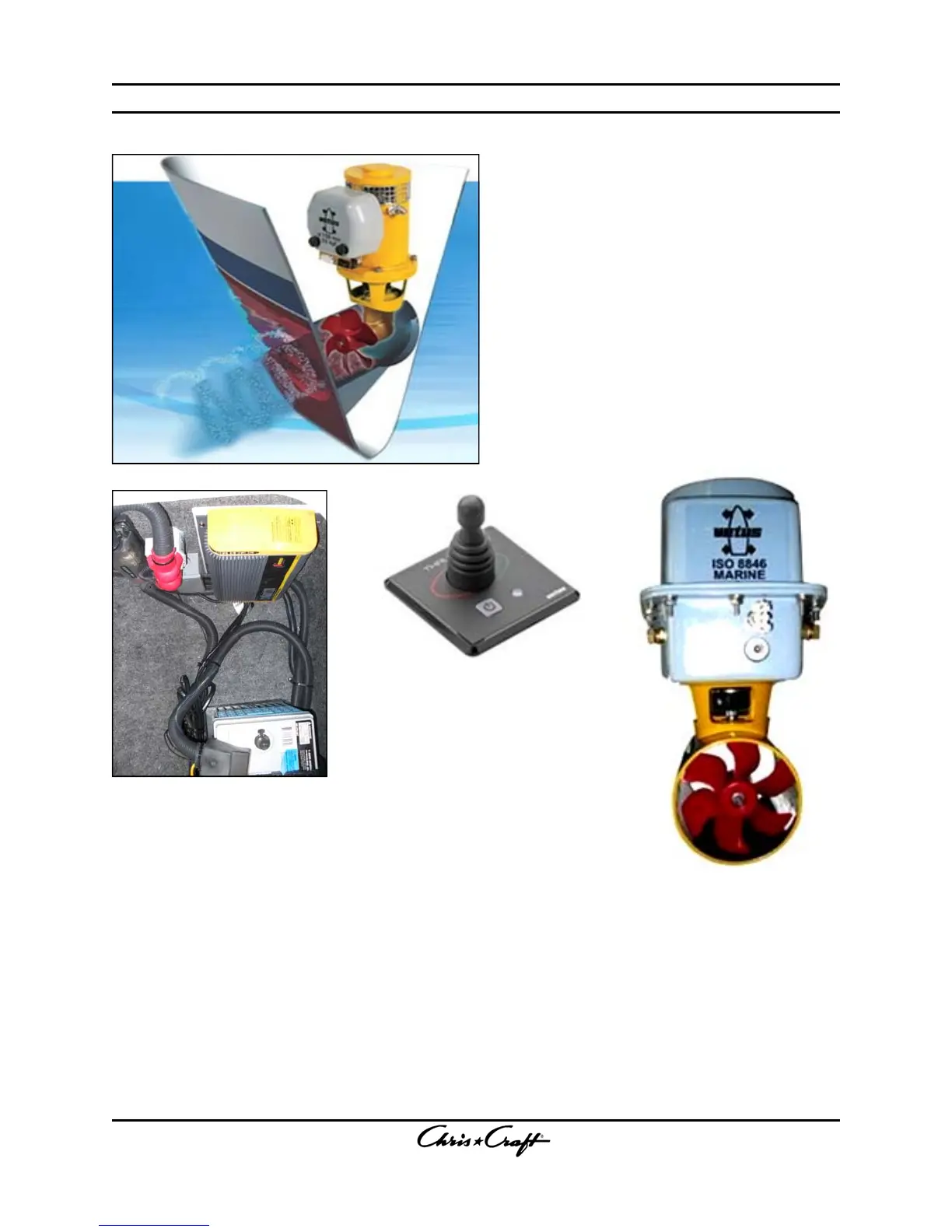

Figure 3-33
Bow Thruster
Joy Stick
Procedure to activate the bow thruster’s joystick:
•
Power Switch to ON position.
• Depress the Power Button on the Joy stick for five seconds.
• There should be an audio alarm sounding during this operation.
Figure 3-32
DC Power Source
Your boat may be equipped with a bow
thruster which will allow you to dock with
confidence, control & composure. Even
skilled skippers need an extra hand battling
sudden wind shifts, strong currents or
congested marina docking assignments.
Thrusters inspire docking confidence and
provide a gentle push that you will control,
away from or to the dock or seawall. If you
have not experienced using a bow thruster
it is recommended that you are checked out
by the dealer on how to use this feature.
Bow Thruster
Figure 3-34 Bow Thruster
Control Panels for Bow and Stern Thrusters
Control Panel Features:
• Built-in lapse device when reversing the direction of rotation.
• Automatic Switch off after 30 seconds of inactivity.
• In the event of continuous running for more that two minutes there is an LED and buzzer alert,
along with an automatic shut off.
• The panel will reset itself after five seconds.
3-11 3-11
Figure 3-31 Bow Thruster
Systems
