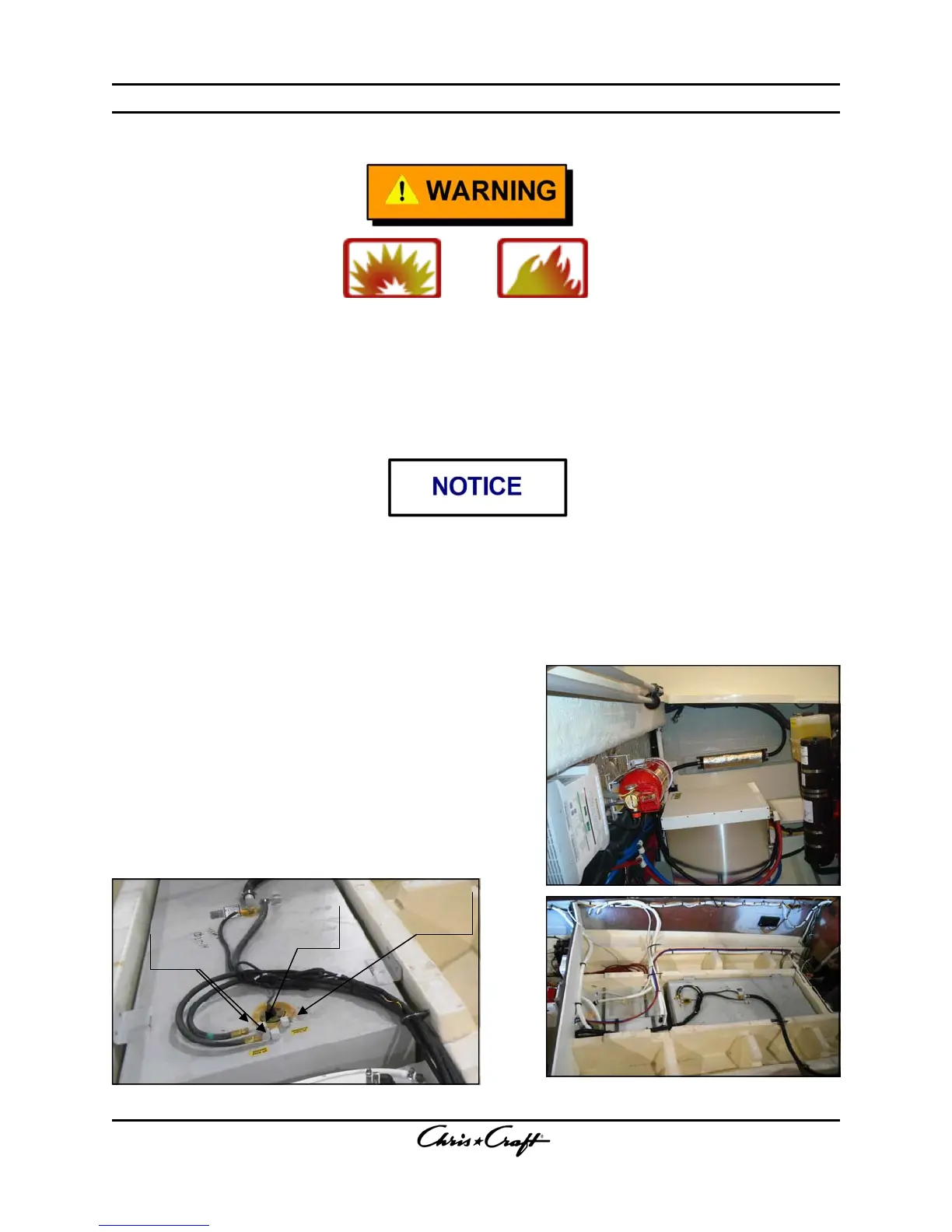

Figure 3-65. Fuel and Vent Hoses
Figure 3-64 Engine and Generator Fuel Pickups
Fuel Systems
Leaking fuel is a fire and explosion hazard. Inspect the system on a regular basis.
Inspect all fittings, valves, filters, hoses, and connections for leaks.
Do not operate the engines if any fuel leak is present.
Do not store fuel or flammable liquids in a closed area.
Explosive vapors may accumulate.
The fuel system is installed and tested in accordance with American
Boat and Yacht Council (ABYC) Standard H-33 and H-24. Only qualified
persons familiar with the practices established in this standard
should make repairs or modifications to the fuel system.
The fuel system is comprised of the following components:
• Fuel Tank and Routing Lines
• Fuel Gauges/Sending Units
• Fuel Shut-off Valves
• Fill Deck Plate
• Fuel Tank Vents
• Fuel Filters
• Fuel Fill Hose
• Fuel Tank Vent Hose
• Engine Fuel Feed Hose
• Fuel Vent Line Carbon Canister
3-36 3-36
Systems
Figure 3-63. Fuel Vent Line Carbon Canister
Generator
Fuel
Pickup
Engine
Fuel
Pickups
Anti
Siphon
Valves
To Next Page
