Chris-Craft Launch 25 User Manual

3–42 Chris-Craft
Systems
The batteries are connect to a battery distribution cluster which support the master battery switches. The
number of switches in the cluster will vary depending upon the number of batteries in the boat. Figure 3-32
illustrates a typical two battery switch cluster.
The battery distribution cluster may also contain the Emergency Parallel switch. Activating this switch
links all the batteries together to provide extra current should one battery become depleted.

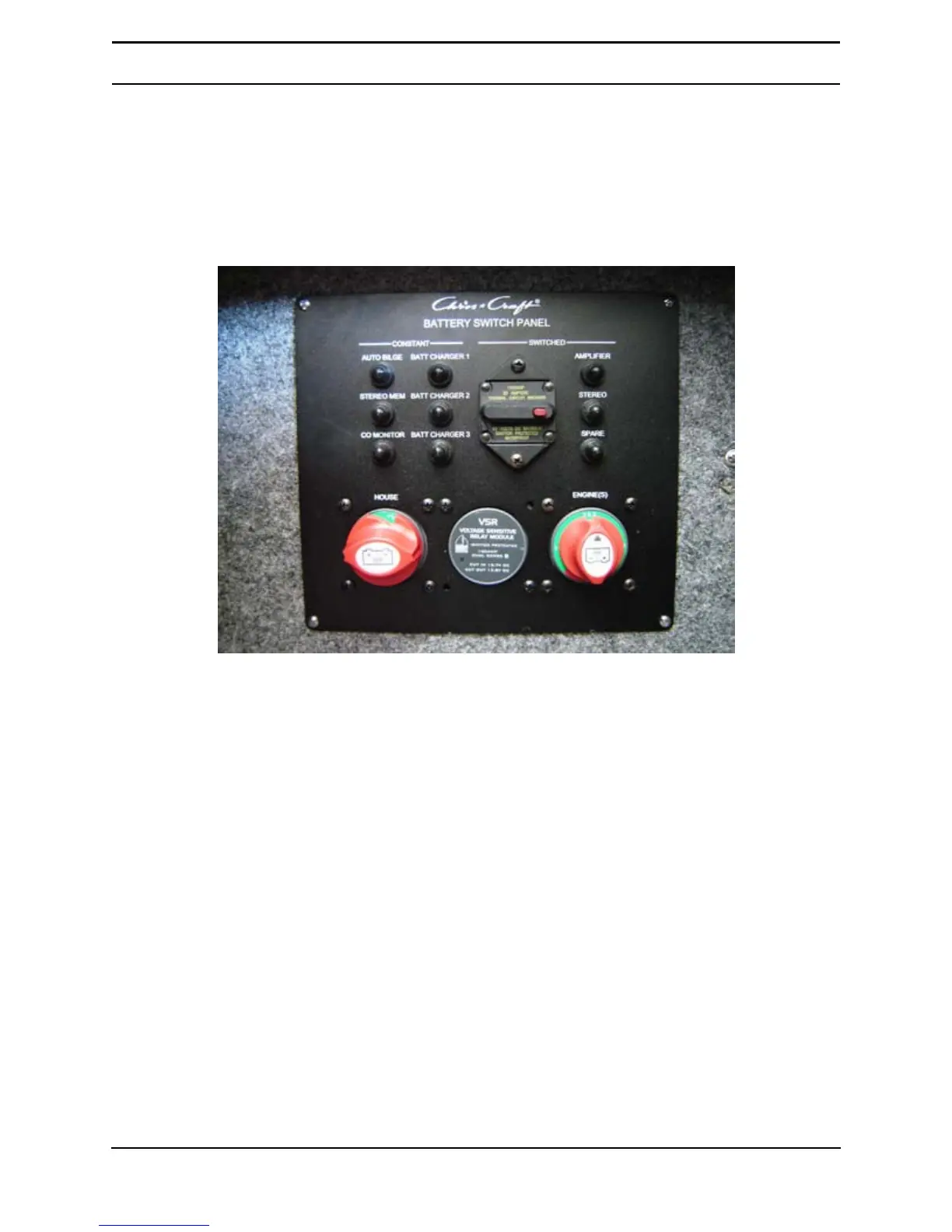

Figure 3-32. Two Battery Switch Cluster

Chris-Craft Launch 25 Specifications

General

Beam	8 ft 6 in
Fuel Capacity	75 gal (284 L)
Water Capacity	12 gal (45 L)
Maximum Capacity	10 persons
Hull Material	Fiberglass
Passenger Capacity	10 persons
Engine Options	Single or twin engines
