Chris King R45 - Rear Hub Large Hubshell Bearing and Ringdrive Reassembly

Rear hub large hubshell bearing and RingDrive reassembly
R45 tool setup for rear large hubshell bearing and RingDrive
reassembly

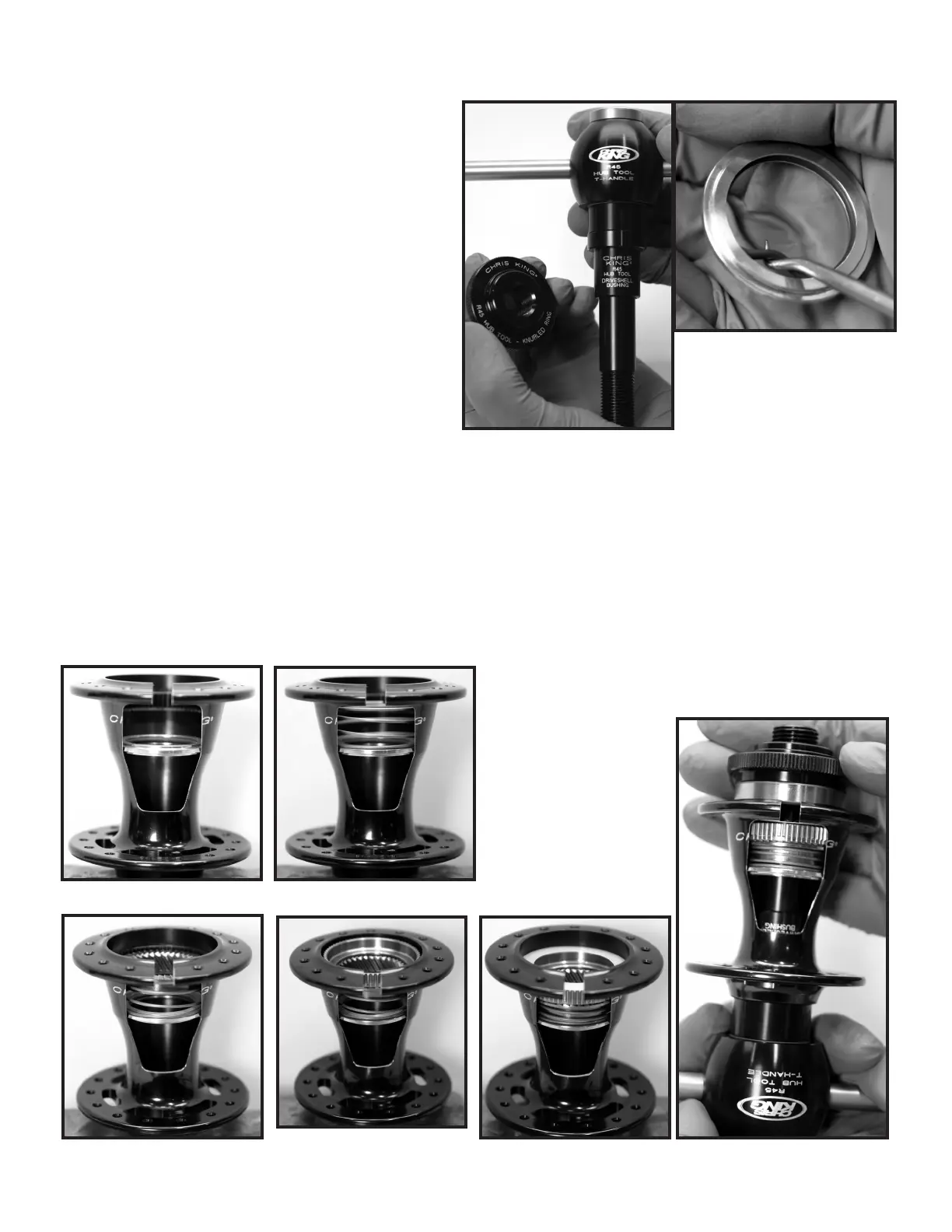

Slide driveshell bushing onto T-
handle with larger side facing thrust
collar.
Be sure that spring retainer O-ring is
installed in inner diameter of spring
retainer. Apply a drop of light chain
lube (Tri-Flow™, etc) to spring retainer
O-ring. Insert spring retainer into
driveside of hubshell.
Insert spring into hubshell.
Insert drive ring into hubshell with
engagement teeth facing up.
Insert driven ring into hubshell with
engagement teeth facing down.
Line up splines on outside of
driven ring with splines on interior
of hubshell. Gently press down on
driven ring until it is firmly seated inside of hubshell spline interface.
Insert white inner seal into hubshell.
Invert T-handle and slide T-handle through non-driveside of hubshell assembly so
that driveside is facing up. Invert T-handle and slide T-handle through non-driveside
of hubshell assembly so that driveside is facing up.
1.
2.
3.
4.
5.
6.
7.
8.
2. spring retainer
3. spring
4. drive ring
5/6. driven ring
7. inner seal
2.Be sure that the
spring retainer O-ring
is installed
1. Sl id e dri ves he ll
bushing.
8.Invert T-handle
