Chromalox 1603 User's Manual 7
General Operation
There are two setup modes for the 1603:
Configuration Mode
Operator Mode
In general, the Configuration Mode is the initial setup of
the controller when first installed. Input type and alarm
setup are examples of Configuration Mode settings. The
Operator Mode includes settings that might be adjusted
frequently with daily control operations such as setpoints
and PID parameters.
Pushbutton Functionality
During Configuration Procedure
FUNC = Must be pressed to store the new value of a
selected parameter and increments to the
next parameter.
SMART= In configuration Mode, scrolls parameters
back (in reverse order) without storing the
new parameter value.
= Increases the value of the selected parameter .
= Decreases the value of the selected parameter.
Configuration Procedure
1. Remove the controller from its case.
2. Set the internal switch V2 (see Fig. 9) in open
condition.
3. Reinsert the controller in the case.
4. Switch the controller “ON”.
Note: If “CAL” indication is immediately displayed,
press the pushbutton to return to the configuration
mode “CnF.”
5. Push the FUNC pushbutton. The lower display will
show the parameter alphanumeric and the upper
display will show the parameter value.
+
+
1
3
4
2
PZ3
PZ4
PZ5
V2
B
L4
C6
C10
C5
C8
L3
L2
C7
R7
R8
J6
J5
2
C14
C2
R4
R5
R11
Q2
R3
PZ2
PZ1
C15
K2
C9

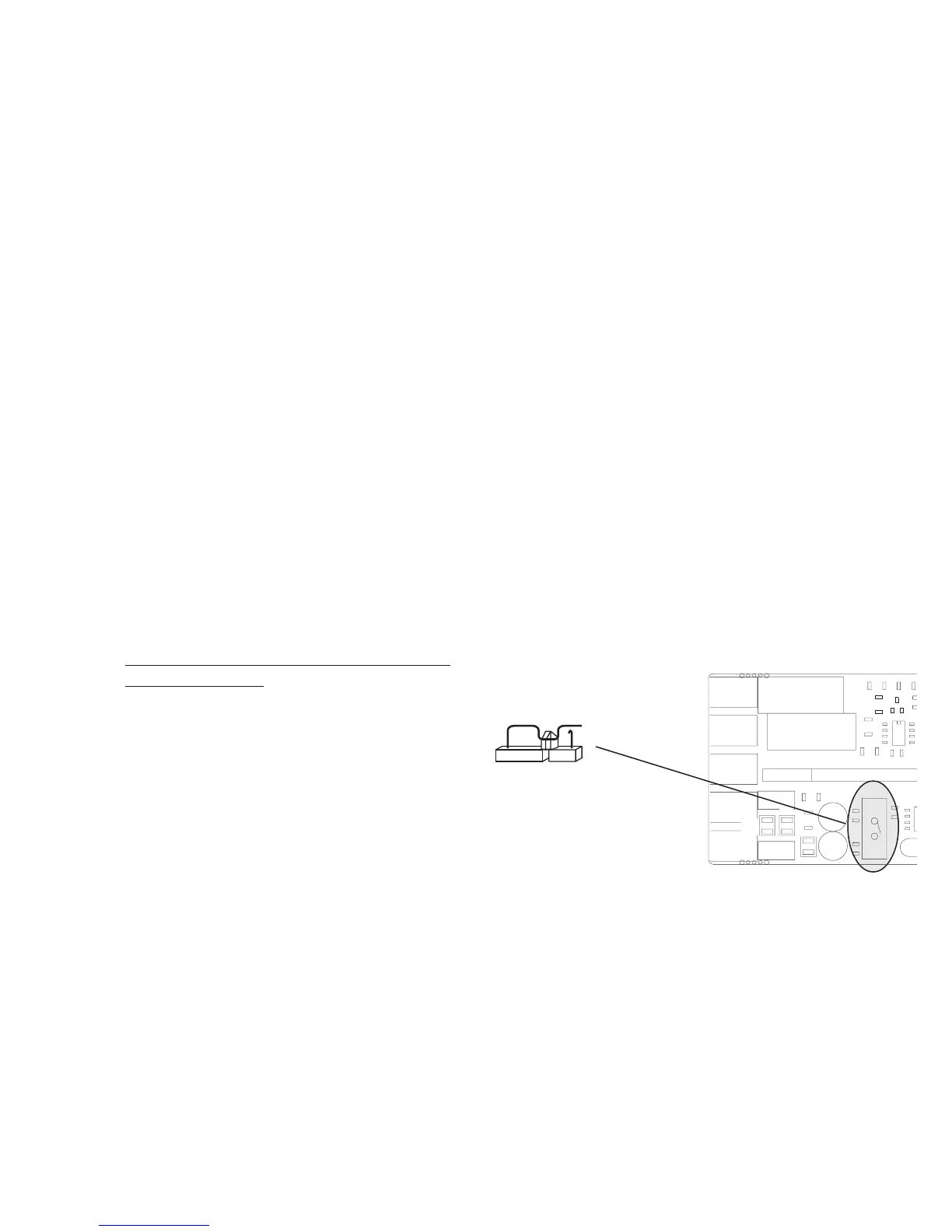

Figure 9
