Chromalox 2104 - Mounting Dimensions; Mounting Diagram

Chromalox 2104 Technical Manual 5
4.0
(102)
Measurements are shown in inches. Millimeters are shown in parentheses.
3.5
(90)
3.6
(92)
3.6
(92)
3.8
(96)
3.8
(96)

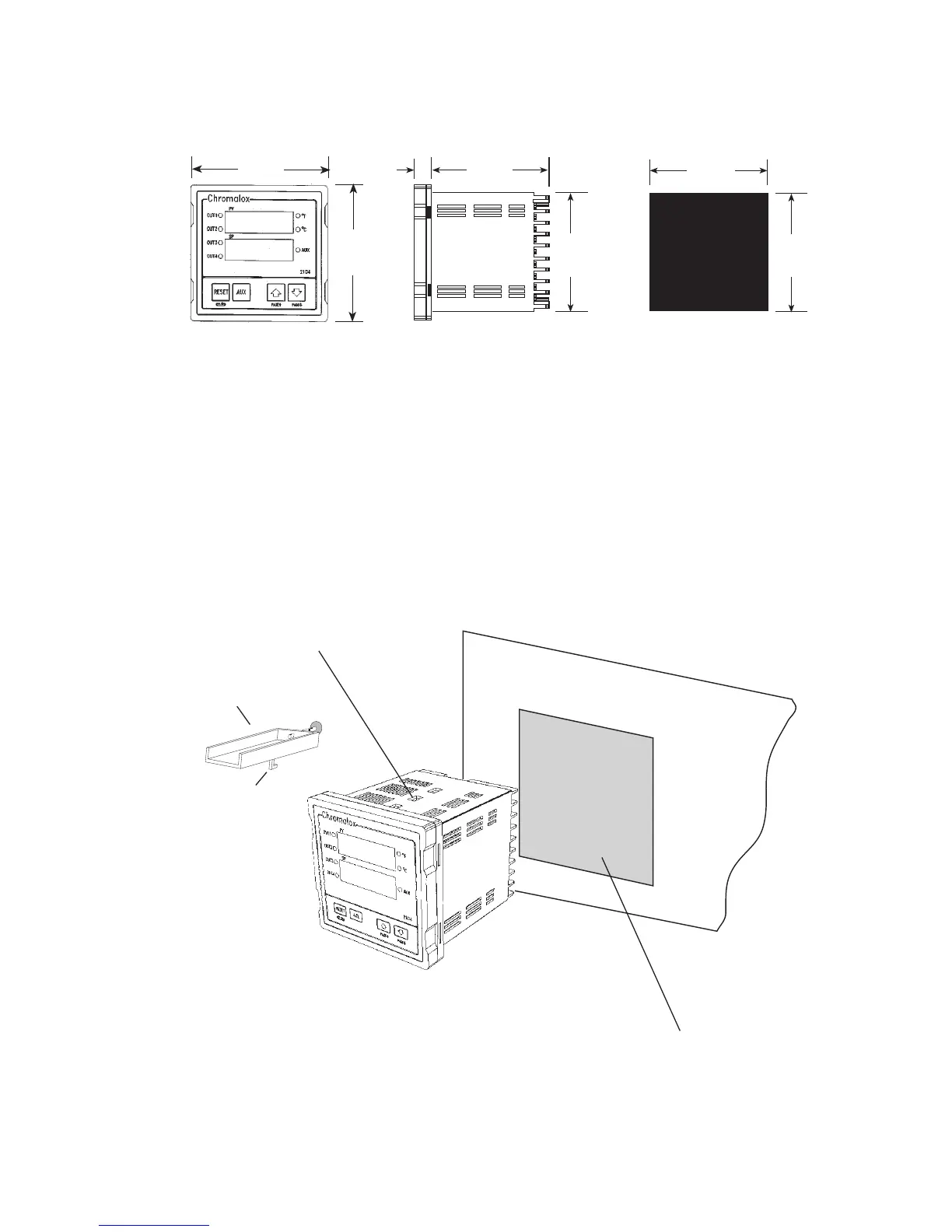

Figure 2.2 Mounting Dimensions
0.8
(19)
Figure 2.3 Mounting Diagram
Panel Cutout
Mounting Hole
Mounting Tab
Mounting Clip
