4WD LOW
The 4-Wheel Drive Low (4WD LOW) Range provides
low speed 4-wheel drive. It locks the front and rear
driveshafts together, forcing the front and rear wheels to
rotate at the same speed. This range provides additional
traction and maximum pulling power for loose or slip-
pery road surfaces only. Do not exceed 25 mph (40
km/h).
N
The NEUTRAL ranged disengages both the front and
rear driveshafts from the powertrain. NEUTRAL is used
for flat towing behind another vehicle. Refer to “Recre-
ational Towing” in Section 5.

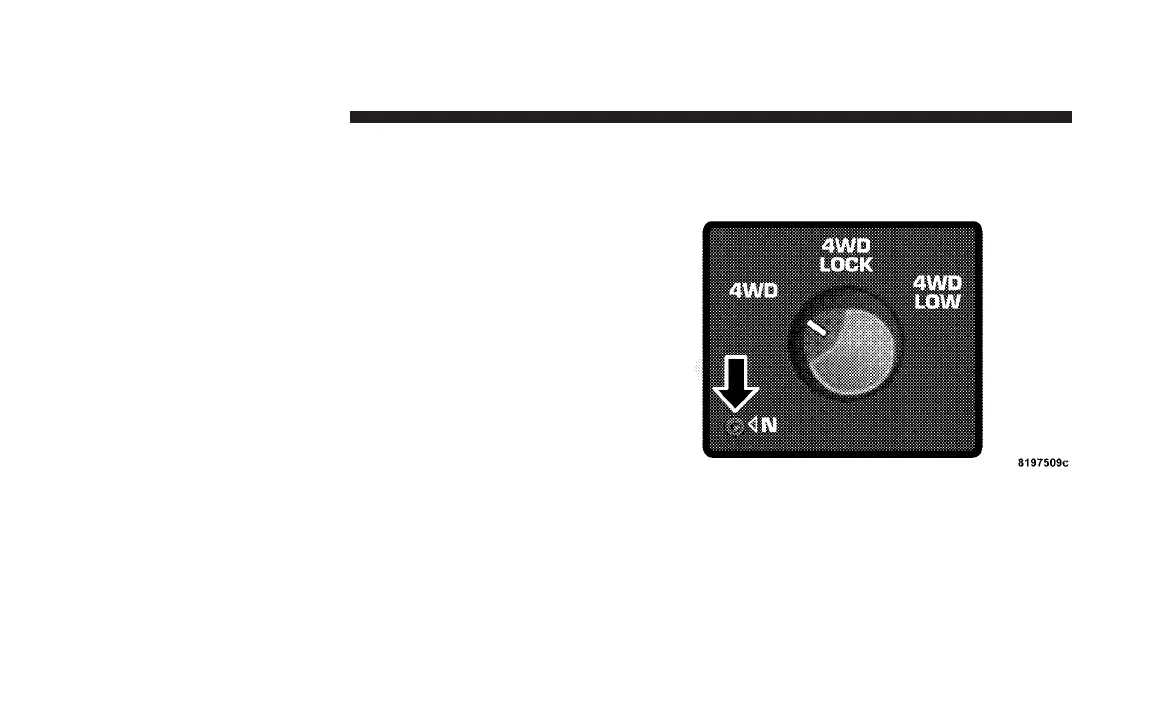

Shifting Procedure - NV 244 Generation II
Transfer Case
NOTE: The 4x4 system will not allow shifts between
4WD/4WD LOCK if the rear wheels are spinning (no
traction). In this situation, a position indicator light will
flash and the original position indicator light will remain
on. At this time, reduce speed and stop spinning the
284 STARTING AND OPERATING
