GETTING TO KNOW YOUR VEHICLE 11
2. Check to see if the charging cordset is ready
to charge by reviewing the indicator lights.
After a brief self-check, where the indicator
lights will flash, a green AC Power indicator
light and two green Charge Active indicator
lights indicate that the cordset is ready for
use.

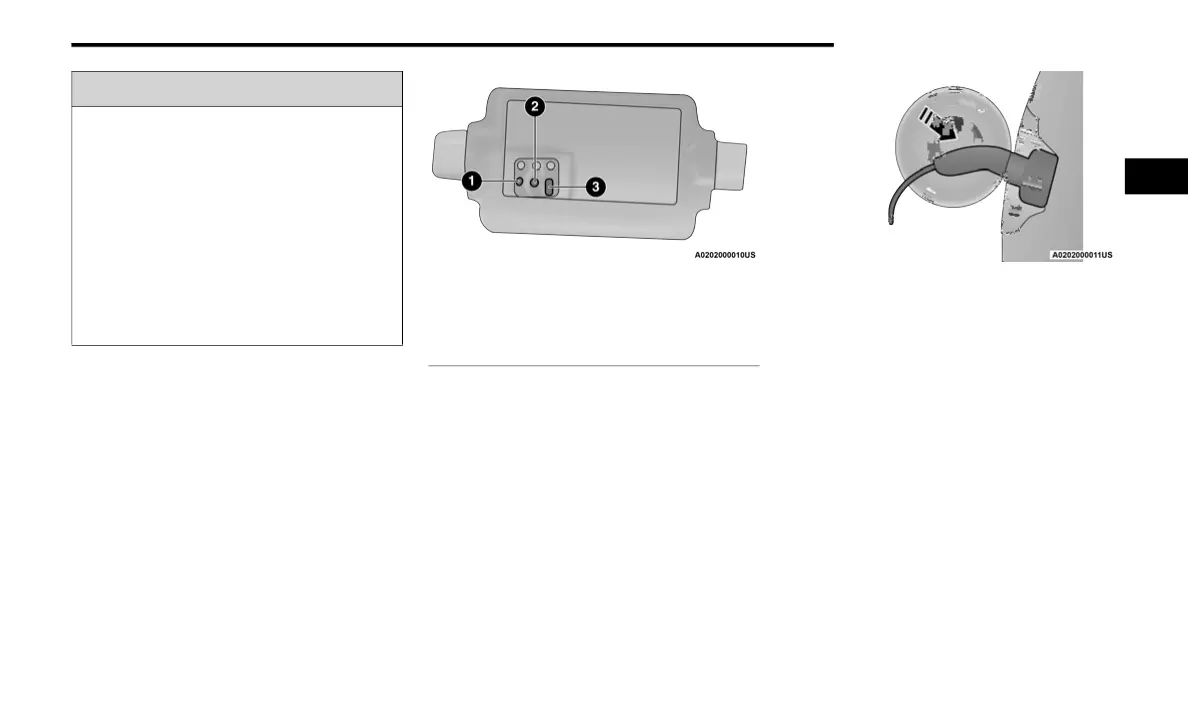

Cordset Indicator Lights
3. If the charging cordset is ready to charge,
ensure the vehicle is in PARK, and then
connect the charge connector to the
vehicle’s charge inlet. You will hear a “click”
when the charge connector is inserted
correctly and coupled with the vehicle’s
charge inlet.
Inserting The Charge Connector Into The Vehicle
Charge Inlet
4. When the vehicle commences charging, the
Charge Active indicator lights on the EVSE
will cycle from left to right, and then both
turn off. This pattern will repeat while the
vehicle is charging. The lights are
illuminated at the rate of approximately one
cycle per second.
WARNING!
INSTRUCTIONS PERTAINING TO A RISK OF
FIRE OR ELECTRIC SHOCK: Improper
connection of the equipment-grounding
conductor could result in a risk of electric
shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether
the wall receptacle is properly grounded. Do
not modify the plug provided with the product
– if it does not fit the outlet, you must have a
proper outlet installed by a qualified
electrician.
1 — AC Power Indicator Light
2 — Fault Indicator Light
3 — Charge Active Indicator Lights
2
