76 SERVICING AND MAINTENANCE

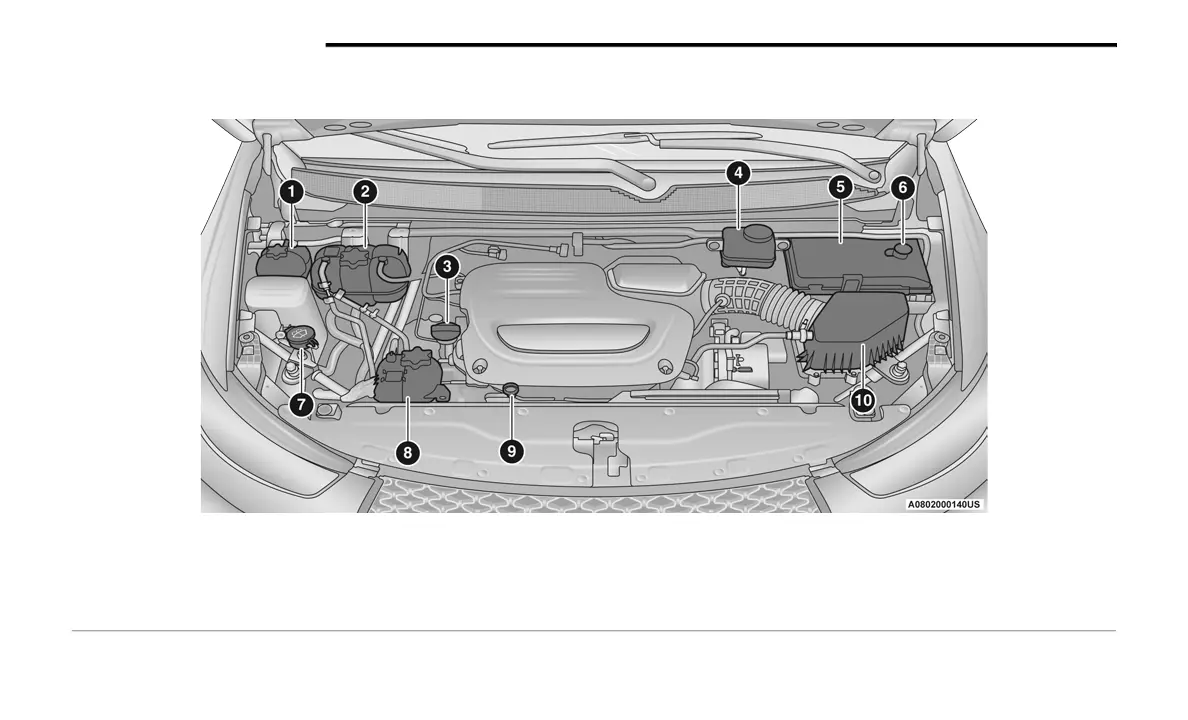

ENGINE COMPARTMENT — HYBRID
1 — Battery Coolant Reservoir
1
1. See an authorized dealer for service.
6 — Remote Jump Start Positive Terminal
2 — Engine Coolant Pressure Reservoir 7 — Washer Fluid Reservoir Cap
3 — Engine Oil Fill 8 — Power Electronics Coolant Reservoir
1
4 — Brake Fluid Reservoir 9 — Engine Oil Dipstick
5 — Power Distribution Center (Fuses) 10 — Engine Air Cleaner Filter
21_RU2_H_SU_EN_USC_t.book Page 76
