INSTRUMENT CLUSTER DESCRIPTIONS
1. % Power Gauge
Indicates vehicle power. The upper half of
the gauge is a summation of the engine
and high voltage battery power applied to
move the vehicle. Bottom half indicates
when the high voltage battery is charging
via regenerative braking, while slowing
the vehicle down.
2. Instrument Cluster Display
The instrument cluster display features a
driver interactive display. When the
appropriate conditions exist, this display
shows messages Ú page 34.

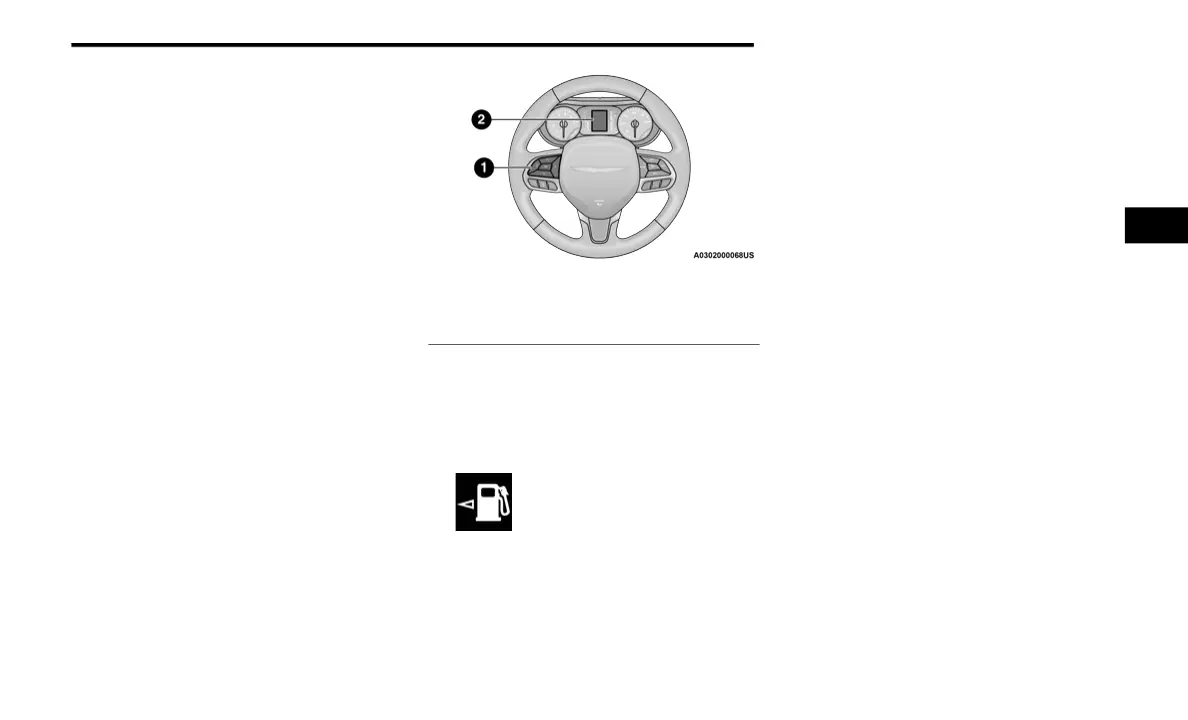

Instrument Cluster Display Location And Controls
3. Fuel Gauge
The gauge shows the level of fuel in the
fuel tank when the ignition switch is in
the ON/RUN position.
The fuel pump symbol points to
the side of the vehicle where the
fuel door is located.
4. Right Reconfigurable Screen With Four
Customer Programmable Options
EV Range & Battery %: shows values for
electric range and battery %, along with a
teal gauge showing battery % (state of
charge <1 to 100%).
Electric Range: shows the vehicle’s elec-
tric range capability, based on the High
Voltage Battery State of Charge (state of
charge <1 to 100%).
All Range Values: shows values for elec-
tric, hybrid and total range, along with a
white gauge showing the total range.
NONE
1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen
3
